3/8 inch EK-163 F liquid line filter drier : SEK-009

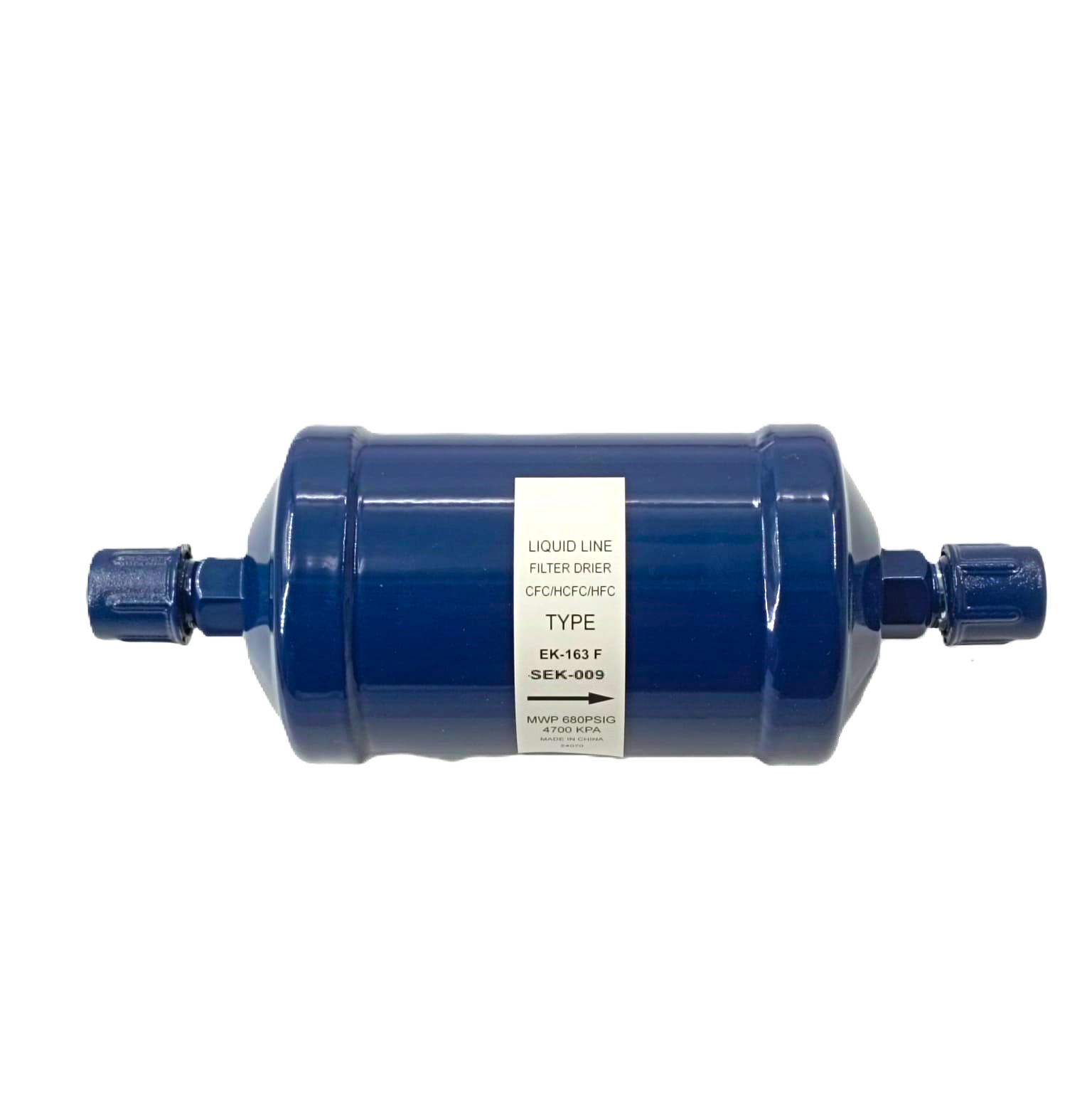

This is an EK-163 F (SEK-009) liquid line filter drier. This model combines a standard 3/8″ connection with a high-capacity 16-cubic-inch body, making it a very common choice for residential and light commercial AC units.
Core Specifications
- Model: EK-163 F (SEK-009)
- Connection Size: 3/8 inch (9.5 mm).
- Connection Type: Flare (SAE), featuring threaded nuts for a mechanical connection.
- Internal Volume: 16 cubic inches. This “16” series provides significantly more filtration area and moisture capacity than the smaller “08” series.
- Max Working Pressure: 680 PSIG (4700 KPA).
Key Features
- High Capacity: Designed for systems where extra moisture or acid removal is needed, providing longer protection for the compressor.
- Universal Refrigerant Use: Compatible with R-22, R-134a, R-404A, R-407C, R-410A, and R-507.
- Build Quality: Features a steel shell with corrosion-resistant paint and a highly effective bead desiccant core.
