1/4 inch.EK-082S Liquid Line Filter Drier : SEK-005-1

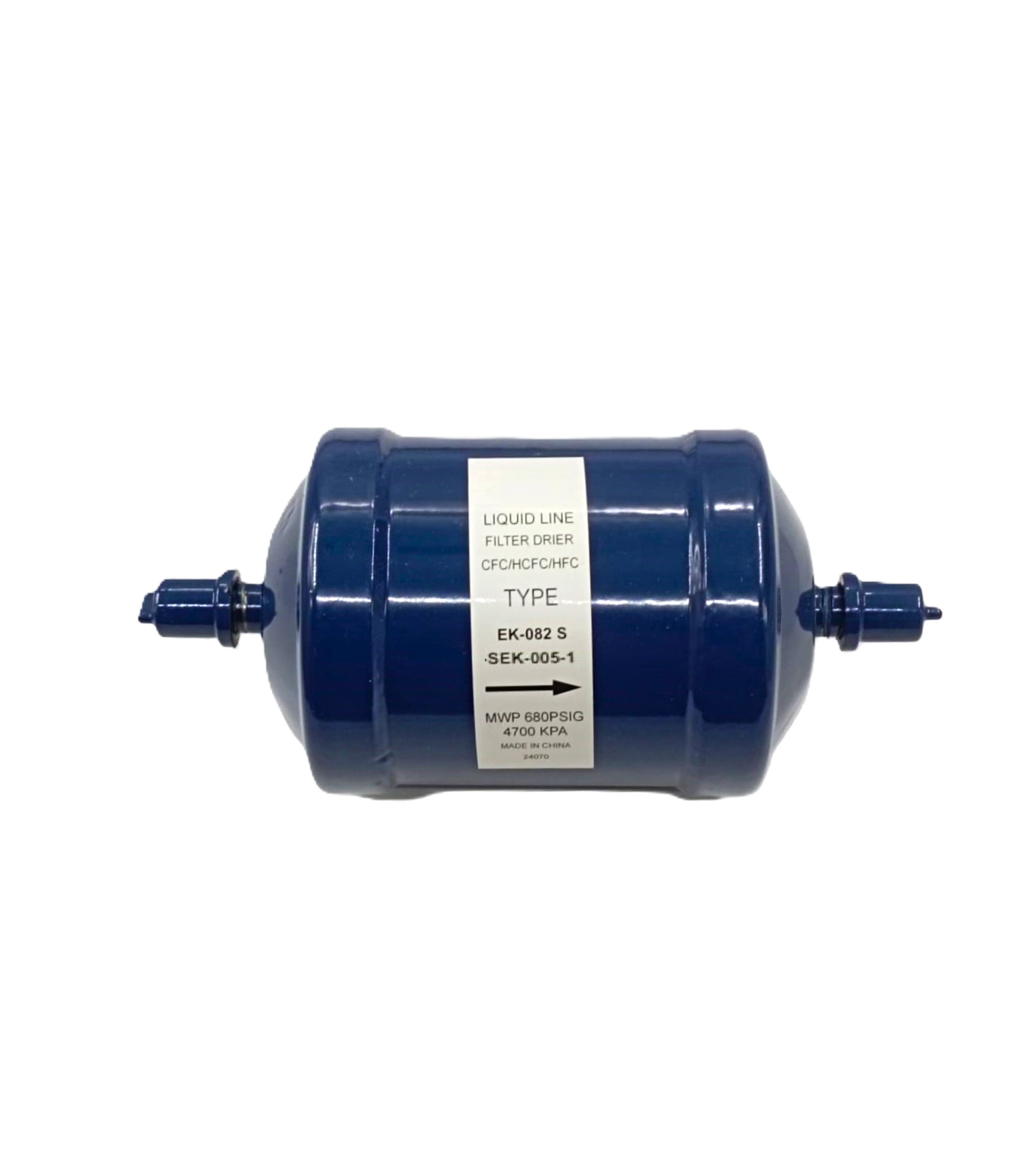

The product in the image is a Liquid Line Filter Drier, specifically model EK-082S
(SEK-005-1) This component is a critical protection device for HVAC and refrigeration systems, designed to remove moisture, acid, and solid debris from the refrigerant circuit.
(SEK-005-1) This component is a critical protection device for HVAC and refrigeration systems, designed to remove moisture, acid, and solid debris from the refrigerant circuit.
Technical Specifications
Standard industry specifications for the EK-082S
model include:
model include:
- Connection Size: 1/4 inch.
- Connection Type: Solder/Sweat ODF (indicated by the “S” suffix).
- Desiccant Volume: 8 cubic inches.
- Filtration Rating: 20 microns for effective particle removal.
- Max Working Pressure: 680 PSIG (4700 kPa).
- Refrigerant Compatibility: Universal for CFC, HCFC, and HFC refrigerants, including R-22, R-134a, R-410A, and R-404A.
Description
Description
The product in the image is a Liquid Line Filter Drier, specifically model EK-082S
(SEK-005-1) This component is a critical protection device for HVAC and refrigeration systems, designed to remove moisture, acid, and solid debris from the refrigerant circuit.
(SEK-005-1) This component is a critical protection device for HVAC and refrigeration systems, designed to remove moisture, acid, and solid debris from the refrigerant circuit.
Technical Specifications
Standard industry specifications for the EK-082S
model include:
model include:
- Connection Size: 1/4 inch.
- Connection Type: Solder/Sweat ODF (indicated by the “S” suffix).
- Desiccant Volume: 8 cubic inches.
- Filtration Rating: 20 microns for effective particle removal.
- Max Working Pressure: 680 PSIG (4700 kPa).
- Refrigerant Compatibility: Universal for CFC, HCFC, and HFC refrigerants, including R-22, R-134a, R-410A, and R-404A.
