1/4 inch EK-162 F liquid line filter drier : SEK-008

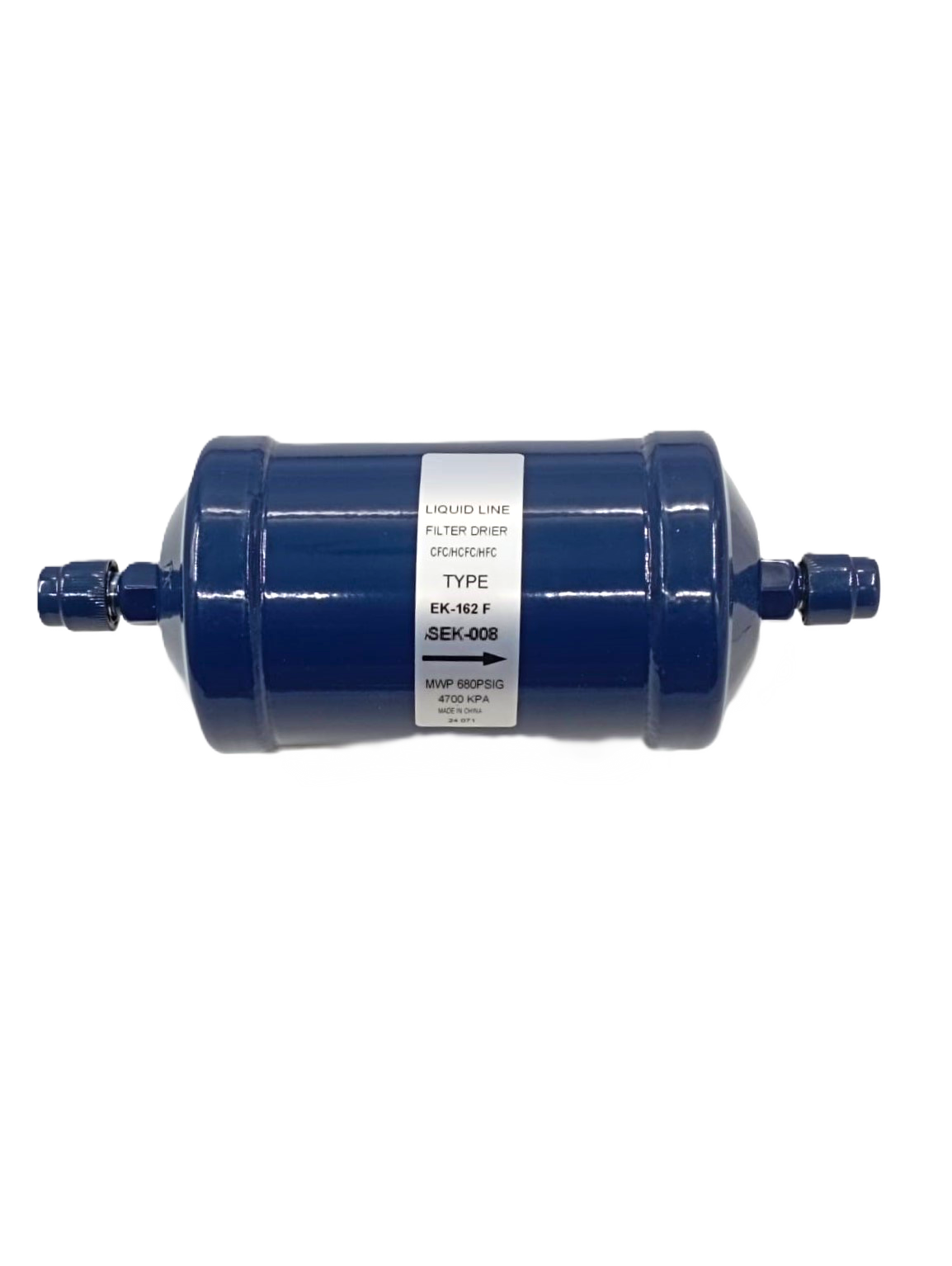

This is an EK-162 F (SEK-008) liquid line filter drier. Compared to the previous ones we discussed, this model has a much higher filtration capacity in a smaller connection size.
Core Specifications
- Model: EK-162 F (SEK-008)
- Connection Size: 1/4 inch (6.35 mm).
- Connection Type: Flare (SAE), which uses threaded nuts for installation.
- Capacity: 16 cubic inches (internal volume). This provides double the filtration and moisture-holding capacity of the “08” series (like the EK-083 or EK-084).
- Maximum Working Pressure: 680 PSIG (4700 KPA).
Key Features
- Enhanced Filtration: The larger “16” series body is designed for systems that require more moisture and acid removal or for longer life between maintenance cycles.
- Refrigerants: Fully compatible with common refrigerants like R-22, R-134a, R-404A, R-407C, R-410A, and R-507.
Description
Description
This is an EK-162 F (SEK-008) liquid line filter drier. Compared to the previous ones we discussed, this model has a much higher filtration capacity in a smaller connection size.
Core Specifications
- Model: EK-162 F (SEK-008)
- Connection Size: 1/4 inch (6.35 mm).
- Connection Type: Flare (SAE), which uses threaded nuts for installation.
- Capacity: 16 cubic inches (internal volume). This provides double the filtration and moisture-holding capacity of the “08” series (like the EK-083 or EK-084).
- Maximum Working Pressure: 680 PSIG (4700 KPA).
Key Features
- Enhanced Filtration: The larger “16” series body is designed for systems that require more moisture and acid removal or for longer life between maintenance cycles.
- Refrigerants: Fully compatible with common refrigerants like R-22, R-134a, R-404A, R-407C, R-410A, and R-507.
