105W.12MM. Washing Machine Spin Motor: WSM-006

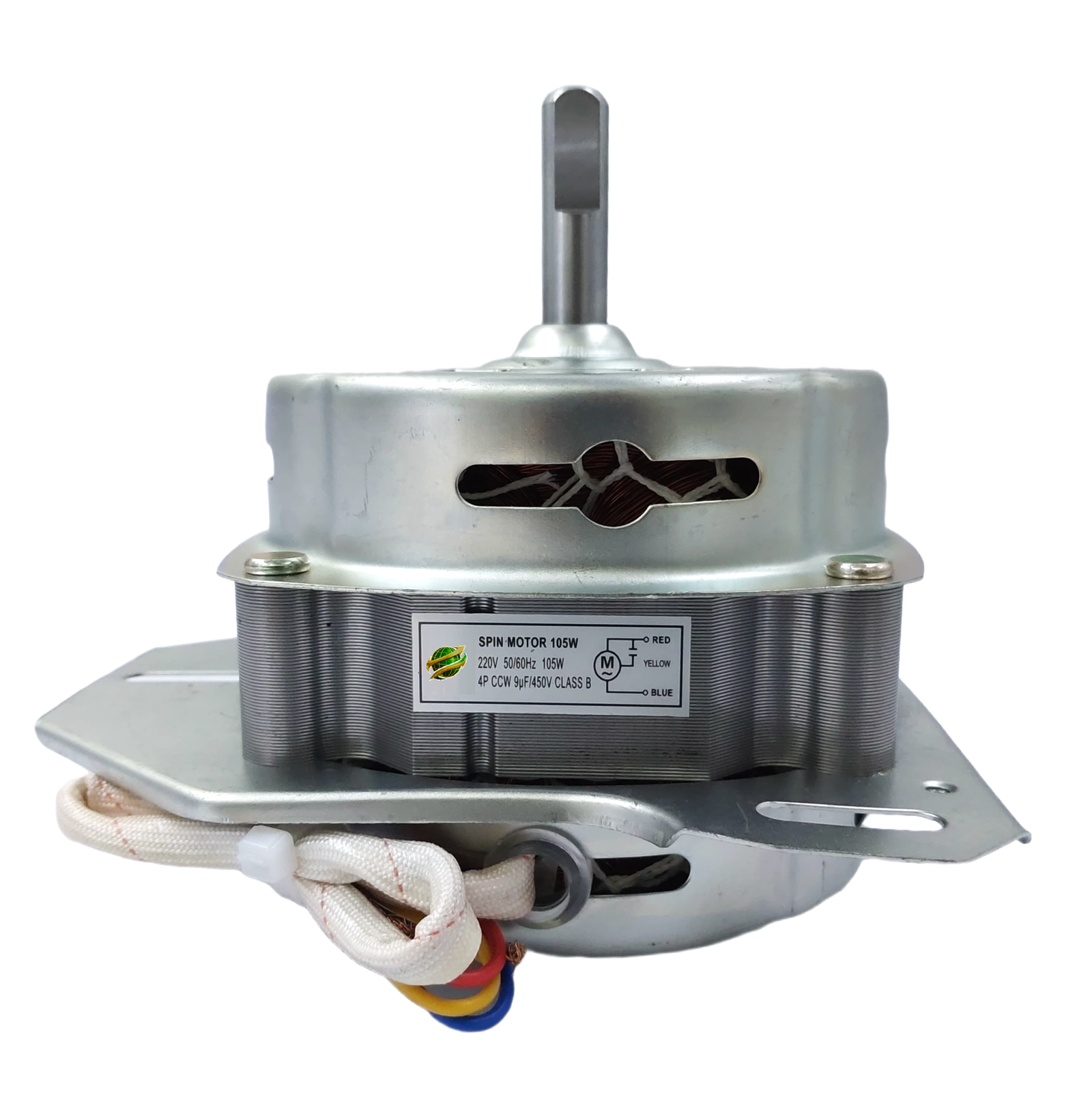

The image shows an WSM-006 Spin Motor, a high-performance replacement part specifically designed for larger twin-tub washing machines, particularly those modeled after LG systems.
🔍 Technical Specifications
- Model Number: WSM-006
- Power Output: 105W (High performance for heavy loads)
- Shaft Diameter: 12mm
- Voltage: 220V AC
- Frequency: 50/60Hz
- Capacitor Requirement: 8μF / 450V
- Insulation Class: Class B
- Pole Count: 4P
📋 Key Features
- LG Compatibility: The 12mm shaft and specific mounting plate design are common features for LG-style spin tubs.
- Build Quality: Visible copper windings through the motor vents ensure better heat dissipation and durability.
- Wiring Color Code:
- 🔴 Red: Main
- 🟡 Yellow: Capacitor
- 🔵 Blue: Common
Description
Description
The image shows an WSM-006 Spin Motor, a high-performance replacement part specifically designed for larger twin-tub washing machines, particularly those modeled after LG systems.
🔍 Technical Specifications
- Model Number: WSM-006
- Power Output: 105W (High performance for heavy loads)
- Shaft Diameter: 12mm
- Voltage: 220V AC
- Frequency: 50/60Hz
- Capacitor Requirement: 8μF / 450V
- Insulation Class: Class B
- Pole Count: 4P
📋 Key Features
- LG Compatibility: The 12mm shaft and specific mounting plate design are common features for LG-style spin tubs.
- Build Quality: Visible copper windings through the motor vents ensure better heat dissipation and durability.
- Wiring Color Code:
- 🔴 Red: Main
- 🟡 Yellow: Capacitor
- 🔵 Blue: Common
