150W 12mm Washing Machine Wash Motor: WWM-012

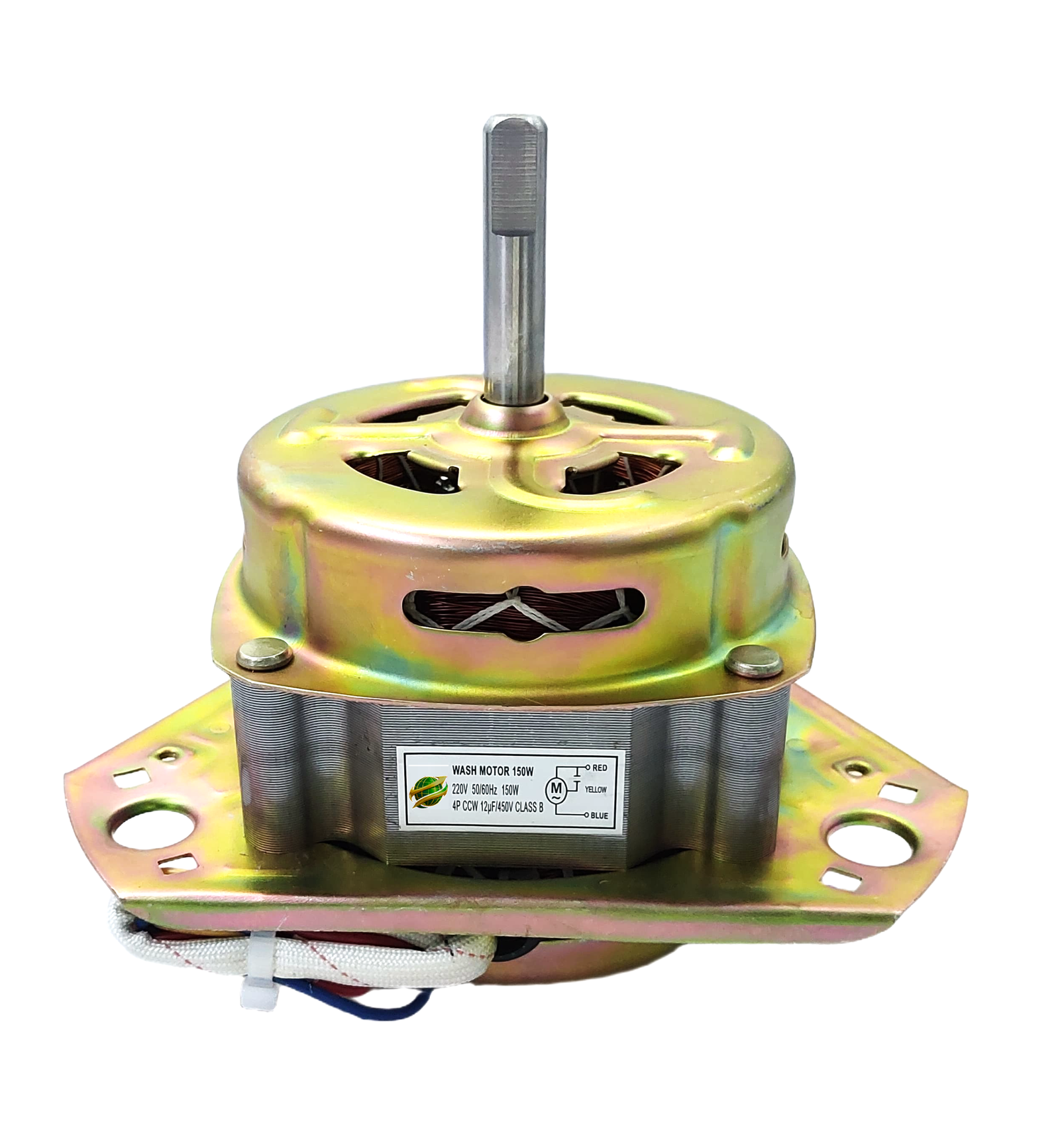

This image shows an WWM-012 Washing Machine Wash Motor, a replacement part distributed.
🛠️ Technical Specifications
Based on the product label and description:
- Power Output: 150W
- Shaft Diameter: 12mm
- Voltage/Frequency: 220V–240V / 50Hz
- Capacitor Requirement: 11.5UF / 450V Class B (as shown on the motor label).
- Current: ~1.56A [4, 8].
- Rotation Speed: Standard for this class is 1350 RPM
- Rotation Direction: CCW (Counter-Clockwise).
🔍 Key Features
- Build: “Golden” finish on the metallic housing for enhanced corrosion resistance.
- Mounting: Universal triangular base designed for easy installation in most semi-automatic top-loading washing machines
- Wiring: Includes a standard three-wire harness (typically Yellow, Blue, and White/Red) for connection to the washer’s timer and capacitor.
🔌 Wiring Information (Per Label)
- Yellow (M): Common/Main connection.
- Blue/White: Capacitor connections.
Would you like to find a compatible capacitor or see a wiring diagram for this specific motor?
Description
Description
This image shows an WWM-012 Washing Machine Wash Motor, a replacement part distributed.
🛠️ Technical Specifications
Based on the product label and description:
- Power Output: 150W
- Shaft Diameter: 12mm
- Voltage/Frequency: 220V–240V / 50Hz
- Capacitor Requirement: 11.5UF / 450V Class B (as shown on the motor label).
- Current: ~1.56A [4, 8].
- Rotation Speed: Standard for this class is 1350 RPM
- Rotation Direction: CCW (Counter-Clockwise).
🔍 Key Features
- Build: “Golden” finish on the metallic housing for enhanced corrosion resistance.
- Mounting: Universal triangular base designed for easy installation in most semi-automatic top-loading washing machines
- Wiring: Includes a standard three-wire harness (typically Yellow, Blue, and White/Red) for connection to the washer’s timer and capacitor.
🔌 Wiring Information (Per Label)
- Yellow (M): Common/Main connection.
- Blue/White: Capacitor connections.
Would you like to find a compatible capacitor or see a wiring diagram for this specific motor?
