200W.10MM. Washing Machine Motor Golden: WWM-014

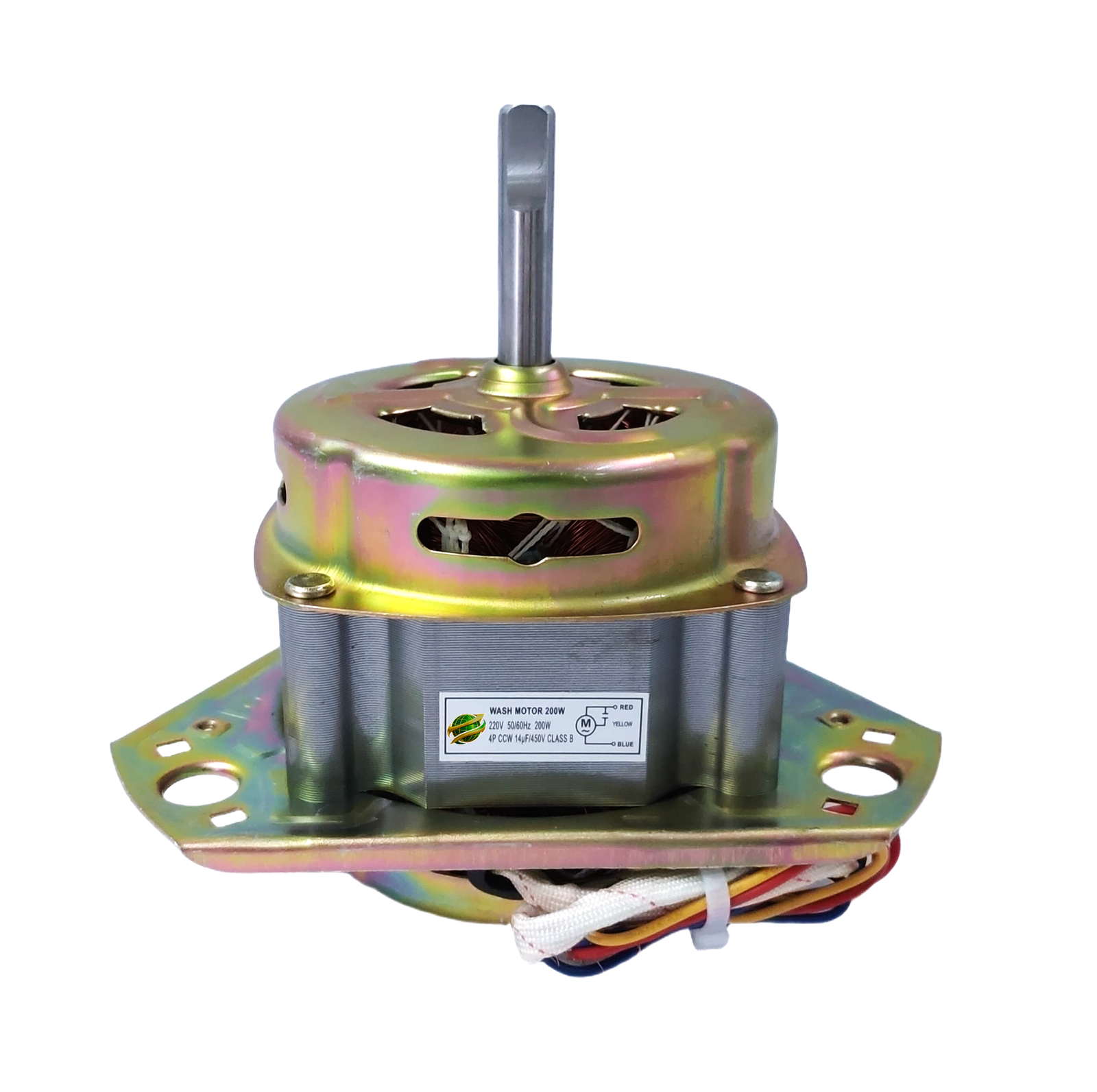

This image shows an WWM-014 Washing Motor Golden, a high-capacity replacement motor.
🛠️ Technical Specifications Based on the product label and description.
- Model Number: WWM-014.
- Power Output: 200W.
- Shaft Diameter: 10mm.
- Voltage/Frequency: 220V / 50Hz/60Hz.
- Capacitance: 14UF / 450V Class B.
- Rotation: 4P CCW (Counter-Clockwise).
🔍 Key Features
- Build Quality: Features a robust “Golden” anti-corrosive coating on the metal housing to withstand humidity.
- Compatibility: Designed with a universal triangular mounting base for easy installation in top-loading, semi-automatic washing machines.
- Performance: A high-wattage (200W) motor suitable for heavy-duty wash loads.
🔌 Wiring Schematic (Per Label)
- Red: Main power line.
- Yellow: Capacitor connection.
- Blue: Capacitor and line connection.
Description
Description
This image shows an WWM-014 Washing Motor Golden, a high-capacity replacement motor.
🛠️ Technical Specifications Based on the product label and description.
- Model Number: WWM-014.
- Power Output: 200W.
- Shaft Diameter: 10mm.
- Voltage/Frequency: 220V / 50Hz/60Hz.
- Capacitance: 14UF / 450V Class B.
- Rotation: 4P CCW (Counter-Clockwise).
🔍 Key Features
- Build Quality: Features a robust “Golden” anti-corrosive coating on the metal housing to withstand humidity.
- Compatibility: Designed with a universal triangular mounting base for easy installation in top-loading, semi-automatic washing machines.
- Performance: A high-wattage (200W) motor suitable for heavy-duty wash loads.
🔌 Wiring Schematic (Per Label)
- Red: Main power line.
- Yellow: Capacitor connection.
- Blue: Capacitor and line connection.
