22W.220V.1800 – 2000 RPM.Refrigeration Cross Flow Fan. WB-003

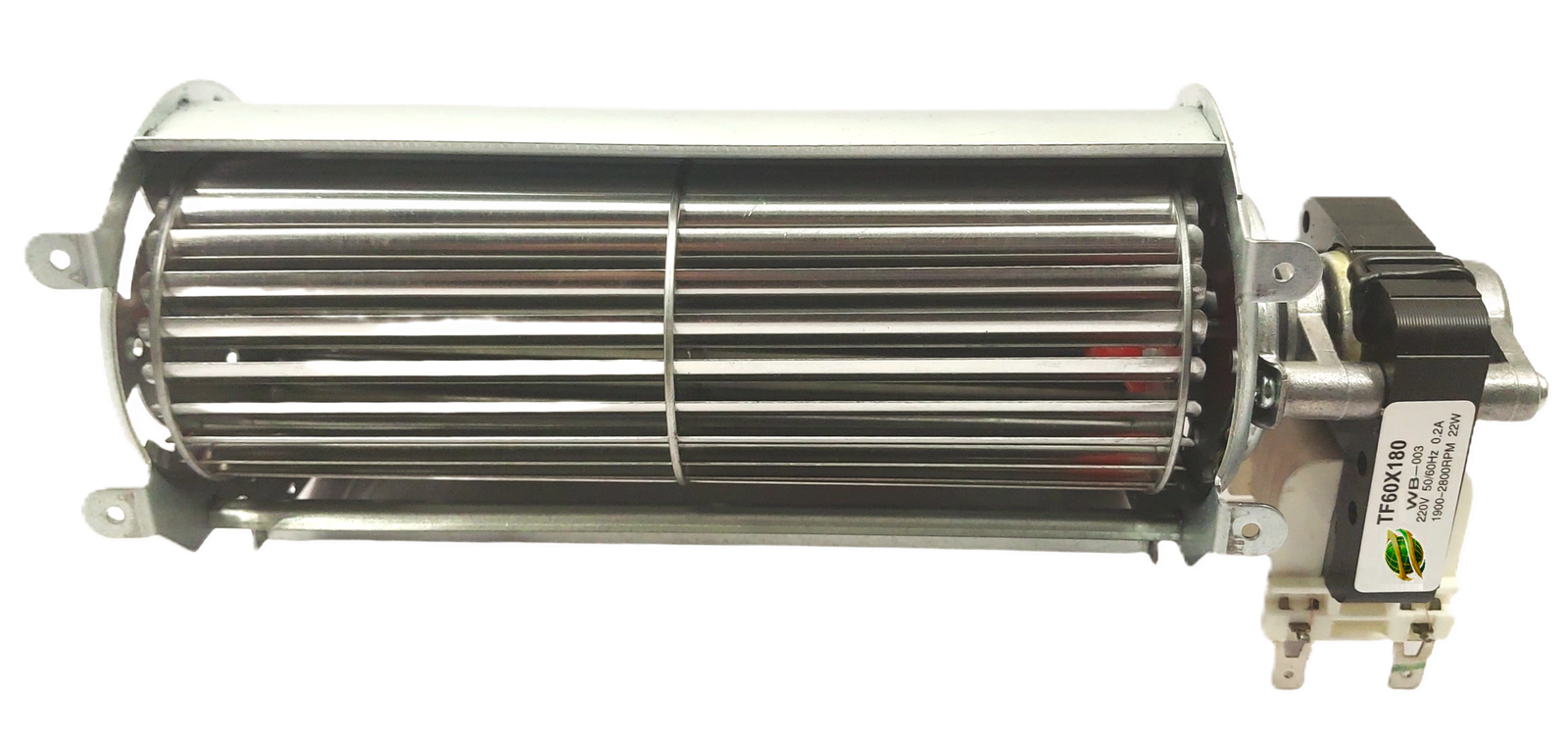

This device is an WB-003 Refrigeration Cross Flow Fan (also known as a tangential or wind blower fan). It is a specialized component used in commercial cooling systems to provide a broad, uniform curtain of air.
Technical Specifications
Based on the physical label and model code (TF60X180) shown in the image:
- Model Number: WB-003 / TF60X180.
- Power Output: 22W.
- Voltage: 220V AC (50/60Hz).
- Current: 0.2A (Note: The text overlay “2.20A” is likely a typo; 0.2A is standard for this power rating).
- Rotational Speed: 1800 – 2000 RPM.
- Impeller Dimensions: 60mm diameter x 180mm length.
- Motor Position: Right-hand side (as viewed from the front).
Core Function & Construction
- Airflow Pattern: Unlike standard circular fans, this “drum” style fan pulls air in across its entire width and discharges it in a flat, rectangular pattern. This is ideal for cooling long evaporator coils or creating an air barrier at a door.
- Materials: Built with a lightweight aluminum alloy impeller for quiet operation and a galvanized steel frame to resist rust in moist refrigerator environments.
- Electrical Connection: Uses standard male Faston (spade) connectors for easy installation.
Description
Description
This device is an WB-003 Refrigeration Cross Flow Fan (also known as a tangential or wind blower fan). It is a specialized component used in commercial cooling systems to provide a broad, uniform curtain of air.
Technical Specifications
Based on the physical label and model code (TF60X180) shown in the image:
- Model Number: WB-003 / TF60X180.
- Power Output: 22W.
- Voltage: 220V AC (50/60Hz).
- Current: 0.2A (Note: The text overlay “2.20A” is likely a typo; 0.2A is standard for this power rating).
- Rotational Speed: 1800 – 2000 RPM.
- Impeller Dimensions: 60mm diameter x 180mm length.
- Motor Position: Right-hand side (as viewed from the front).
Core Function & Construction
- Airflow Pattern: Unlike standard circular fans, this “drum” style fan pulls air in across its entire width and discharges it in a flat, rectangular pattern. This is ideal for cooling long evaporator coils or creating an air barrier at a door.
- Materials: Built with a lightweight aluminum alloy impeller for quiet operation and a galvanized steel frame to resist rust in moist refrigerator environments.
- Electrical Connection: Uses standard male Faston (spade) connectors for easy installation.
