250W. 12MM. Washing Machine Wash Motor:WWM-016

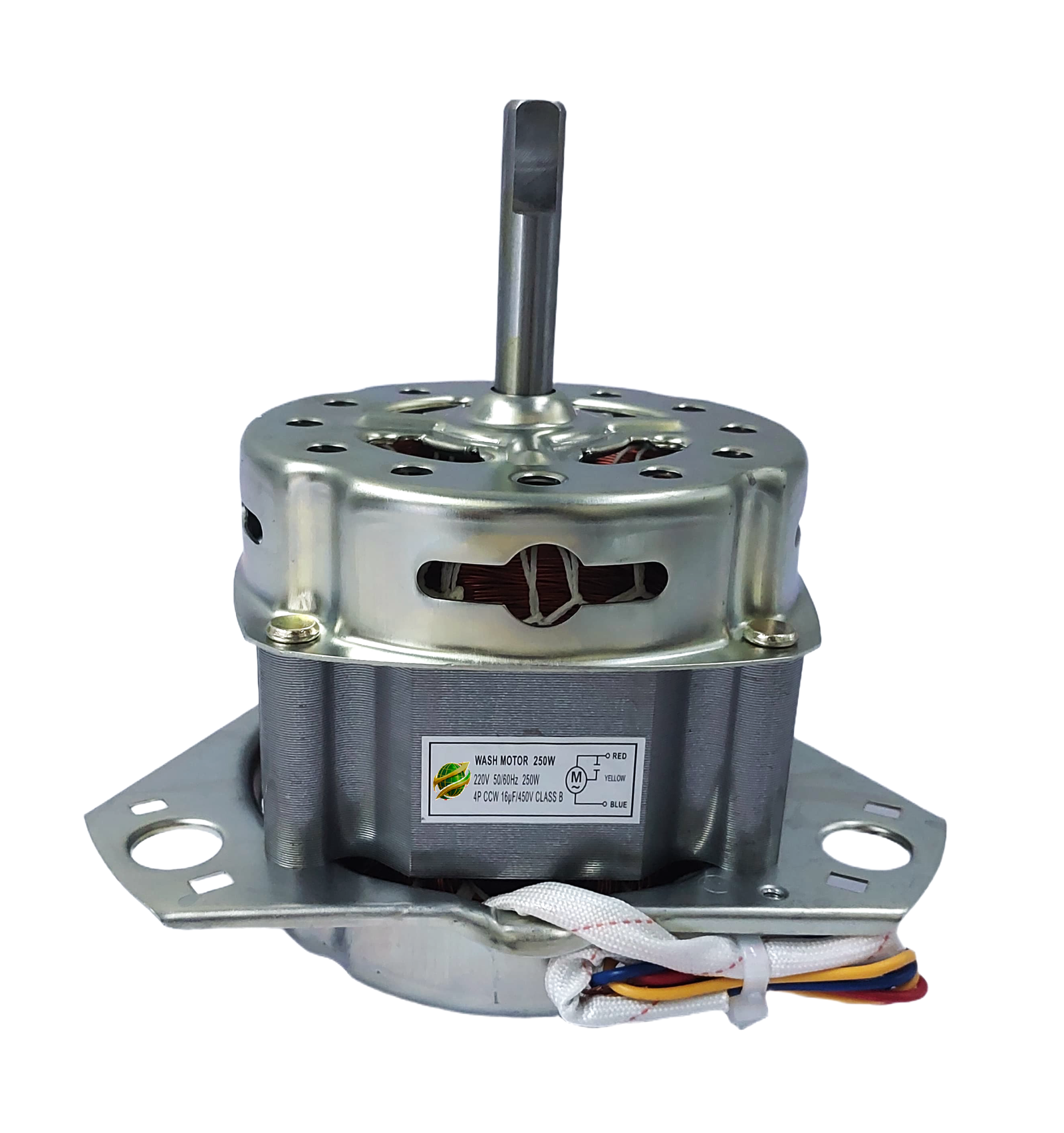

This image shows an WWM-016 Washing Motor, a high-power replacement.
🛠️ Technical Specifications
Based on the product label and description:
- Model Number: WWM-016.
- Power Output: 250W.
- Shaft Diameter: 12mm.
- Voltage/Frequency: 220V / 50Hz/60Hz.
- Capacitance: 16UF/ 450V Class B.
- Rotation: 4P CCW (Counter-Clockwise).
Key Features
- Construction: Heavy-duty metallic housing with ventilation holes for heat dissipation during long wash cycles.
- Mounting: Universal triangular base designed for easy installation in most semi-automatic top-loading washing machines.
- Performance: One of the higher wattage motors in this series (250W), making it suitable for larger capacity washers.
🔌 Wiring Schematic (Per Label)- Red: Main power line.
- Yellow: Capacitor connection.
- Blue: Capacitor and line connection.
Description
Description
This image shows an WWM-016 Washing Motor, a high-power replacement.
🛠️ Technical Specifications
Based on the product label and description:
- Model Number: WWM-016.
- Power Output: 250W.
- Shaft Diameter: 12mm.
- Voltage/Frequency: 220V / 50Hz/60Hz.
- Capacitance: 16UF/ 450V Class B.
- Rotation: 4P CCW (Counter-Clockwise).
Key Features
- Construction: Heavy-duty metallic housing with ventilation holes for heat dissipation during long wash cycles.
- Mounting: Universal triangular base designed for easy installation in most semi-automatic top-loading washing machines.
- Performance: One of the higher wattage motors in this series (250W), making it suitable for larger capacity washers.
🔌 Wiring Schematic (Per Label)- Red: Main power line.
- Yellow: Capacitor connection.
- Blue: Capacitor and line connection.
