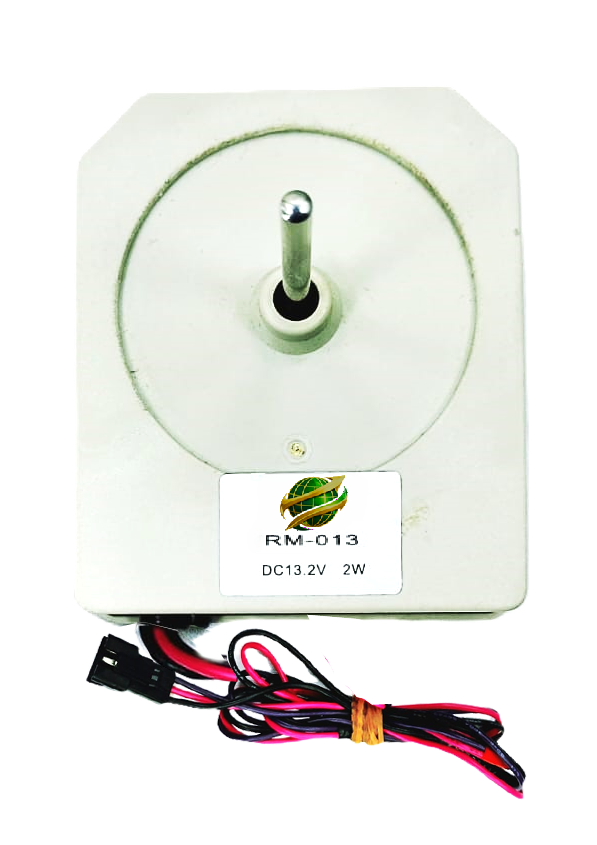

2W.13.2V. ZW-10-2. 3PIN. Refrigerator Evaporator Fan motor. RM- 013
Based on the image provided, here is a detailed list of the specifications and functions for this refrigerator component in English:
Product Overview
This is a DC Evaporator Fan Motor, a critical component used in modern frost-free refrigerators to circulate cold air from the cooling coils into the food compartments.
Technical Specifications
- Model Number: RM-013 (equivalent to ZW-10-2)
- Operating Voltage: DC 13.2V
- Power Consumption: 2 Watts (2W)
- Motor Type: Brushless DC Motor (BLDC)
- Pulse/Pole Rating: 48P
- Connector Type: 3-Pin plug (typically used for power, ground, and feedback/speed control)
- Rotation: Typically Clockwise (CW) or Counter-Clockwise (CCW) depending on the specific appliance design.
Key Functions
- Air Circulation: It pulls air across the evaporator coils to cool it down and then pushes that cold air throughout the freezer and fridge sections.
- Temperature Regulation: Ensures even cooling so that food stays fresh and doesn’t spoil in “warm spots.”
- Frost Prevention: By keeping air moving, it helps prevent excessive ice buildup on the internal walls and coils.
Compatibility
This specific motor (ZW-10-2 style) is commonly found in various international refrigerator brands, including:
- Samsung
- LG
- Haier
- Midea / Hisense
Description
Description
Based on the image provided, here is a detailed list of the specifications and functions for this refrigerator component in English:
Product Overview
This is a DC Evaporator Fan Motor, a critical component used in modern frost-free refrigerators to circulate cold air from the cooling coils into the food compartments.
Technical Specifications
- Model Number: RM-013 (equivalent to ZW-10-2)
- Operating Voltage: DC 13.2V
- Power Consumption: 2 Watts (2W)
- Motor Type: Brushless DC Motor (BLDC)
- Pulse/Pole Rating: 48P
- Connector Type: 3-Pin plug (typically used for power, ground, and feedback/speed control)
- Rotation: Typically Clockwise (CW) or Counter-Clockwise (CCW) depending on the specific appliance design.
Key Functions
- Air Circulation: It pulls air across the evaporator coils to cool it down and then pushes that cold air throughout the freezer and fridge sections.
- Temperature Regulation: Ensures even cooling so that food stays fresh and doesn’t spoil in “warm spots.”
- Frost Prevention: By keeping air moving, it helps prevent excessive ice buildup on the internal walls and coils.
Compatibility
This specific motor (ZW-10-2 style) is commonly found in various international refrigerator brands, including:
- Samsung
- LG
- Haier
- Midea / Hisense
