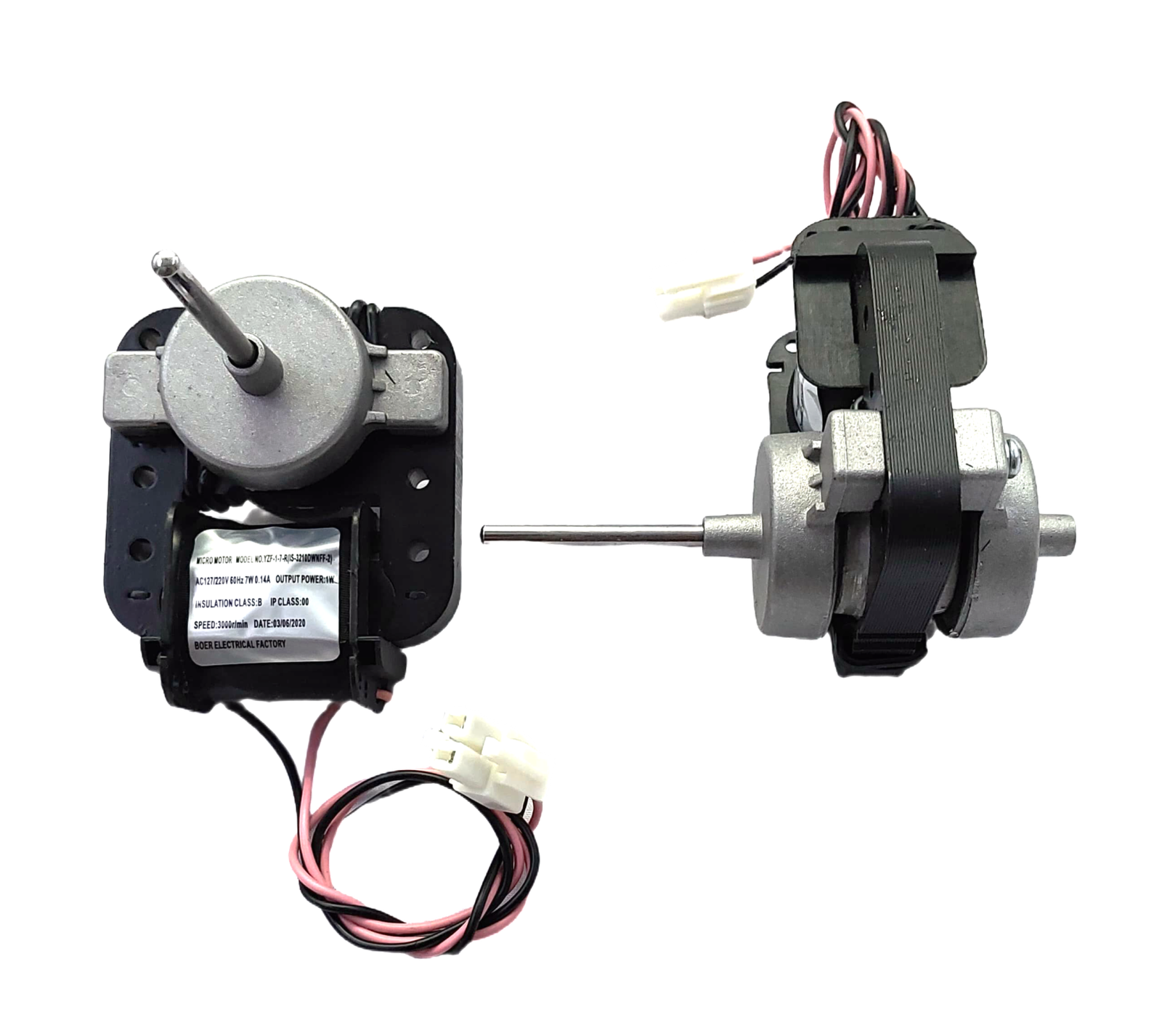

3210DWNFF. 110V. Daewoo Small Shaft REF. Evaporator Fan Motor. DARM-014-1
Based on the image provided, here are the full details for theĀ Daewoo Small Shaft Refrigerator Evaporator Fan Motor (110V Version).
Technical Specifications
- Model Number: DARM-014-1
- Reference Code:Ā 3210DWNFF
- Voltage:Ā 110V AC (Standard for US/import appliances)
- Power:Ā 7 Watts
- Frequency:Ā 60 Hz
- Speed: 2850 RPM (Standard for this motor series)
Physical Features
- Motor Type:Ā Heavy-duty C-frame shaded-pole AC motor.
- Shaft Design:Ā Specifically aĀ “Small Shaft”Ā (3210DWNFF), designed to fit compatible Daewoo press-fit fan blades.
- Mounting:Ā Integrated black plastic mounting bracket with four pre-drilled corner holes for secure evaporator installation.
- Wiring:Ā Features pink and black insulated wire leads with aĀ white plastic 2-pin connector for quick, “plug-and-play” connection.
Primary Application
- Daewoo Refrigerators: Used as an evaporator fan motor to circulate cold air through the freezer and fresh food compartments in Daewoo “No-Frost” refrigerator models operating on 110V power.
Description
Description
Based on the image provided, here are the full details for theĀ Daewoo Small Shaft Refrigerator Evaporator Fan Motor (110V Version).
Technical Specifications
- Model Number: DARM-014-1
- Reference Code:Ā 3210DWNFF
- Voltage:Ā 110V AC (Standard for US/import appliances)
- Power:Ā 7 Watts
- Frequency:Ā 60 Hz
- Speed: 2850 RPM (Standard for this motor series)
Physical Features
- Motor Type:Ā Heavy-duty C-frame shaded-pole AC motor.
- Shaft Design:Ā Specifically aĀ “Small Shaft”Ā (3210DWNFF), designed to fit compatible Daewoo press-fit fan blades.
- Mounting:Ā Integrated black plastic mounting bracket with four pre-drilled corner holes for secure evaporator installation.
- Wiring:Ā Features pink and black insulated wire leads with aĀ white plastic 2-pin connector for quick, “plug-and-play” connection.
Primary Application
- Daewoo Refrigerators: Used as an evaporator fan motor to circulate cold air through the freezer and fresh food compartments in Daewoo “No-Frost” refrigerator models operating on 110V power.
