35W. Automatic Washing Machines. Samsung Drain Pump : DP-002

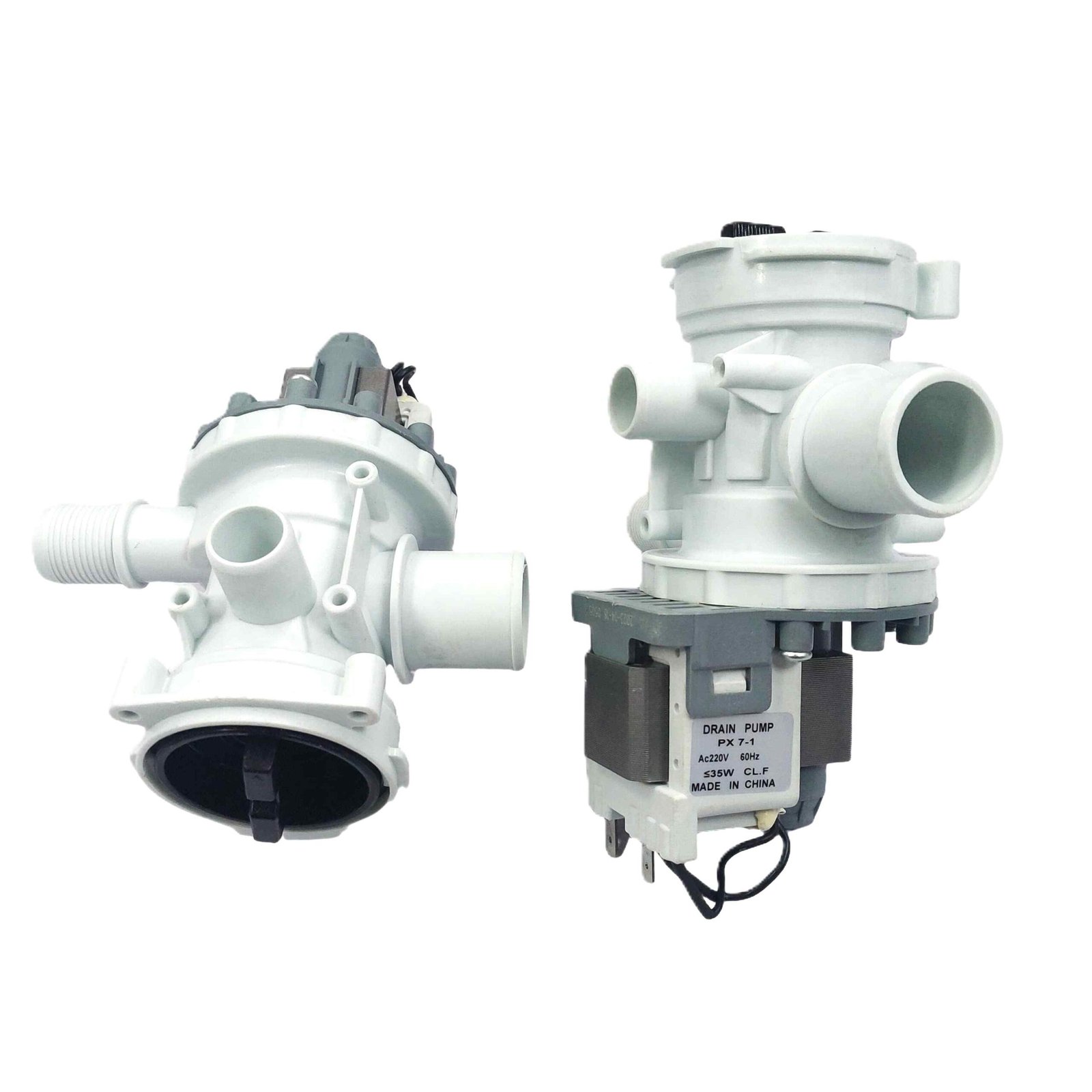

The image contains the technical details for the DP-002 Samsung Drain Pump, a high-efficiency replacement part designed for automatic washing machines.
🔍 Technical Specifications
- Model Number: DP-002 (labeled on the motor as PX 7-1).
- Voltage: AC 220V–240V, 50/60Hz.
- Power: 35W.
- Current: 0.3A.
- Insulation Class: Class F (CL.F).
- Flow Rate: Approximately 20 Liters per minute.
⚙️ Design & Features
- Construction: The unit consists of a high-performance induction motor attached to a durable white plastic pump housing (snail).
- Self-Cleaning Filter: Features a front-accessible housing designed for a screw-in debris filter/lint trap to protect the pump impeller from coins or lint.
- Hose Connections: Includes multiple ribbed ports for secure connection to the tub inlet and external drain hoses.
- Wiring: Standard two-spade terminal configuration for easy electrical connection.
Description
Description
The image contains the technical details for the DP-002 Samsung Drain Pump, a high-efficiency replacement part designed for automatic washing machines.
🔍 Technical Specifications
- Model Number: DP-002 (labeled on the motor as PX 7-1).
- Voltage: AC 220V–240V, 50/60Hz.
- Power: 35W.
- Current: 0.3A.
- Insulation Class: Class F (CL.F).
- Flow Rate: Approximately 20 Liters per minute.
⚙️ Design & Features
- Construction: The unit consists of a high-performance induction motor attached to a durable white plastic pump housing (snail).
- Self-Cleaning Filter: Features a front-accessible housing designed for a screw-in debris filter/lint trap to protect the pump impeller from coins or lint.
- Hose Connections: Includes multiple ribbed ports for secure connection to the tub inlet and external drain hoses.
- Wiring: Standard two-spade terminal configuration for easy electrical connection.
