35W Washing Machine Drain Pump : BPX2-35L

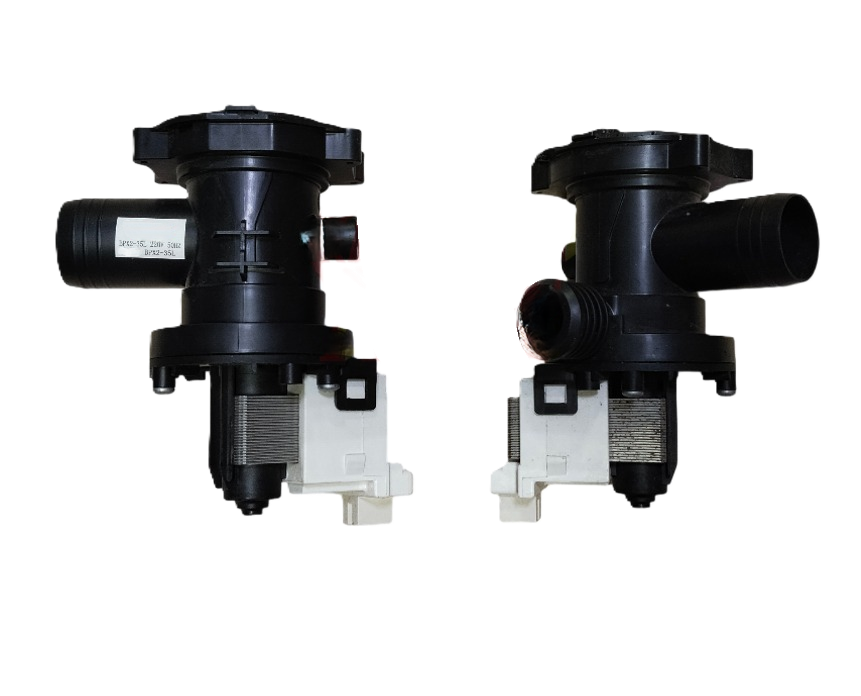

This image provides the technical details for the BPX2-35L Washing Machine Drain Pump, a versatile replacement part used in various automatic washing machines to expel water.
🔍 Technical Specifications
- Model Number: BPX2-35L
- Alternative Part Number: BPX2-35L (also compatible with various Whirlpool and Indesit part numbers such as C00145315 and 482000022889).
- Voltage: AC 220V–240V
- Frequency: 50/60Hz
- Power Output: Typically rated at 35W
- Insulation Class: Class F (CL.F)
⚙️ Physical Construction & Features
- Assembly: This is a complete pump assembly that includes the motor and the plastic “snail” housing.
- Debris Filter: Features a top-accessible, screw-in lint and debris filter (black handle) to protect the internal impeller from coins, lint, or small objects.
- Hose Connections: Includes multiple ribbed inlet and outlet ports of varying diameters for connection to the machine tub and external drain hose.
- Wiring: Standard two-spade terminal configuration for easy electrical connection to the machine’s wiring harness.
Description
Description
This image provides the technical details for the BPX2-35L Washing Machine Drain Pump, a versatile replacement part used in various automatic washing machines to expel water.
🔍 Technical Specifications
- Model Number: BPX2-35L
- Alternative Part Number: BPX2-35L (also compatible with various Whirlpool and Indesit part numbers such as C00145315 and 482000022889).
- Voltage: AC 220V–240V
- Frequency: 50/60Hz
- Power Output: Typically rated at 35W
- Insulation Class: Class F (CL.F)
⚙️ Physical Construction & Features
- Assembly: This is a complete pump assembly that includes the motor and the plastic “snail” housing.
- Debris Filter: Features a top-accessible, screw-in lint and debris filter (black handle) to protect the internal impeller from coins, lint, or small objects.
- Hose Connections: Includes multiple ribbed inlet and outlet ports of varying diameters for connection to the machine tub and external drain hose.
- Wiring: Standard two-spade terminal configuration for easy electrical connection to the machine’s wiring harness.
