35W Washing Machine Drain Pump Motor : BPX2-72L

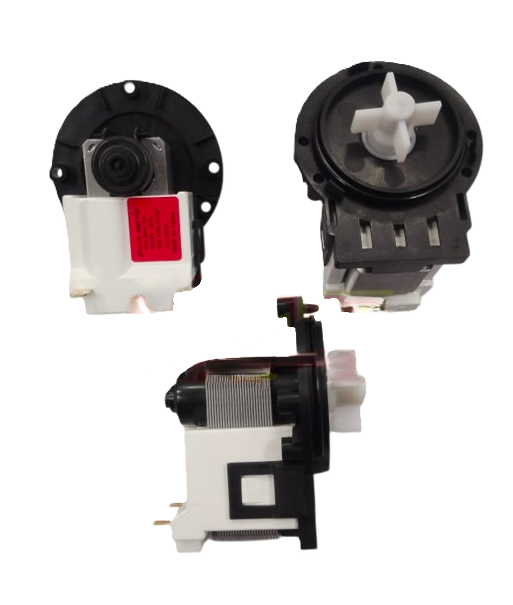

This image provides the technical details for the BPX2-72L Washing Machine Drain Pump Motor, a high-efficiency replacement part primarily designed for LG and Samsung appliances.
🔍 Technical Specifications
- Model Number: BPX2-72L
- Part Type: Drain Pump Motor (Universal Style)
- Voltage: AC 220V–240V, 50/60Hz
- Power Output: 35W
- Current: 0.3A
- Insulation Class: Class F (CL.F)
- Operation: Standard asynchronous motor
⚙️ Physical Construction & Features
- Impeller: Features a specialized four-vane white plastic impeller designed for maximum water displacement.
- Mounting: Three-hole “twist and lock” bayonet mount with a high-quality black rubber O-ring seal to ensure a watertight fit.
- Electrical: Two standard spade-terminal connectors located at the bottom of the motor block for easy plug-and-play wiring.
- Cooling: Features a metal-laminate stator core for efficient heat dissipation during long cycles.
Description
Description
This image provides the technical details for the BPX2-72L Washing Machine Drain Pump Motor, a high-efficiency replacement part primarily designed for LG and Samsung appliances.
🔍 Technical Specifications
- Model Number: BPX2-72L
- Part Type: Drain Pump Motor (Universal Style)
- Voltage: AC 220V–240V, 50/60Hz
- Power Output: 35W
- Current: 0.3A
- Insulation Class: Class F (CL.F)
- Operation: Standard asynchronous motor
⚙️ Physical Construction & Features
- Impeller: Features a specialized four-vane white plastic impeller designed for maximum water displacement.
- Mounting: Three-hole “twist and lock” bayonet mount with a high-quality black rubber O-ring seal to ensure a watertight fit.
- Electrical: Two standard spade-terminal connectors located at the bottom of the motor block for easy plug-and-play wiring.
- Cooling: Features a metal-laminate stator core for efficient heat dissipation during long cycles.
