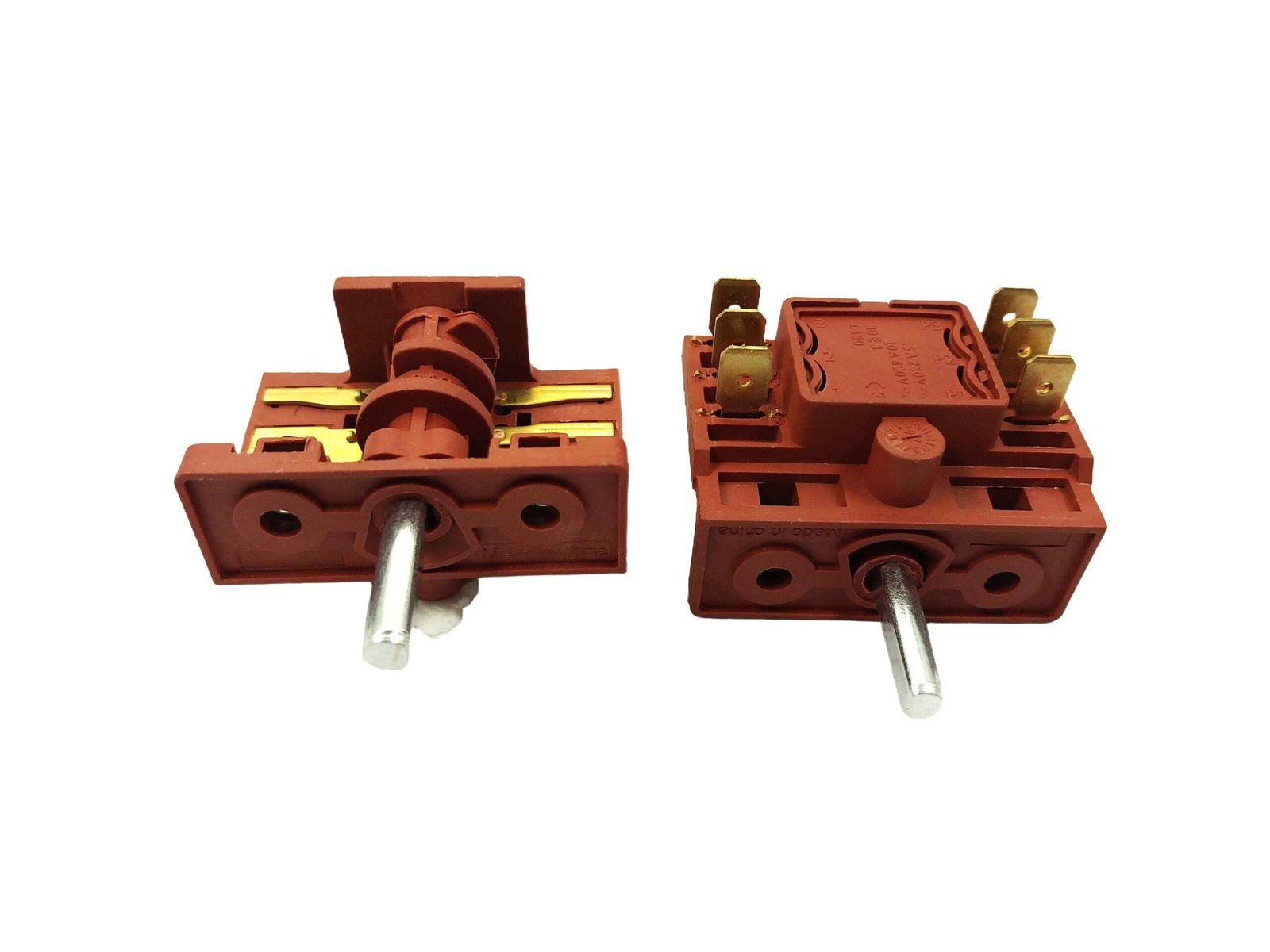

6-pin rotary selector switch : RS-017
This is a 6-pin rotary selector switch, model RS-017, used to control multiple cooking functions in electric ovens and other high-heat appliances.
Technical Specifications
- Model Number: RS-017.
- Electrical Rating: 16A, 250V. This high amperage is specifically designed to handle the power load of resistive oven heating elements.
- Temperature Rating: T150. It is made from heat-resistant materials (typically bakelite or glass-fiber reinforced nylon) to operate safely in ambient temperatures up to 150°C (302°F).
- Pin Configuration: 6-pin output. The additional pins compared to previous models allow for more complex function selections, such as combining top/bottom heat with a convection fan or a rotisserie motor simultaneously.
- Switching mechanism: Internal cam-operated system with brass leaf contacts for high electrical conductivity and durability.
Description
Description
This is a 6-pin rotary selector switch, model RS-017, used to control multiple cooking functions in electric ovens and other high-heat appliances.
Technical Specifications
- Model Number: RS-017.
- Electrical Rating: 16A, 250V. This high amperage is specifically designed to handle the power load of resistive oven heating elements.
- Temperature Rating: T150. It is made from heat-resistant materials (typically bakelite or glass-fiber reinforced nylon) to operate safely in ambient temperatures up to 150°C (302°F).
- Pin Configuration: 6-pin output. The additional pins compared to previous models allow for more complex function selections, such as combining top/bottom heat with a convection fan or a rotisserie motor simultaneously.
- Switching mechanism: Internal cam-operated system with brass leaf contacts for high electrical conductivity and durability.
