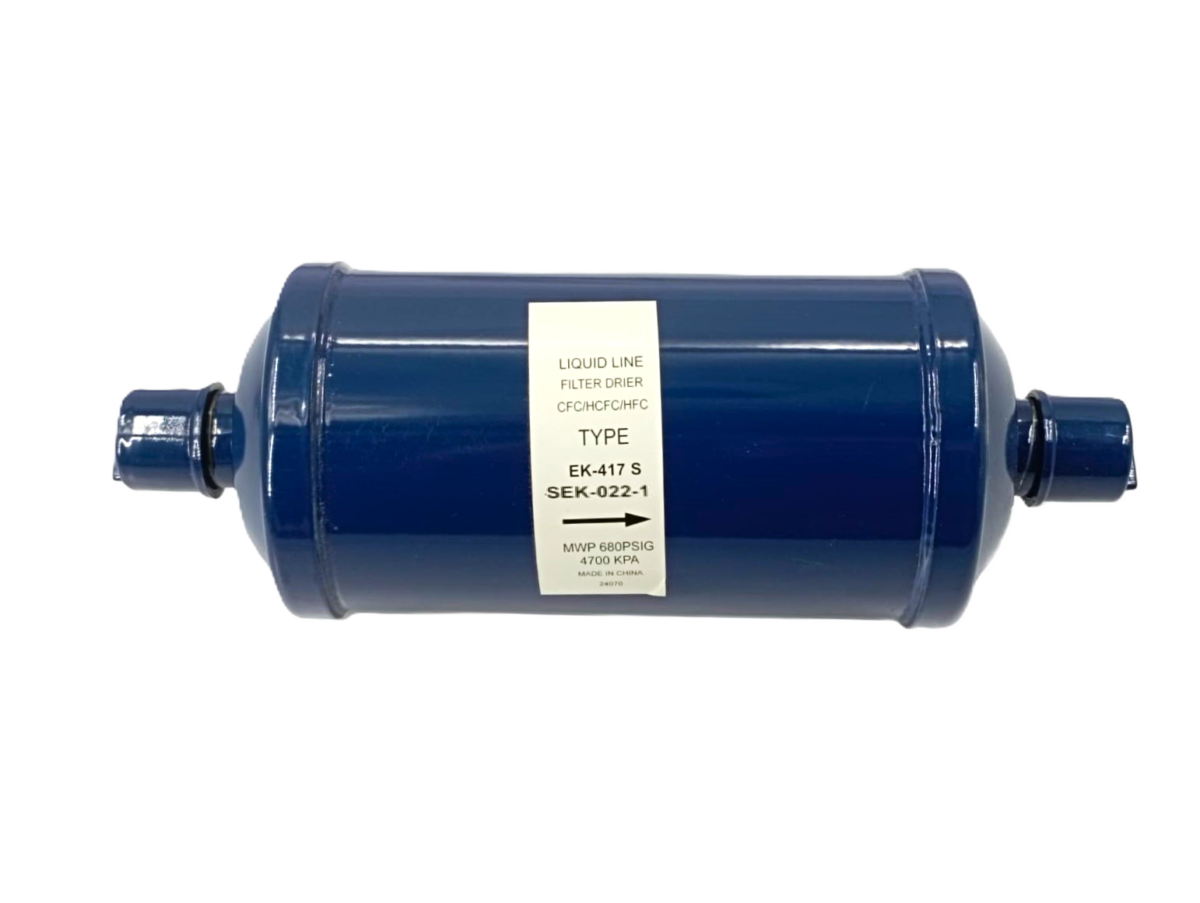

7/8 inch EK-417 S liquid line filter drier : SEK-022-1
This is an EK-417 S liquid line filter drier. It is a high-capacity component designed for large-scale industrial and commercial refrigeration and HVAC systems where a permanent, brazed connection is required.
Core Specifications
- Model: EK-417 S (Part No: SEK-022-1)
- Connection Size: 7/8 inch (22.23 mm).
- Connection Type: ODF Solder (Sweat). This model is brazed directly into the copper lines for a leak-proof, permanent joint.
- Internal Volume: 41 cubic inches. This “41” series body provides massive surface area for moisture and acid removal, offering maximum protection for the system compressor.
- Max Working Pressure: 680 PSIG (4700 KPA), making it safe for use with high-pressure refrigerants like R-410A.
Description
Description
This is an EK-417 S liquid line filter drier. It is a high-capacity component designed for large-scale industrial and commercial refrigeration and HVAC systems where a permanent, brazed connection is required.
Core Specifications
- Model: EK-417 S (Part No: SEK-022-1)
- Connection Size: 7/8 inch (22.23 mm).
- Connection Type: ODF Solder (Sweat). This model is brazed directly into the copper lines for a leak-proof, permanent joint.
- Internal Volume: 41 cubic inches. This “41” series body provides massive surface area for moisture and acid removal, offering maximum protection for the system compressor.
- Max Working Pressure: 680 PSIG (4700 KPA), making it safe for use with high-pressure refrigerants like R-410A.
