80 cm.30,000 BTU. 3HP to 5HP. REF. Compressor Terminal Control Wire.SNR-020.

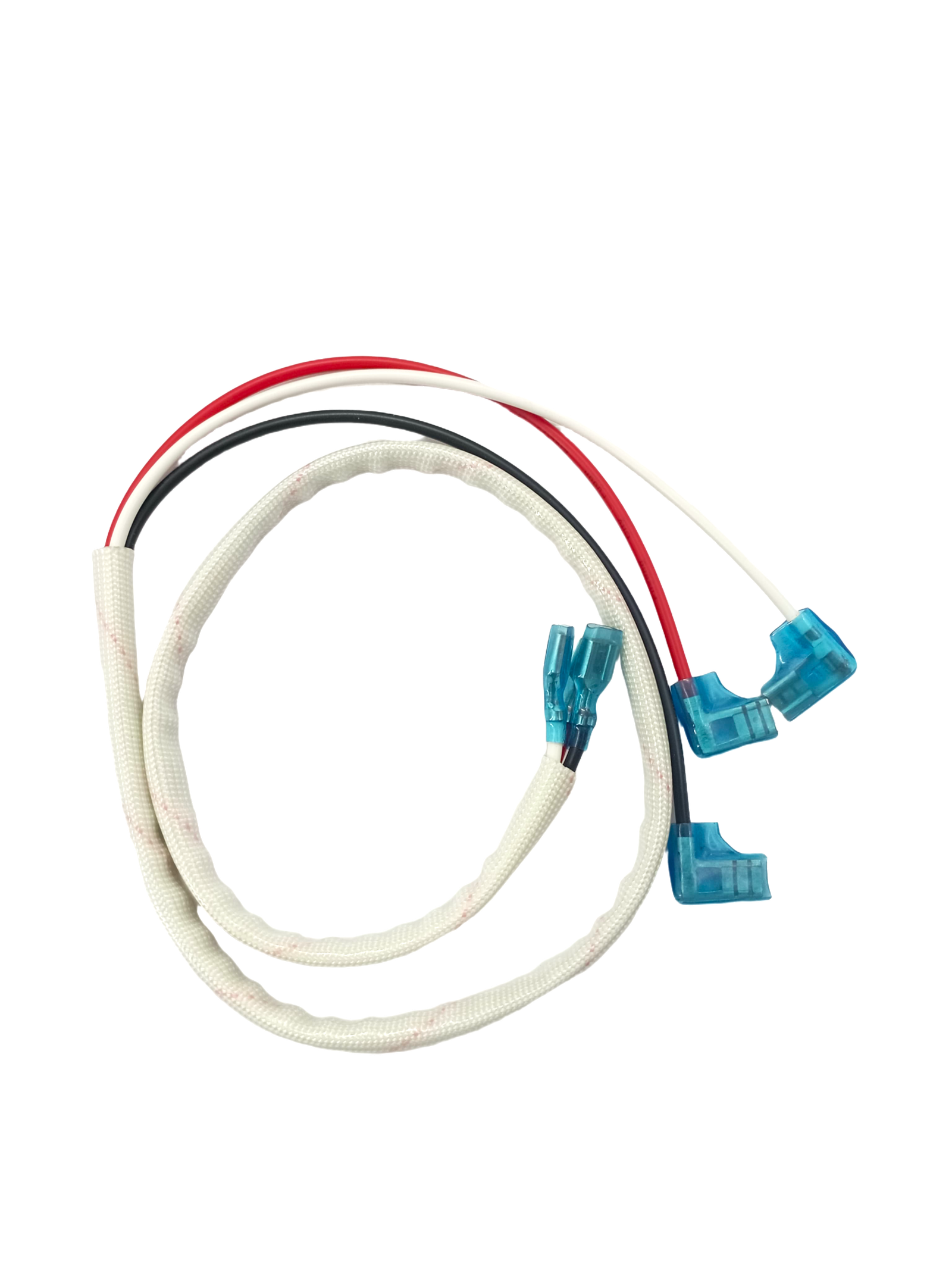

This device is an SNR-020 Compressor Terminal Control Wire, an essential electrical component used to connect an air conditioning compressor to its power supply and capacitor.
Technical Specifications
- Model Number: SNR-020.
- Compatibility: Specifically designed for large-capacity air conditioning units rated at 30,000 BTU.
- Length: The total cable length is 80 cm.
- Horsepower Rating: Typically used for high-power compressors, often in the 3HP to 5HP range depending on the specific BTU load.
- Materials: Constructed with plastic and metal components designed for high temperature resistance, fast conductivity, and anti-aging properties to withstand the harsh environment of an outdoor AC unit.
Core Function & Features
- Hermetic Connection: Acts as a hermetic lead wire assembly, providing a secure and insulated electrical path for the compressor motor terminals.
- Wiring Configuration: Features a 3-wire setup, typically color-coded (Red, Black, and White) to correspond to the Common (C), Start (S), and Run (R) terminals on the compressor.
- Connectors: Equipped with spade crimp terminals and protective blue plastic terminal covers to ensure easy, “plug-and-play” installation while protecting the connections from moisture and corrosion.
- Shielding: The main body of the wire is encased in a heat-resistant shielded sleeve (white braided material) to protect the inner insulation from the high heat generated by the compressor during operation.
Common Use Cases
- Replacement Part: Used to replace burnt, corroded, or brittle wiring harnesses that can cause an AC compressor to fail or short out.
- Maintenance: Often replaced during a compressor or capacitor change to ensure the electrical integrity of the system.
Description
Description
This device is an SNR-020 Compressor Terminal Control Wire, an essential electrical component used to connect an air conditioning compressor to its power supply and capacitor.
Technical Specifications
- Model Number: SNR-020.
- Compatibility: Specifically designed for large-capacity air conditioning units rated at 30,000 BTU.
- Length: The total cable length is 80 cm.
- Horsepower Rating: Typically used for high-power compressors, often in the 3HP to 5HP range depending on the specific BTU load.
- Materials: Constructed with plastic and metal components designed for high temperature resistance, fast conductivity, and anti-aging properties to withstand the harsh environment of an outdoor AC unit.
Core Function & Features
- Hermetic Connection: Acts as a hermetic lead wire assembly, providing a secure and insulated electrical path for the compressor motor terminals.
- Wiring Configuration: Features a 3-wire setup, typically color-coded (Red, Black, and White) to correspond to the Common (C), Start (S), and Run (R) terminals on the compressor.
- Connectors: Equipped with spade crimp terminals and protective blue plastic terminal covers to ensure easy, “plug-and-play” installation while protecting the connections from moisture and corrosion.
- Shielding: The main body of the wire is encased in a heat-resistant shielded sleeve (white braided material) to protect the inner insulation from the high heat generated by the compressor during operation.
Common Use Cases
- Replacement Part: Used to replace burnt, corroded, or brittle wiring harnesses that can cause an AC compressor to fail or short out.
- Maintenance: Often replaced during a compressor or capacitor change to ensure the electrical integrity of the system.
