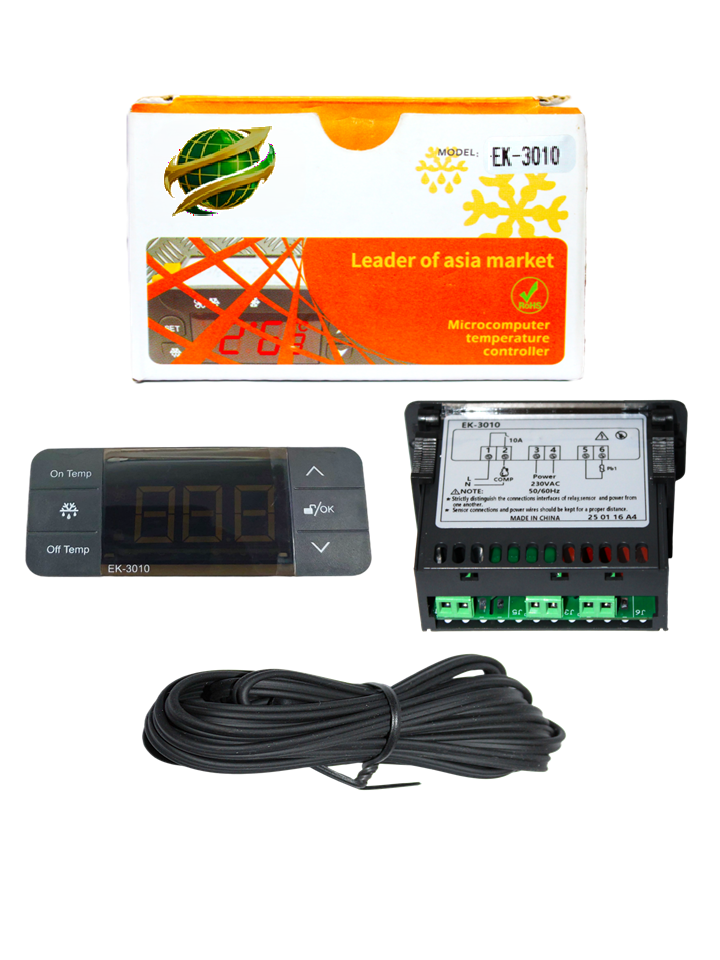

EK-3010 .REF. Temperature Controller
The EK-3010 is a microcomputer-based digital temperature controller designed for regulating cooling or heating equipment in applications such as cold storage, freezers, and incubators.
Technical Specifications
- Measurement Range: -40°C to 99°C.
- Control Range: -40°C to 85°C.
- Accuracy: ±1°C (between -30°C and 50°C); ±2°C for other ranges.
- Resolution: 0.1°C or 1°C.
- Power Supply: Typically 220VAC ±10% (50/60Hz), though 110V versions exist.
- Relay Capacity: 10A or 16A at 220VAC (can directly drive a 1HP single-phase compressor).
- Sensor Type: NTC probe (10KΩ/25°C), usually 2 meters in length.
- Mounting Size: 71mm x 29mm.
- Key Features
- Dual Mode: Supports both refrigeration (cooling) and heating modes.
- Touch Interface: Six touch-sensitive keys with a key-lock function to prevent accidental setting changes.
- Water/Dust Resistance: IP65 protection level for the front panel.
- Safety Alarms: Built-in buzzer for over-temperature alerts and sensor failure (E1 error code).
- Special Functions:
- One-Key Recovery: Allows users to quickly restore factory default parameters.
- Temperature Calibration: Ability to offset sensor readings for higher precision.
- Compressor Delay: Protects equipment from frequent cycling or power fluctuations.
Wiring Overview
- Terminals 1 & 2: Power supply input.
- Terminals 3 & 4: Output relay for the compressor or heater.
- Terminals 5 & 6: NTC temperature sensor probe connection.
Description
Description
The EK-3010 is a microcomputer-based digital temperature controller designed for regulating cooling or heating equipment in applications such as cold storage, freezers, and incubators.
Technical Specifications
- Measurement Range: -40°C to 99°C.
- Control Range: -40°C to 85°C.
- Accuracy: ±1°C (between -30°C and 50°C); ±2°C for other ranges.
- Resolution: 0.1°C or 1°C.
- Power Supply: Typically 220VAC ±10% (50/60Hz), though 110V versions exist.
- Relay Capacity: 10A or 16A at 220VAC (can directly drive a 1HP single-phase compressor).
- Sensor Type: NTC probe (10KΩ/25°C), usually 2 meters in length.
- Mounting Size: 71mm x 29mm.
- Key Features
- Dual Mode: Supports both refrigeration (cooling) and heating modes.
- Touch Interface: Six touch-sensitive keys with a key-lock function to prevent accidental setting changes.
- Water/Dust Resistance: IP65 protection level for the front panel.
- Safety Alarms: Built-in buzzer for over-temperature alerts and sensor failure (E1 error code).
- Special Functions:
- One-Key Recovery: Allows users to quickly restore factory default parameters.
- Temperature Calibration: Ability to offset sensor readings for higher precision.
- Compressor Delay: Protects equipment from frequent cycling or power fluctuations.
Wiring Overview
- Terminals 1 & 2: Power supply input.
- Terminals 3 & 4: Output relay for the compressor or heater.
- Terminals 5 & 6: NTC temperature sensor probe connection.
