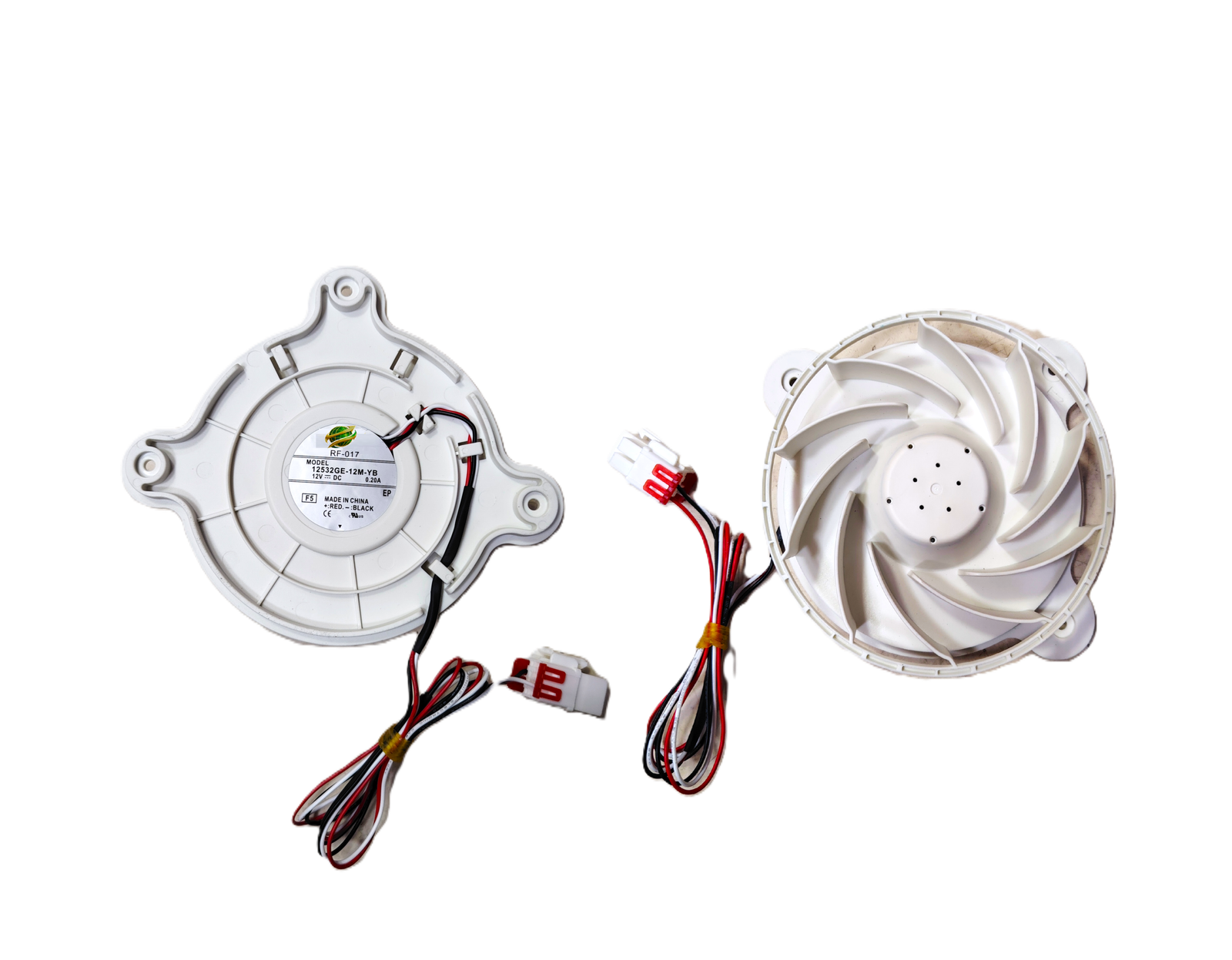

HG12035H12B. FAN DC CENTRIFUGAL FAN WHITE COLOR (RF-017)
- Primary Model Number: HG12035H12B. FAN DC CENTRIFUGAL FAN WHITE COLOR (RF-017)
- Alternative Model Number: 12532GE-12M-YB (as seen on the label).
- Primary Application: This fan is a common replacement part for Haier and Midea refrigerators. It is specifically designed to fit within the internal air duct housing of the freezer.
Technical Specifications..
- Voltage: DC 12V.
- Current: 0.20A (Note: some high-output variants of this frame size range from 0.20A to 0.33A).
- Type: Centrifugal Fan (Blower type).
- Design: 9-blade high-efficiency curved impeller housed within a circular plastic frame with three integrated mounting tabs.
- Connector: Features a 3-wire (Red, Black, Yellow/White) or 4-pin white plug for power and speed feedback.
- Compliance: Features the CE (Conformité Européenne) mark for safety and quality standards.
Description
Description
- Primary Model Number: HG12035H12B. FAN DC CENTRIFUGAL FAN WHITE COLOR (RF-017)
- Alternative Model Number: 12532GE-12M-YB (as seen on the label).
- Primary Application: This fan is a common replacement part for Haier and Midea refrigerators. It is specifically designed to fit within the internal air duct housing of the freezer.
Technical Specifications..
- Voltage: DC 12V.
- Current: 0.20A (Note: some high-output variants of this frame size range from 0.20A to 0.33A).
- Type: Centrifugal Fan (Blower type).
- Design: 9-blade high-efficiency curved impeller housed within a circular plastic frame with three integrated mounting tabs.
- Connector: Features a 3-wire (Red, Black, Yellow/White) or 4-pin white plug for power and speed feedback.
- Compliance: Features the CE (Conformité Européenne) mark for safety and quality standards.
