Hitachi 4-Pin washing machine wash timer: wmt-006

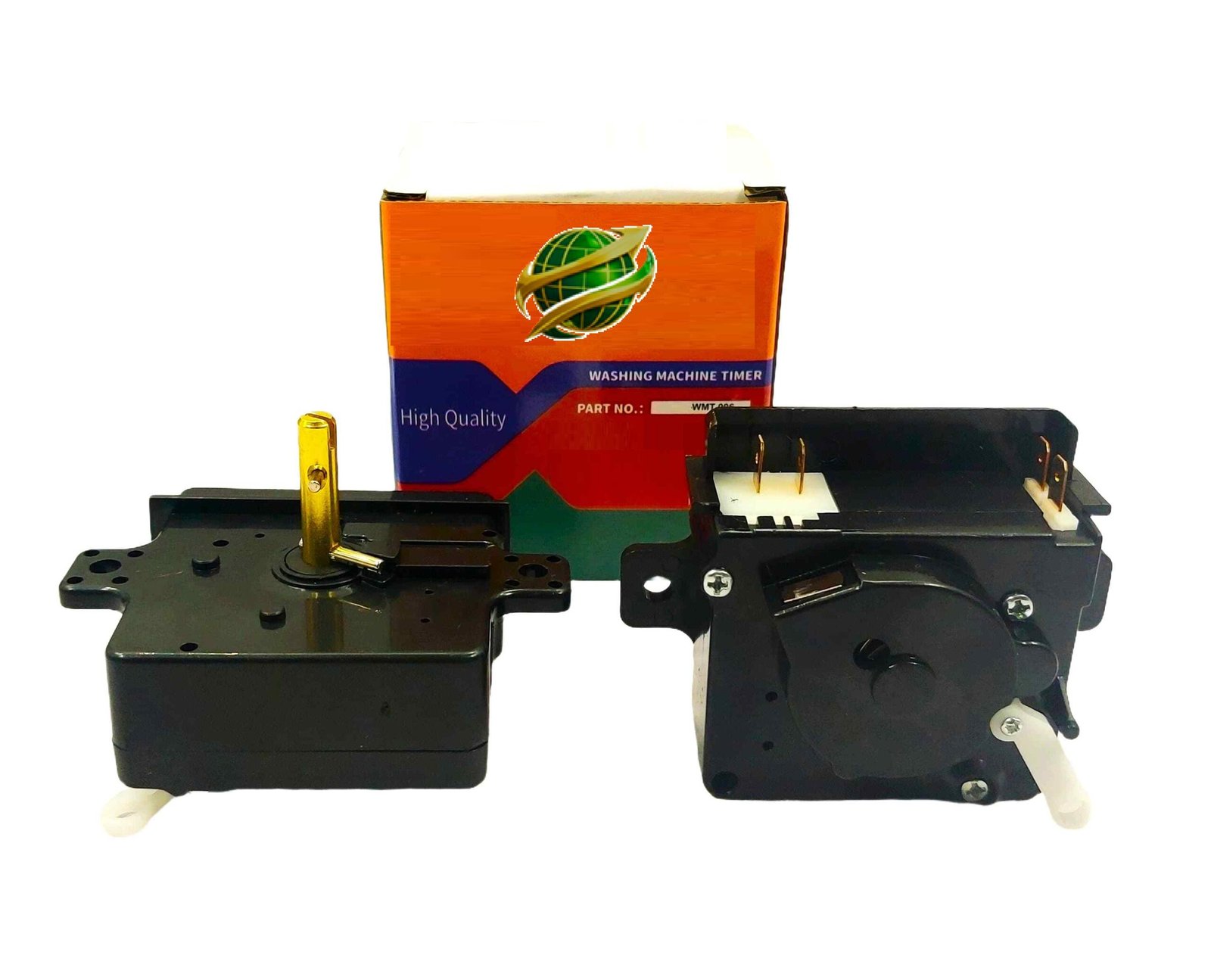

This image shows a Hitachi 4-Pin washing machine wash timer (Part Number: WMT-006), specifically designed as a replacement part for Hitachi semi-automatic washing machines.
⚙️ Technical Specifications
- Model: WMT-006 (WM TIMER HITACHI 4 PIN).
- Connection Type: 4-pin male spade terminals (faston connectors) rather than a wire harness.
- Housing: Solid black plastic body (non-transparent).
- Control: Single gold-colored metal D-shaft for the timer knob.
- Mounting: Features standard mounting “ears” with screw holes for secure installation in the control panel.
🔌 Typical Terminal Layout
While specific wiring depends on your machine’s model, a 4-pin Hitachi timer generally utilizes the terminals as follows:
- Pin 1 (Line/Common): Main power input from the safety switch or fuse.
- Pin 2 (Clockwise): Power output to the wash motor for one direction.
- Pin 3 (Counter-Clockwise): Power output to the wash motor for the opposite direction.
- Pin 4 (Buzzer): Provides power to the “cycle end” buzzer once the timer reaches zero.
Description
Description
This image shows a Hitachi 4-Pin washing machine wash timer (Part Number: WMT-006), specifically designed as a replacement part for Hitachi semi-automatic washing machines.
⚙️ Technical Specifications
- Model: WMT-006 (WM TIMER HITACHI 4 PIN).
- Connection Type: 4-pin male spade terminals (faston connectors) rather than a wire harness.
- Housing: Solid black plastic body (non-transparent).
- Control: Single gold-colored metal D-shaft for the timer knob.
- Mounting: Features standard mounting “ears” with screw holes for secure installation in the control panel.
🔌 Typical Terminal Layout
While specific wiring depends on your machine’s model, a 4-pin Hitachi timer generally utilizes the terminals as follows:
- Pin 1 (Line/Common): Main power input from the safety switch or fuse.
- Pin 2 (Clockwise): Power output to the wash motor for one direction.
- Pin 3 (Counter-Clockwise): Power output to the wash motor for the opposite direction.
- Pin 4 (Buzzer): Provides power to the “cycle end” buzzer once the timer reaches zero.
