Triple Water Inlet Solenoid Valve : IV-006

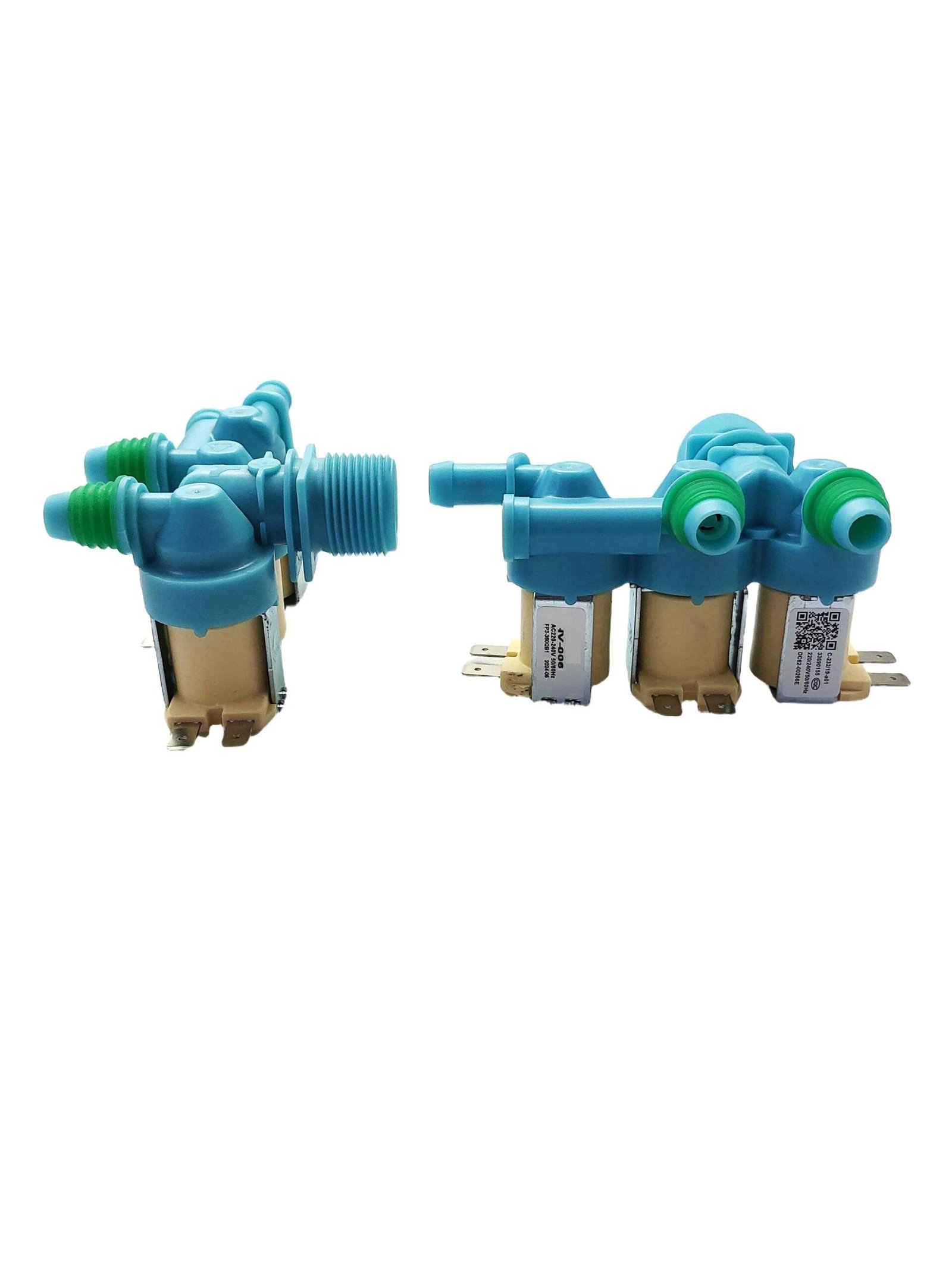

This image features the IV-006, a Triple Water Inlet Solenoid Valve primarily designed for Samsung washing machines. This component is essential for directing water to the main wash, pre-wash, and softener compartments.
⚙️ Technical Specifications
- Model Number: IV-006
- Part Reference: DC62-00266E / C232/19-A01
- Operating Voltage: AC 220V–240V
- Frequency: 50/60Hz
- Design: Triple-head (three-way) valve with a blue plastic body and green-tipped outlet ports.
- Terminals: Standard 6.3mm spade connectors for electrical attachment.
✅ Compatibility
This valve is a direct replacement for many Samsung front-load and top-load washing machines. Common compatible models include:
- WF Series: WF70F5E0W2W, WF80F5E5U4W, WF0702WKE
- WW Series: WW70J4473MW, WW80J5410GW, WW90J5410GW
- WD Series: WD80J5410AW (Washer-Dryer combos)
Description
Description
This image features the IV-006, a Triple Water Inlet Solenoid Valve primarily designed for Samsung washing machines. This component is essential for directing water to the main wash, pre-wash, and softener compartments.
⚙️ Technical Specifications
- Model Number: IV-006
- Part Reference: DC62-00266E / C232/19-A01
- Operating Voltage: AC 220V–240V
- Frequency: 50/60Hz
- Design: Triple-head (three-way) valve with a blue plastic body and green-tipped outlet ports.
- Terminals: Standard 6.3mm spade connectors for electrical attachment.
✅ Compatibility
This valve is a direct replacement for many Samsung front-load and top-load washing machines. Common compatible models include:
- WF Series: WF70F5E0W2W, WF80F5E5U4W, WF0702WKE
- WW Series: WW70J4473MW, WW80J5410GW, WW90J5410GW
- WD Series: WD80J5410AW (Washer-Dryer combos)
