Washing Machine Drum Spider : WMSP-004

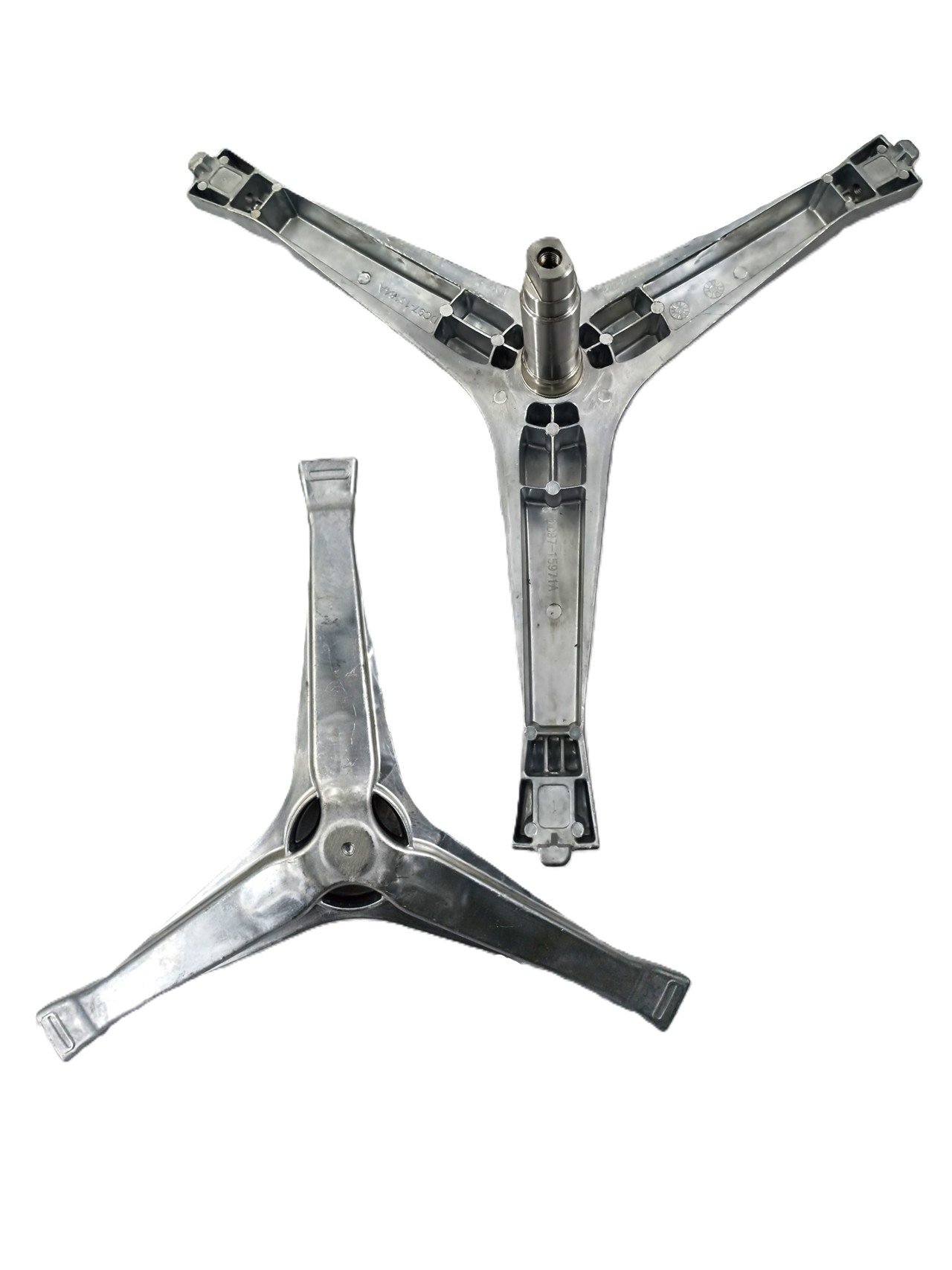

This image shows the WMSP-004 Washing Machine Drum Spider, a heavy-duty support flange used to connect the wash drum to the drive system.
🔍 Technical Specifications
- Model Number: WMSP-004
- OEM Part Numbers: DC97-15184A (Primary) and DC97-15971A (Compatible)
- Part Type: Drum Spider / Flange Shaft Assembly
- Design: Three-arm tripod structure with a central splined drive shaf
⚙️ Design & Material
- Construction: Made from a high-density cast aluminum alloy, specifically designed to withstand the high-torque stresses and centrifugal forces of the spin cycle.
- Function: It acts as the backbone of the inner drum, ensuring it stays centered and balanced while rotating.
- Shaft Detail: The central shaft features a specific splined end to lock into the motor drive pulley and precisely machined surfaces for bearing and water seal fitment.
Description
Description
This image shows the WMSP-004 Washing Machine Drum Spider, a heavy-duty support flange used to connect the wash drum to the drive system.
🔍 Technical Specifications
- Model Number: WMSP-004
- OEM Part Numbers: DC97-15184A (Primary) and DC97-15971A (Compatible)
- Part Type: Drum Spider / Flange Shaft Assembly
- Design: Three-arm tripod structure with a central splined drive shaf
⚙️ Design & Material
- Construction: Made from a high-density cast aluminum alloy, specifically designed to withstand the high-torque stresses and centrifugal forces of the spin cycle.
- Function: It acts as the backbone of the inner drum, ensuring it stays centered and balanced while rotating.
- Shaft Detail: The central shaft features a specific splined end to lock into the motor drive pulley and precisely machined surfaces for bearing and water seal fitment.
