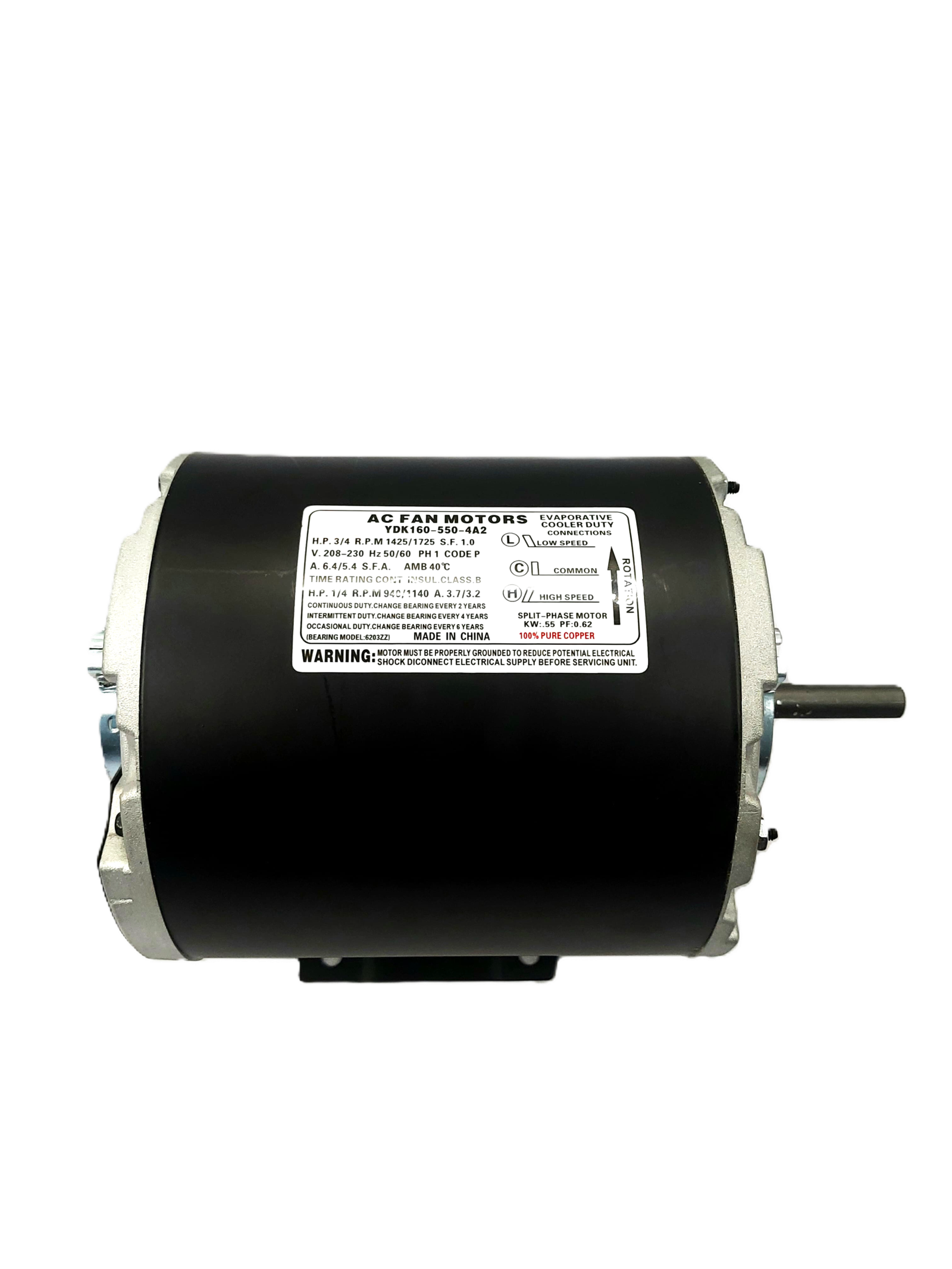

3/4 HP YDK160-550-4A2 AC Cooler Fan Motor 100% Pure Copper
This is a high-performance 3/4 HP AC Cooler Fan Motor, specifically model YDK160-550-4A2, featuring 100% Pure Copper windings. it is designed for maximum efficiency in large evaporative (desert) coolers.
Core Technical Specifications
- Model Number: YDK 160-550-4A2
- Power (H.P.): Dual-speed rated at 3/4 HP (High) and 1/4 HP (Low).
- Winding Material: 100% Pure Copper for superior durability, better heat management, and high electrical efficiency.
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- RPM: 1425 / 1725 RPM.
- Amperage: 6.4A / 5.4A.
- Bearing Model: 6202ZZ (High-quality ball bearing).
Wiring & Connection Guide
The motor features a standard terminal layout for “Evaporative Cooler Duty” as illustrated on the label:
- Common (C): The main neutral/return terminal.
- High Speed (H): Power input for maximum airflow.
- Low Speed (L): Power input for quieter, energy-saving operation.
- Rotation: Indicated by the arrow on the right side of the label; ensure this matches your fan’s required direction.
Description
Description
This is a high-performance 3/4 HP AC Cooler Fan Motor, specifically model YDK160-550-4A2, featuring 100% Pure Copper windings. it is designed for maximum efficiency in large evaporative (desert) coolers.
Core Technical Specifications
- Model Number: YDK 160-550-4A2
- Power (H.P.): Dual-speed rated at 3/4 HP (High) and 1/4 HP (Low).
- Winding Material: 100% Pure Copper for superior durability, better heat management, and high electrical efficiency.
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- RPM: 1425 / 1725 RPM.
- Amperage: 6.4A / 5.4A.
- Bearing Model: 6202ZZ (High-quality ball bearing).
Wiring & Connection Guide
The motor features a standard terminal layout for “Evaporative Cooler Duty” as illustrated on the label:
- Common (C): The main neutral/return terminal.
- High Speed (H): Power input for maximum airflow.
- Low Speed (L): Power input for quieter, energy-saving operation.
- Rotation: Indicated by the arrow on the right side of the label; ensure this matches your fan’s required direction.
