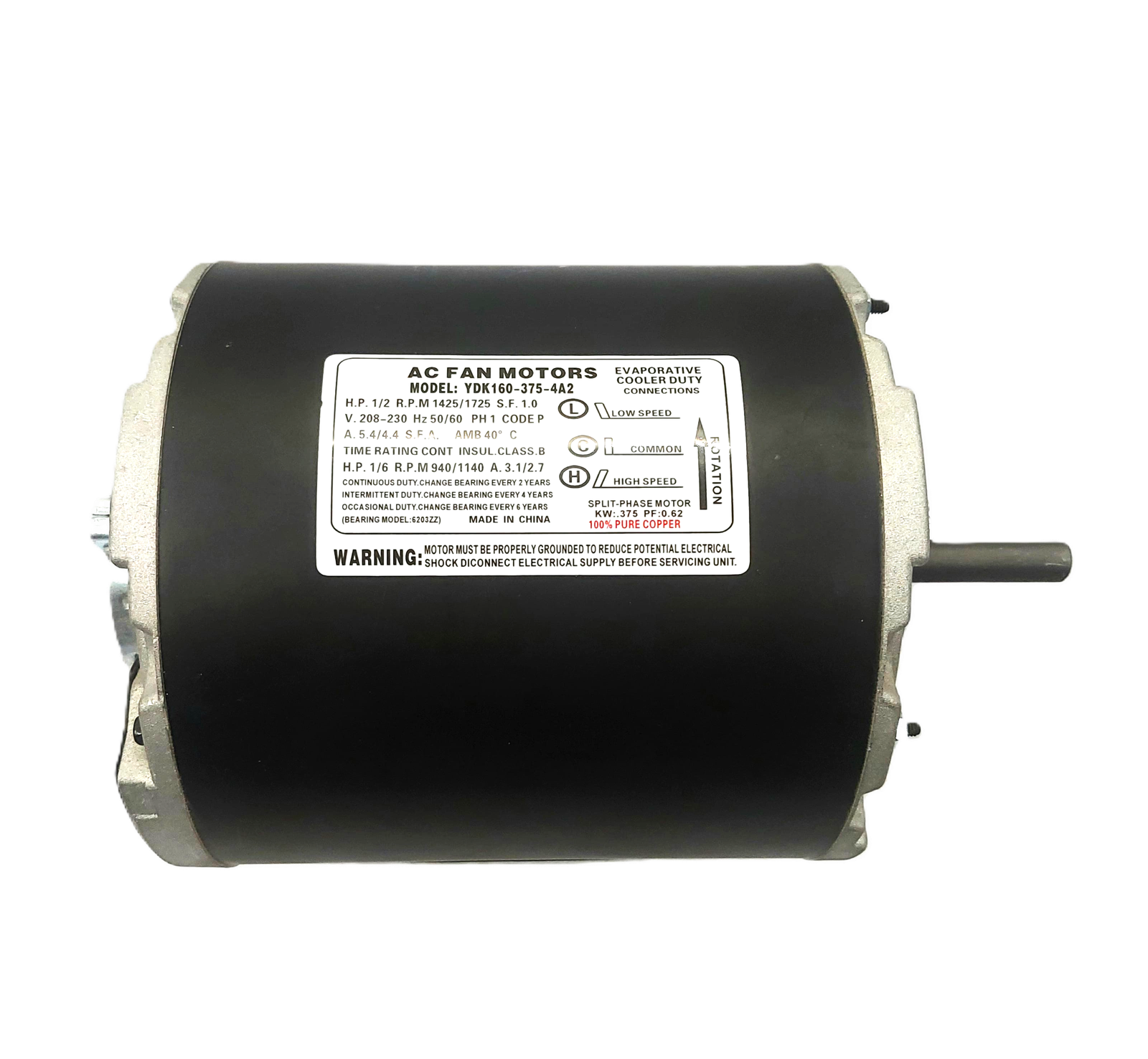

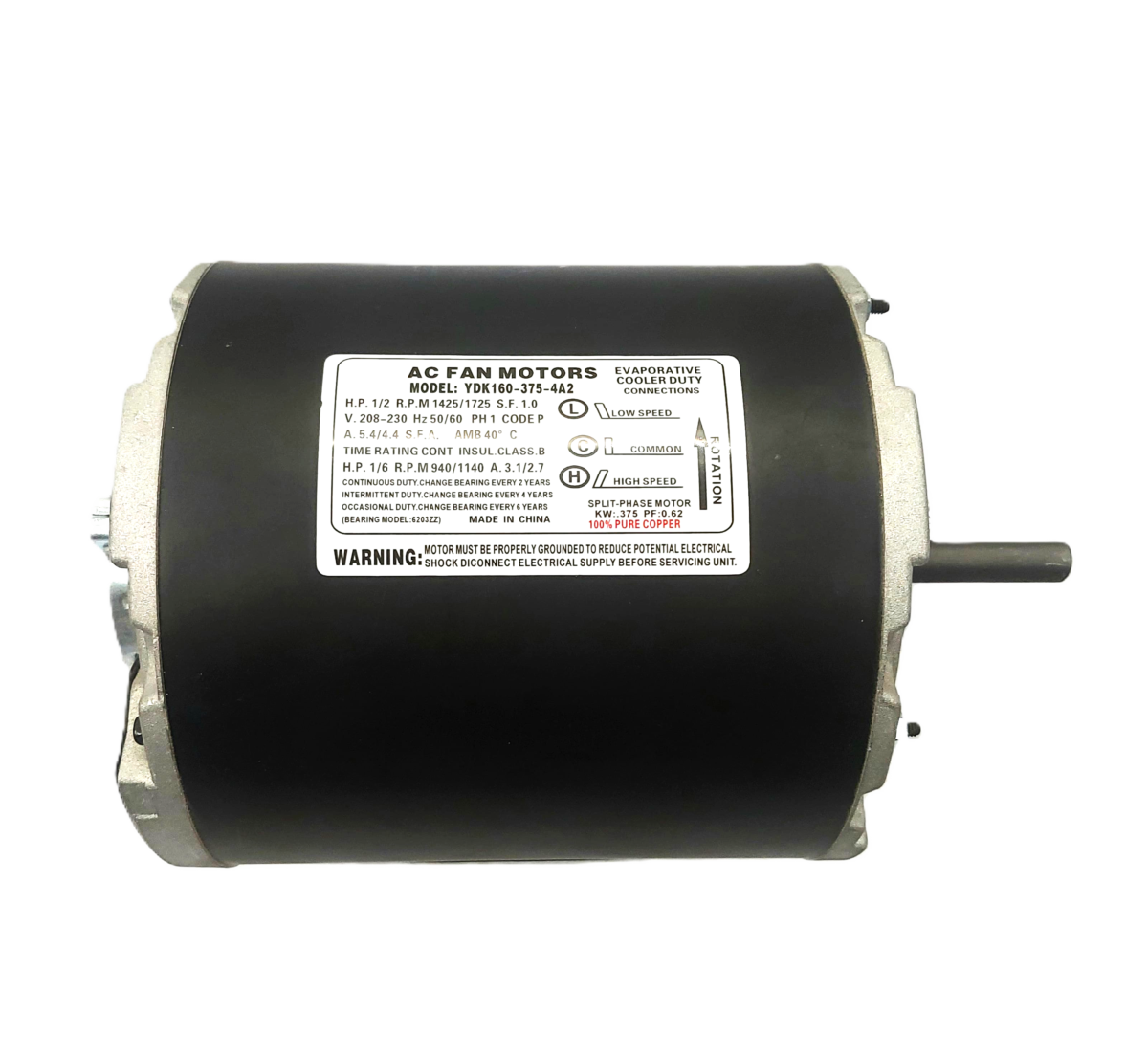

1/2 HP YDK160-375-4A2 100% Pure Copper AC Cooler Fan Motor
This is a 1/2 HP AC Cooler Fan Motor, specifically model YDK160-375-4A2, featuring 100% Pure Copper windings. it is designed for heavy-duty performance in evaporative (desert) coolers.
Core Technical Specifications
-
- Model: AFTC-YDK 160-375-4A2
- Power (H.P.): Dual-speed rated at 1/2 HP (High) and 1/6 HP (Low).
- Winding Material: 100% Pure Copper for superior heat resistance and high electrical efficiency.
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- RPM: 1425 / 1725 RPM.
- Current (Amps): 5.4A / 4.4A.
- Bearing Model: 6202ZZ (High-quality ball bearing).
Wiring & Connection Guide
The motor uses standard evaporative cooler duty connections as shown on the label:
-
- Common (C): The main neutral/return terminal.
- High Speed (H): Terminal for maximum cooling power.
- Low Speed (L): Terminal for reduced speed and quieter operation.
- Rotation: Indicated by the arrow on the right side of the label; verify this matches your cooler’s fan blade requirement.
Description
Description
This is a 1/2 HP AC Cooler Fan Motor, specifically model YDK160-375-4A2, featuring 100% Pure Copper windings. it is designed for heavy-duty performance in evaporative (desert) coolers.
Core Technical Specifications
-
- Model: AFTC-YDK 160-375-4A2
- Power (H.P.): Dual-speed rated at 1/2 HP (High) and 1/6 HP (Low).
- Winding Material: 100% Pure Copper for superior heat resistance and high electrical efficiency.
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- RPM: 1425 / 1725 RPM.
- Current (Amps): 5.4A / 4.4A.
- Bearing Model: 6202ZZ (High-quality ball bearing).
Wiring & Connection Guide
The motor uses standard evaporative cooler duty connections as shown on the label:
-
- Common (C): The main neutral/return terminal.
- High Speed (H): Terminal for maximum cooling power.
- Low Speed (L): Terminal for reduced speed and quieter operation.
- Rotation: Indicated by the arrow on the right side of the label; verify this matches your cooler’s fan blade requirement.
