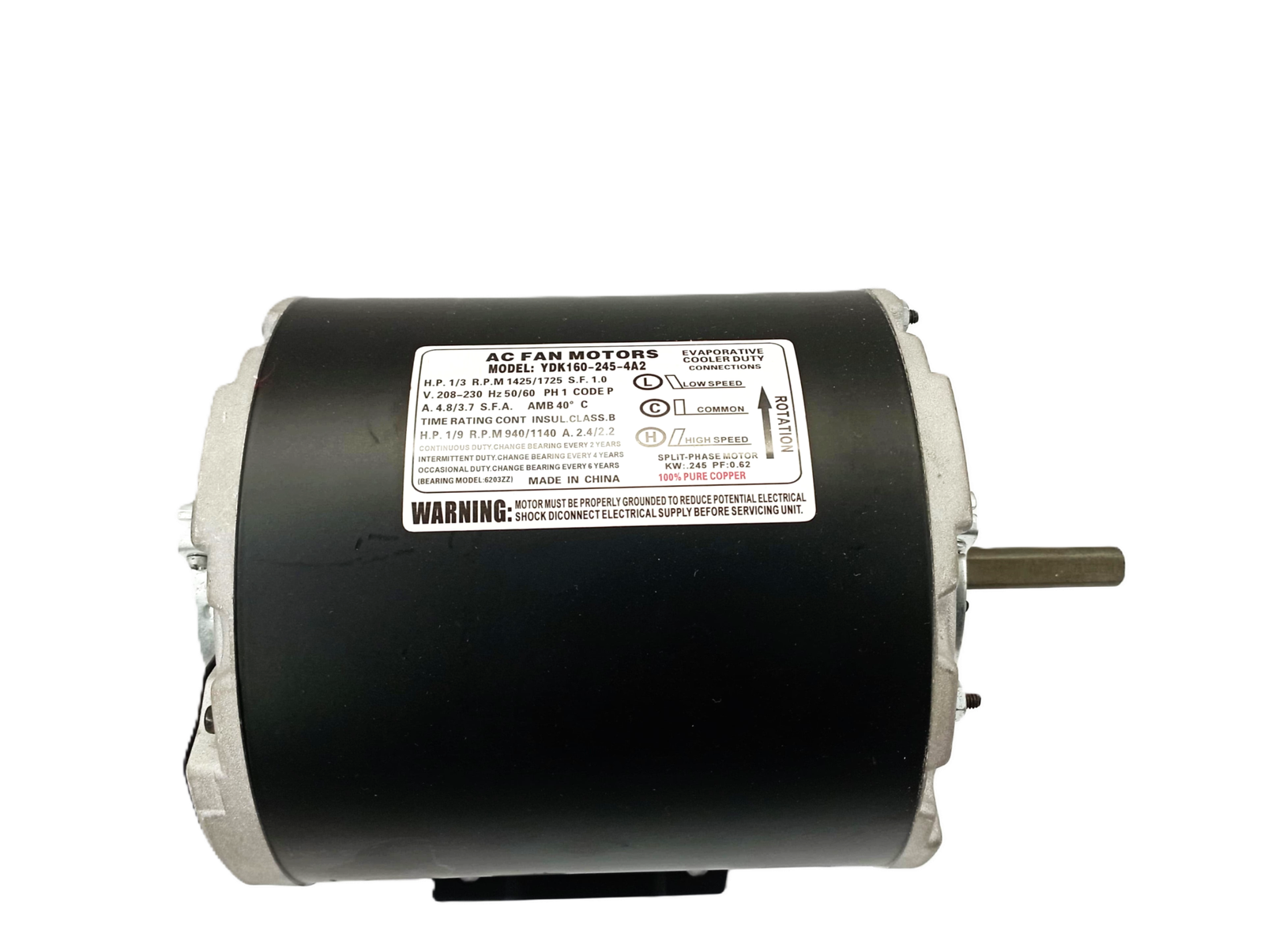

1/3 HP YDK160-245-4A2 100% Pure Copper AC Cooler Fan Motor
This is a high-efficiency 100% Pure Copper AC Cooler Fan Motor, model YDK160-245-4A2. The pure copper windings provide superior heat resistance and a longer lifespan compared to standard motors.
Technical Specifications
-
- Model: YDK 160-245-4A2
- Horsepower (H.P.): Dual-speed rated at 1/3 HP (High) and 1/9 HP (Low).
- Winding: 100% Pure Copper for improved efficiency and durability.
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- Current: 4.6A / 3.7A.
- Speed: 1425 / 1725 RPM.
- Bearing Type: 6202ZZ (High-quality ball bearing).
Wiring & Connection Guide
The motor features a standard terminal block for evaporative (desert) cooler connections:
- Common (C): The main neutral/return wire.
- High Speed (H): Power input for maximum cooling performance.
- Low Speed (L): Power input for quieter, energy-efficient operation.
- Rotation: Indicated by the arrow on the right of the label; ensure this matches your fan’s required direction.
Description
Description
This is a high-efficiency 100% Pure Copper AC Cooler Fan Motor, model YDK160-245-4A2. The pure copper windings provide superior heat resistance and a longer lifespan compared to standard motors.
Technical Specifications
-
- Model: YDK 160-245-4A2
- Horsepower (H.P.): Dual-speed rated at 1/3 HP (High) and 1/9 HP (Low).
- Winding: 100% Pure Copper for improved efficiency and durability.
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- Current: 4.6A / 3.7A.
- Speed: 1425 / 1725 RPM.
- Bearing Type: 6202ZZ (High-quality ball bearing).
Wiring & Connection Guide
The motor features a standard terminal block for evaporative (desert) cooler connections:
-
- Common (C): The main neutral/return wire.
- High Speed (H): Power input for maximum cooling performance.
- Low Speed (L): Power input for quieter, energy-efficient operation.
- Rotation: Indicated by the arrow on the right of the label; ensure this matches your fan’s required direction.
