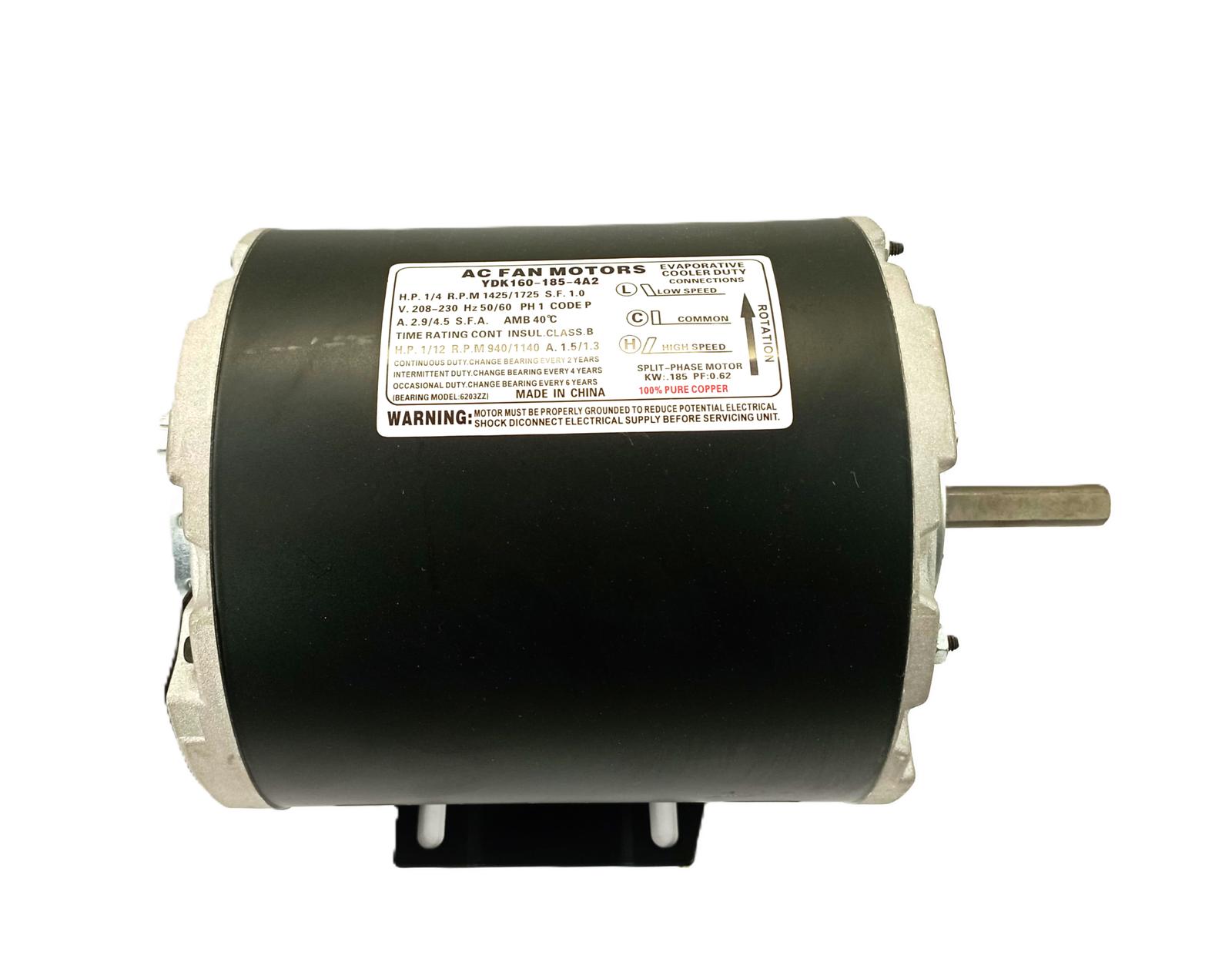

1/4 HP YDK 160-185-4A2 100% Pure Copper AC Cooler Fan Motor
This is a premium 100% Pure Copper AC Cooler Fan Motor, model YDK160-185-4A2. This version is specifically noted for its copper winding, which offers better heat dissipation and a longer lifespan than aluminum alternatives.
Core Technical Specifications
-
- Model: YDK 160-185-4A2
- Power (H.P.): Dual-speed rated at 1/4 HP (High) and 1/12 HP (Low).
- Winding Material: 100% Pure Copper for high efficiency.
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- RPM: 1425 / 1725 RPM.
- Current: 2.9A / 4.5A.
- Bearing Model: 6202ZZ (High-quality ball bearing).
Installation & Wiring
The motor is designed for standard “Evaporative Cooler Duty” with the following terminal connections:
- Common (C): The primary neutral connection.
- High Speed (H): Maximum power for peak cooling.
- Low Speed (L): Reduced power for quieter, energy-saving operation.
- Rotation: Indicated by the arrow on the right side of the label; ensure this matches your cooler’s fan requirements.
Description
Description
This is a premium 100% Pure Copper AC Cooler Fan Motor, model YDK160-185-4A2. This version is specifically noted for its copper winding, which offers better heat dissipation and a longer lifespan than aluminum alternatives.
Core Technical Specifications
-
- Model: YDK 160-185-4A2
- Power (H.P.): Dual-speed rated at 1/4 HP (High) and 1/12 HP (Low).
- Winding Material: 100% Pure Copper for high efficiency.
- Voltage: 208-230V, 50/60Hz, Single Phase (PH 1).
- RPM: 1425 / 1725 RPM.
- Current: 2.9A / 4.5A.
- Bearing Model: 6202ZZ (High-quality ball bearing).
Installation & Wiring
The motor is designed for standard “Evaporative Cooler Duty” with the following terminal connections:
- Common (C): The primary neutral connection.
- High Speed (H): Maximum power for peak cooling.
- Low Speed (L): Reduced power for quieter, energy-saving operation.
- Rotation: Indicated by the arrow on the right side of the label; ensure this matches your cooler’s fan requirements.
