3/4 inch EK-306 S liquid line filter drier : SEK-016-1

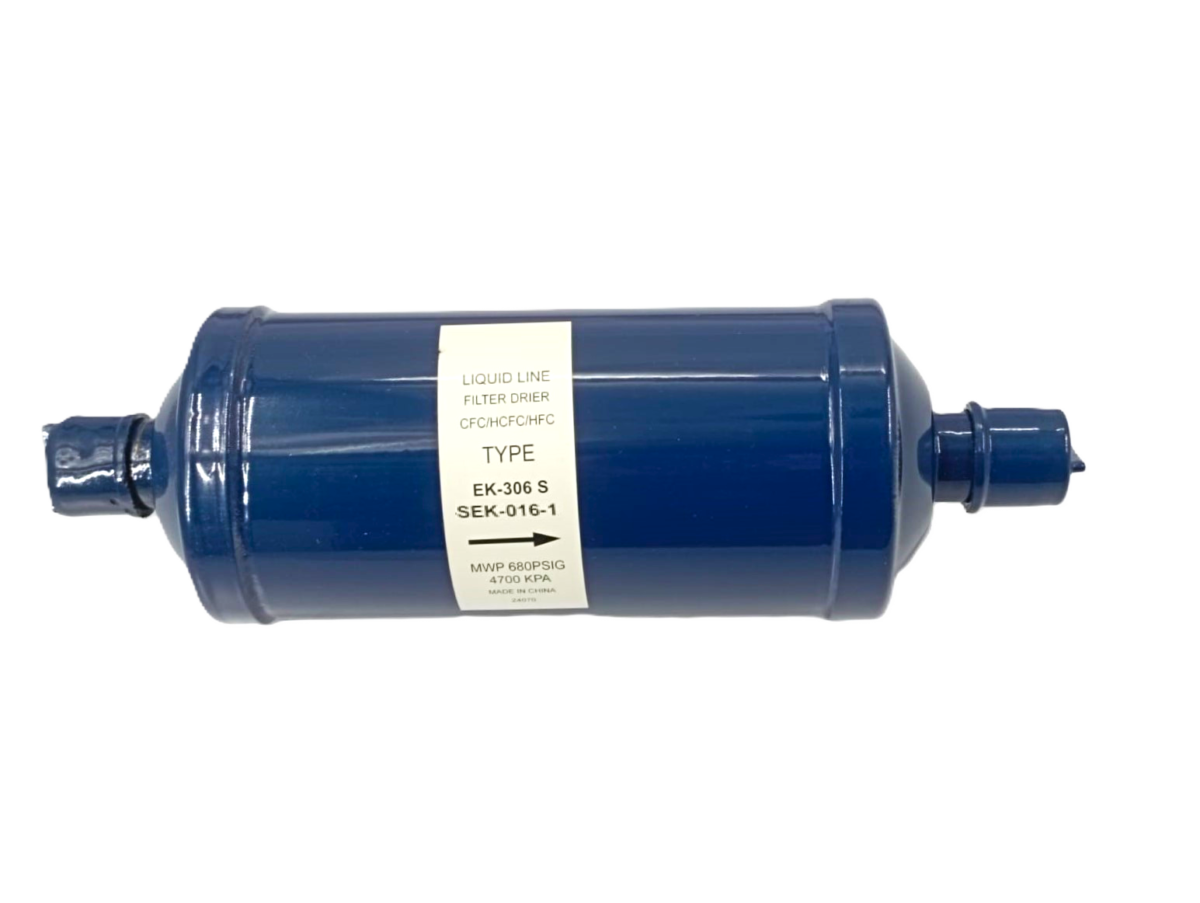

This is an EK-306 S liquid line filter drier. It is a high-capacity model with large connections, specifically designed for industrial-scale or large commercial refrigeration and HVAC systems.
Core Specifications
- Model: EK-306 S (Part No: SEK-016-1)
- Connection Size: 3/4 inch (19.05 mm).
- Connection Type: ODF Solder (Sweat). This requires brazing for a permanent, high-strength connection to the copper lines.
- Internal Volume: 30 cubic inches. This large body provides massive surface area for filtering debris and high capacity for moisture and acid removal.
- Max Working Pressure: 680 PSIG (4700 KPA).
Key Features
- Superior Filtration: Features a high-efficiency bead desiccant core (75% molecular sieve / 25% activated alumina) for maximum system protection against contaminants.
- Universal Compatibility: Works with common refrigerants including R-22, R-134a, R-404A, R-407C, R-410A, and R-507.
Description
Description
This is an EK-306 S liquid line filter drier. It is a high-capacity model with large connections, specifically designed for industrial-scale or large commercial refrigeration and HVAC systems.
Core Specifications
- Model: EK-306 S (Part No: SEK-016-1)
- Connection Size: 3/4 inch (19.05 mm).
- Connection Type: ODF Solder (Sweat). This requires brazing for a permanent, high-strength connection to the copper lines.
- Internal Volume: 30 cubic inches. This large body provides massive surface area for filtering debris and high capacity for moisture and acid removal.
- Max Working Pressure: 680 PSIG (4700 KPA).
Key Features
- Superior Filtration: Features a high-efficiency bead desiccant core (75% molecular sieve / 25% activated alumina) for maximum system protection against contaminants.
- Universal Compatibility: Works with common refrigerants including R-22, R-134a, R-404A, R-407C, R-410A, and R-507.
