5/8 inch EK-305 S liquid line filter drier : SEK-015-1

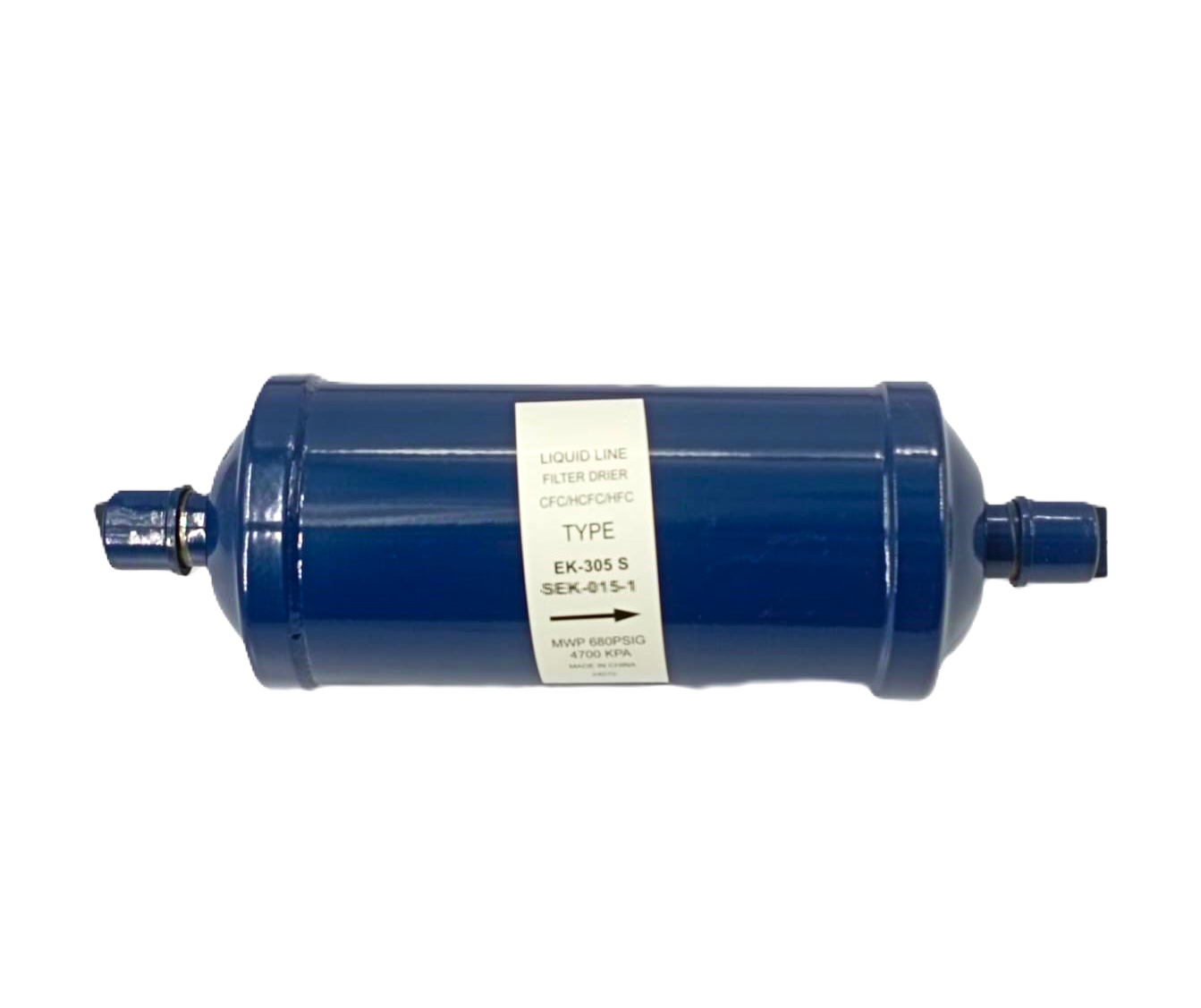

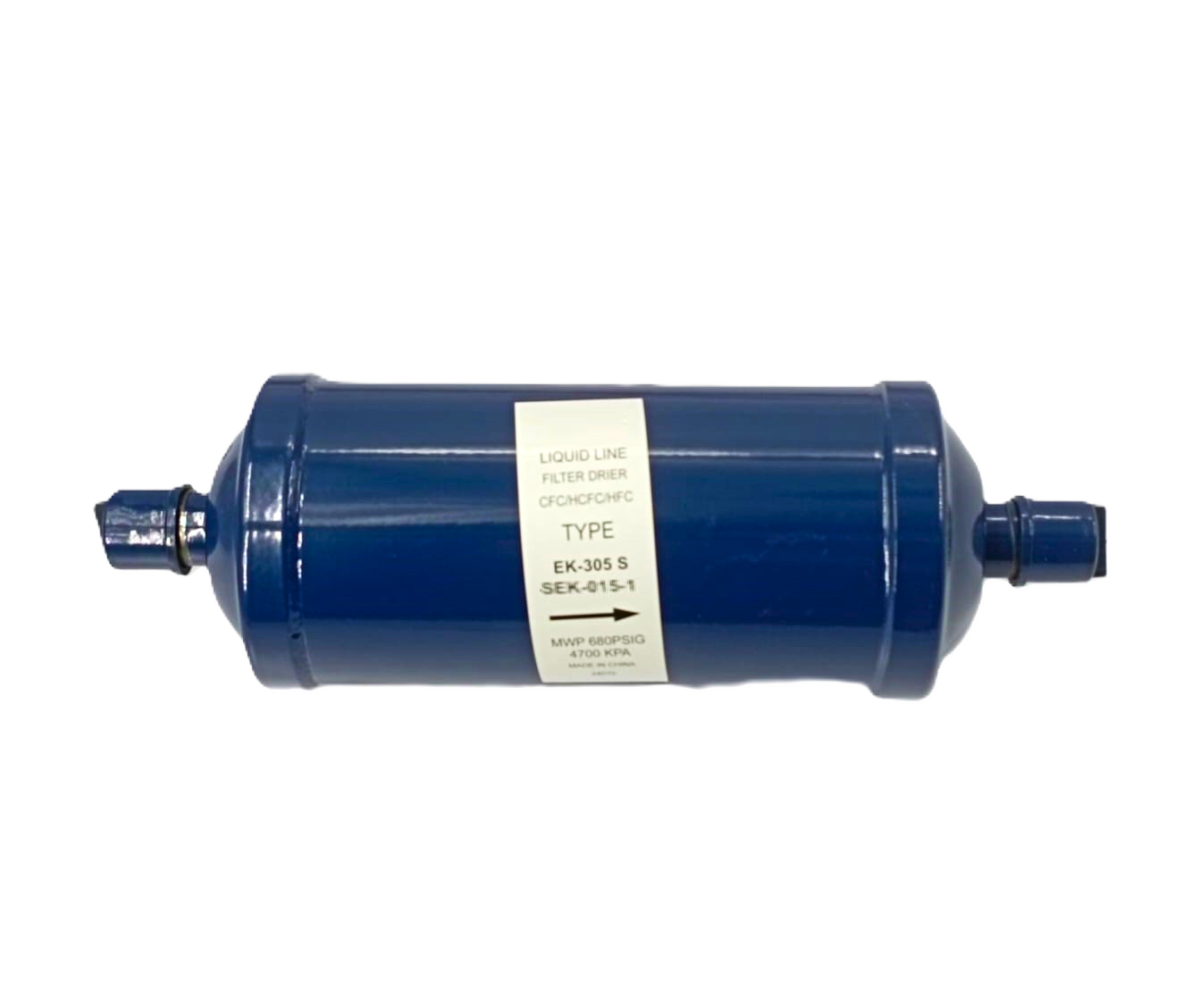

This is an EK-305 S liquid line filter drier. It is a high-capacity component designed for large commercial HVAC and refrigeration systems where a permanent, brazed connection is required.
Core Specifications
- Model: EK-305 S (Part No: SEK-015-1)
- Connection Size: 5/8 inch (15.87 mm).
- Connection Type: ODF Solder (Sweat). This model is brazed directly into the copper lines for a leak-proof, permanent joint.
- Internal Volume: 30 cubic inches. This large “30” series body provides maximum surface area for moisture and acid removal.
- Max Working Pressure: 680 PSIG (4700 KPA), making it safe for use with high-pressure refrigerants like R-410A.
Description
Description
This is an EK-305 S liquid line filter drier. It is a high-capacity component designed for large commercial HVAC and refrigeration systems where a permanent, brazed connection is required.
Core Specifications
- Model: EK-305 S (Part No: SEK-015-1)
- Connection Size: 5/8 inch (15.87 mm).
- Connection Type: ODF Solder (Sweat). This model is brazed directly into the copper lines for a leak-proof, permanent joint.
- Internal Volume: 30 cubic inches. This large “30” series body provides maximum surface area for moisture and acid removal.
- Max Working Pressure: 680 PSIG (4700 KPA), making it safe for use with high-pressure refrigerants like R-410A.
