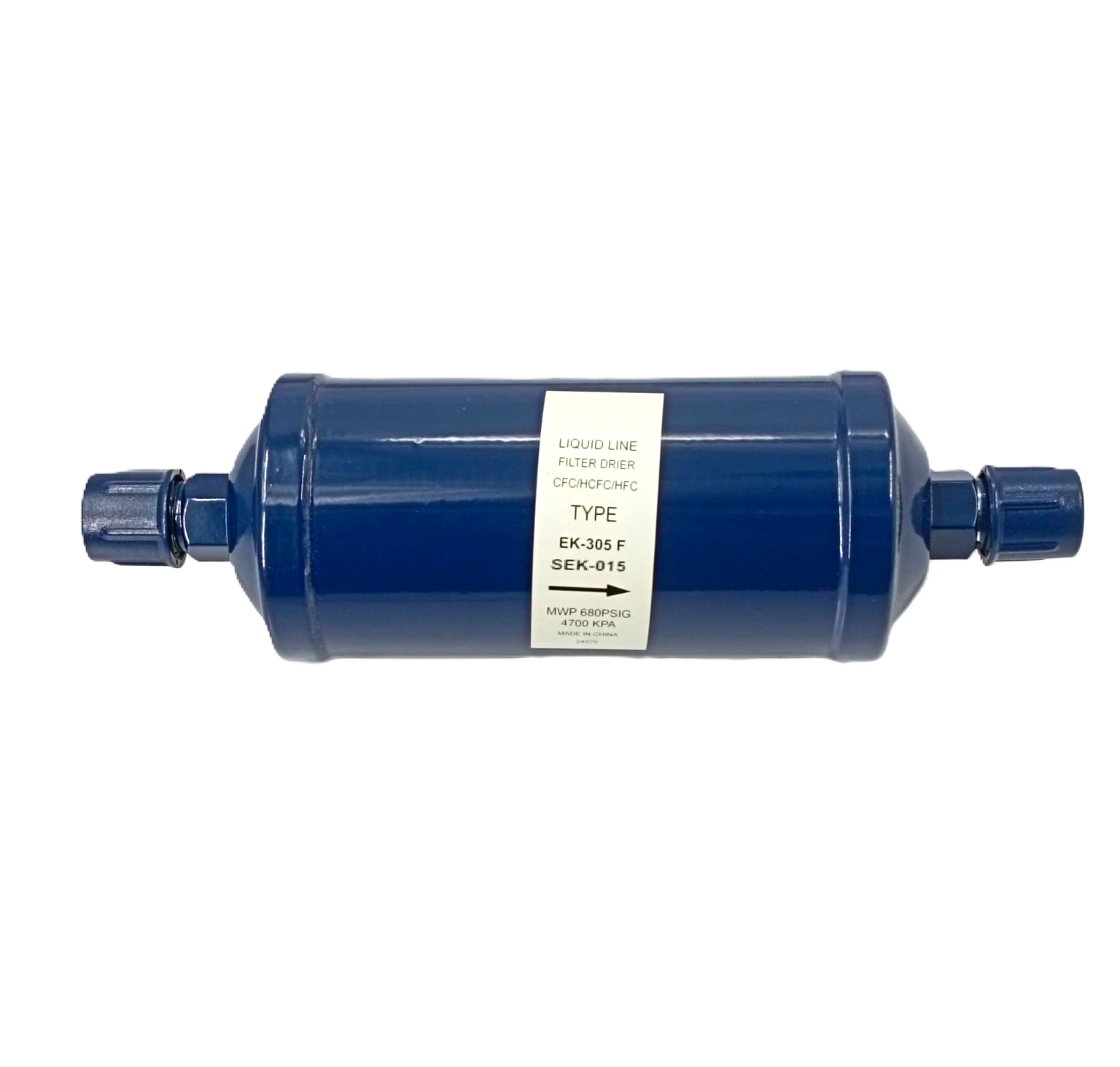

5/8 inch EK-305 F liquid line filter drier : SEK-015
This is an EK-305 F liquid line filter drier. This model features a much larger internal capacity than previous ones we’ve discussed, making it ideal for large-scale commercial HVAC and refrigeration systems.
Core Specifications
- Model: EK-305 F (Part No: SEK-015)
- Connection Size: 5/8 inch (15.87 mm).
- Connection Type: Flare (SAE). It uses threaded nuts for a secure, non-welded mechanical connection.
- Internal Volume: 30 cubic inches. This “30” series body provides massive surface area for moisture and acid removal, significantly extending system protection.
- Max Working Pressure: 680 PSIG (4700 KPA).
Description
Description
This is an EK-305 F liquid line filter drier. This model features a much larger internal capacity than previous ones we’ve discussed, making it ideal for large-scale commercial HVAC and refrigeration systems.
Core Specifications
- Model: EK-305 F (Part No: SEK-015)
- Connection Size: 5/8 inch (15.87 mm).
- Connection Type: Flare (SAE). It uses threaded nuts for a secure, non-welded mechanical connection.
- Internal Volume: 30 cubic inches. This “30” series body provides massive surface area for moisture and acid removal, significantly extending system protection.
- Max Working Pressure: 680 PSIG (4700 KPA).
