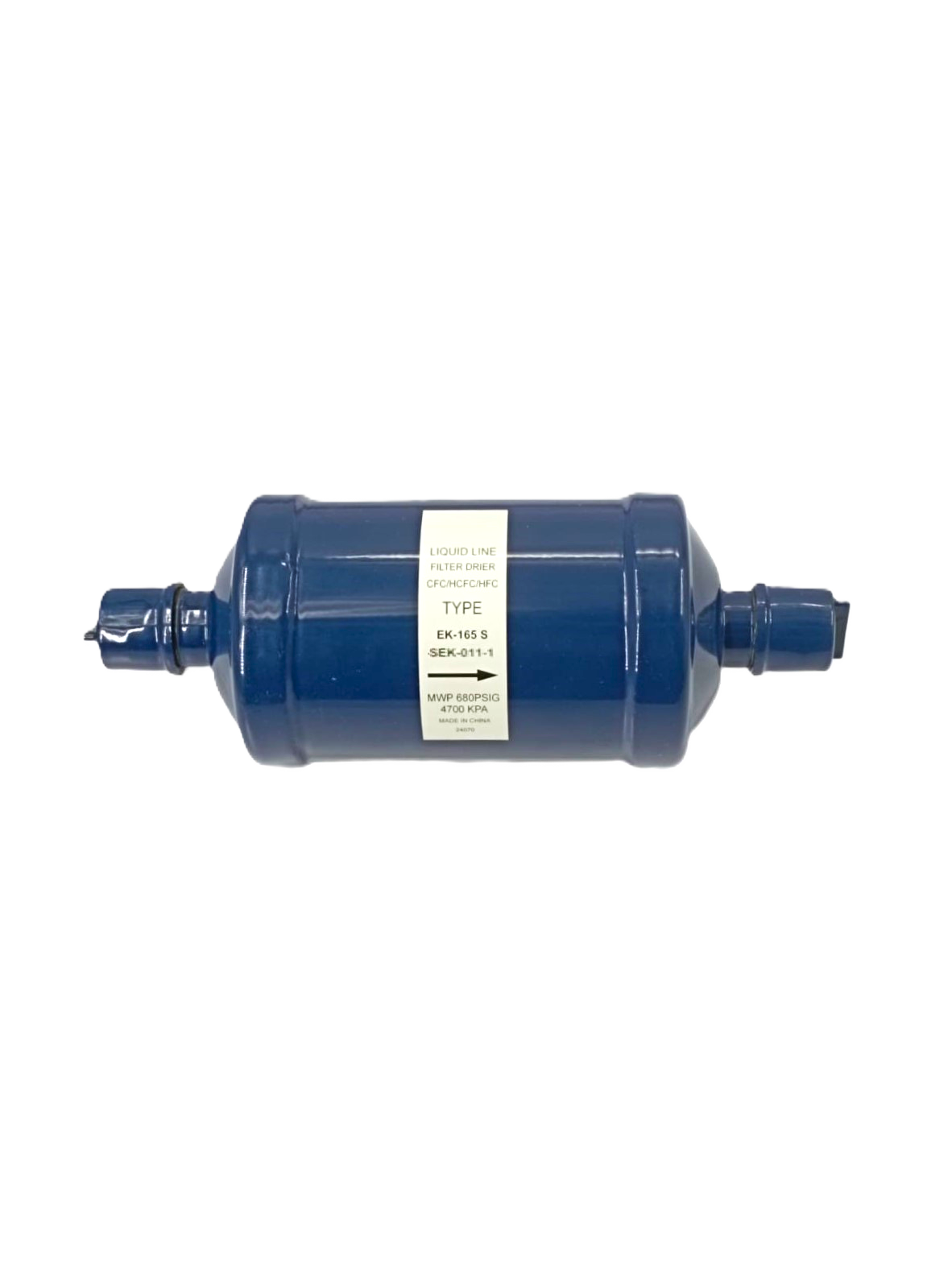

5/8 inch EK-165 S liquid line filter drier : SEK-011-1
This is an EK-165 S liquid line filter drier. It is a high-capacity component used in large commercial air conditioning and refrigeration systems to protect the compressor from moisture, acid, and debris.
Core Specifications
- Model: EK-165 S (Part No: SEK-011-1)
- Connection Size: 5/8 inch (approx. 16 mm).
- Connection Type: ODF Solder (Sweat). This model is brazed directly into the copper refrigerant lines for a permanent, leak-proof seal.
- Internal Volume: 16 cubic inches. This large body provides high-capacity filtration and moisture removal.
- Max Working Pressure: 680 PSIG (4700 KPA), suitable for high-pressure refrigerants like R-410A.
Description
Description
This is an EK-165 S liquid line filter drier. It is a high-capacity component used in large commercial air conditioning and refrigeration systems to protect the compressor from moisture, acid, and debris.
Core Specifications
- Model: EK-165 S (Part No: SEK-011-1)
- Connection Size: 5/8 inch (approx. 16 mm).
- Connection Type: ODF Solder (Sweat). This model is brazed directly into the copper refrigerant lines for a permanent, leak-proof seal.
- Internal Volume: 16 cubic inches. This large body provides high-capacity filtration and moisture removal.
- Max Working Pressure: 680 PSIG (4700 KPA), suitable for high-pressure refrigerants like R-410A.
