3-Pin Oven Switch : RS- 008

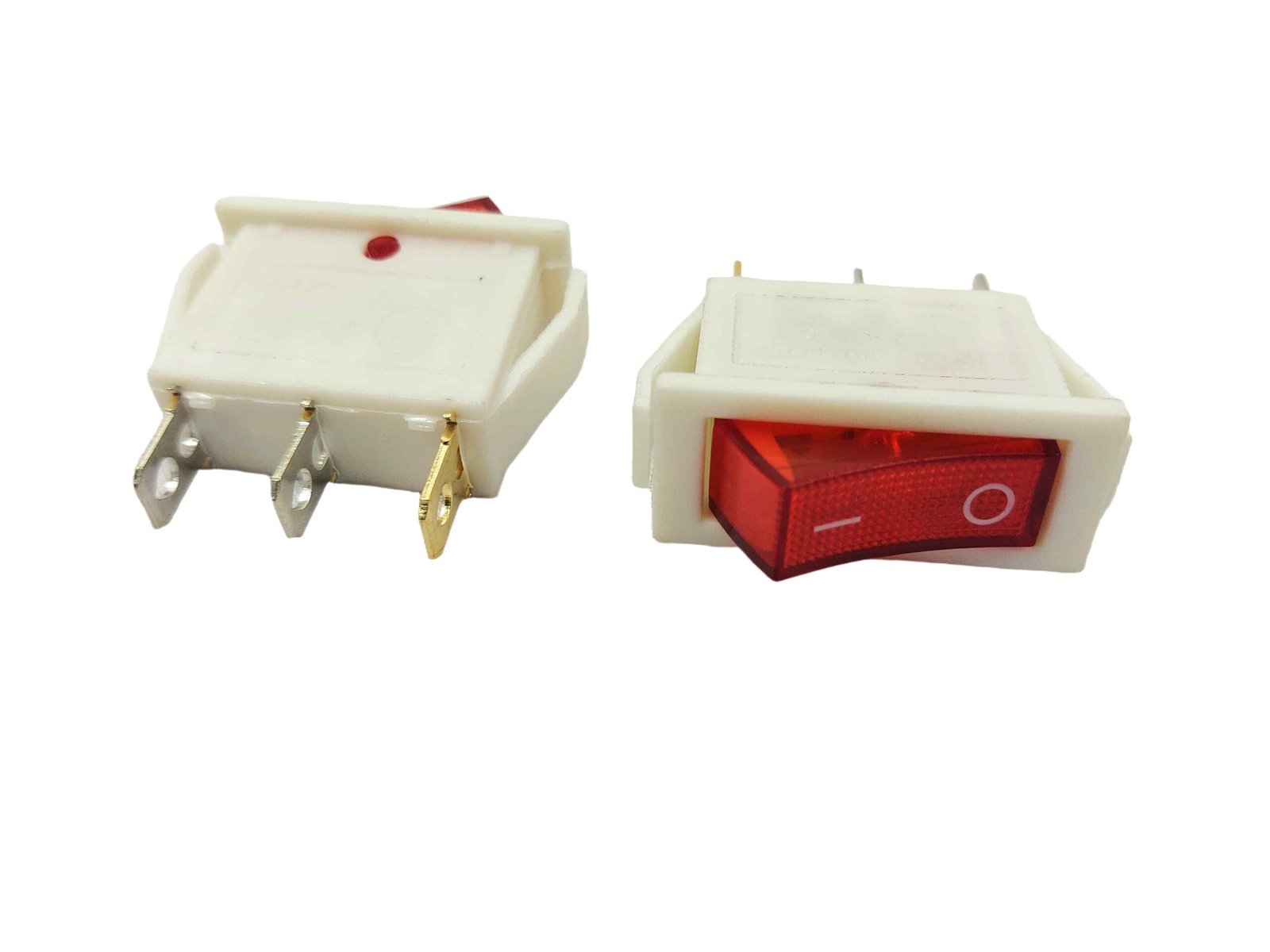

The provided image displays the RS-008, an illuminated rocker switch designed for high-power appliance applications.
Technical Specifications
Based on the visual data and manufacturer markings:
- Model Number: RS-008
- Electrical Rating: 30 Amps (30A) at 250 Volts AC. This high amperage rating is specifically for heavy-duty electrical loads.
- Pin Configuration: 3-Pin layout.
- Switch Type: SPST (Single Pole Single Throw) ON-OFF functionality.
- Illumination: Integrated red neon indicator that lights up when the switch is in the “ON” position.
- Color Profile: Features a white thermoplastic housing with a transparent red rocker actuator.
Description
Description
The provided image displays the RS-008, an illuminated rocker switch designed for high-power appliance applications.
Technical Specifications
Based on the visual data and manufacturer markings:
- Model Number: RS-008
- Electrical Rating: 30 Amps (30A) at 250 Volts AC. This high amperage rating is specifically for heavy-duty electrical loads.
- Pin Configuration: 3-Pin layout.
- Switch Type: SPST (Single Pole Single Throw) ON-OFF functionality.
- Illumination: Integrated red neon indicator that lights up when the switch is in the “ON” position.
- Color Profile: Features a white thermoplastic housing with a transparent red rocker actuator.
