3-Pin Oven Switch : RS- 007

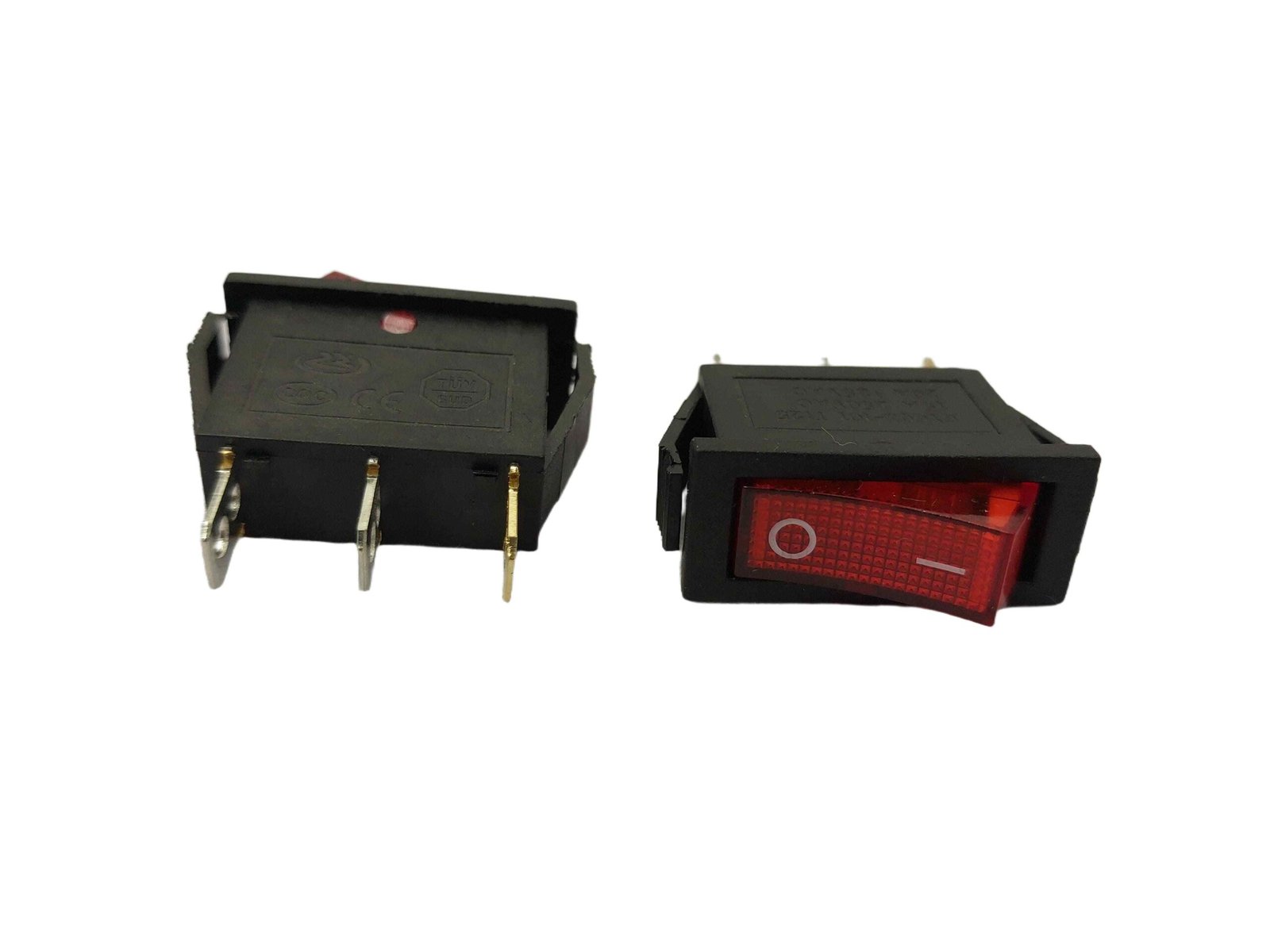

The image shows the RS-007, a high-capacity rocker switch designed for heavy-duty electrical appliances.
Technical Specifications
Based on the product labeling and industry standards:
- Model Number: RS-007
- Electrical Rating: 30 Amps (30A) at 250 Volts AC. This high amperage rating is specifically for heavy loads.
- Pin Configuration: 3-Pin layout.
- Switch Type: SPST (Single Pole Single Throw) ON-OFF with illumination.
- Illumination: Integrated red neon indicator lamp that glows when the switch is in the “ON” position.
- Terminals: Three silver-plated brass spade terminals for standard quick-connect wiring. One pin (typically the gold or specifically marked one) is dedicated to powering the internal lamp.
Description
Description
The image shows the RS-007, a high-capacity rocker switch designed for heavy-duty electrical appliances.
Technical Specifications
Based on the product labeling and industry standards:
- Model Number: RS-007
- Electrical Rating: 30 Amps (30A) at 250 Volts AC. This high amperage rating is specifically for heavy loads.
- Pin Configuration: 3-Pin layout.
- Switch Type: SPST (Single Pole Single Throw) ON-OFF with illumination.
- Illumination: Integrated red neon indicator lamp that glows when the switch is in the “ON” position.
- Terminals: Three silver-plated brass spade terminals for standard quick-connect wiring. One pin (typically the gold or specifically marked one) is dedicated to powering the internal lamp.
