6-Pin Oven Switch : RS- 006

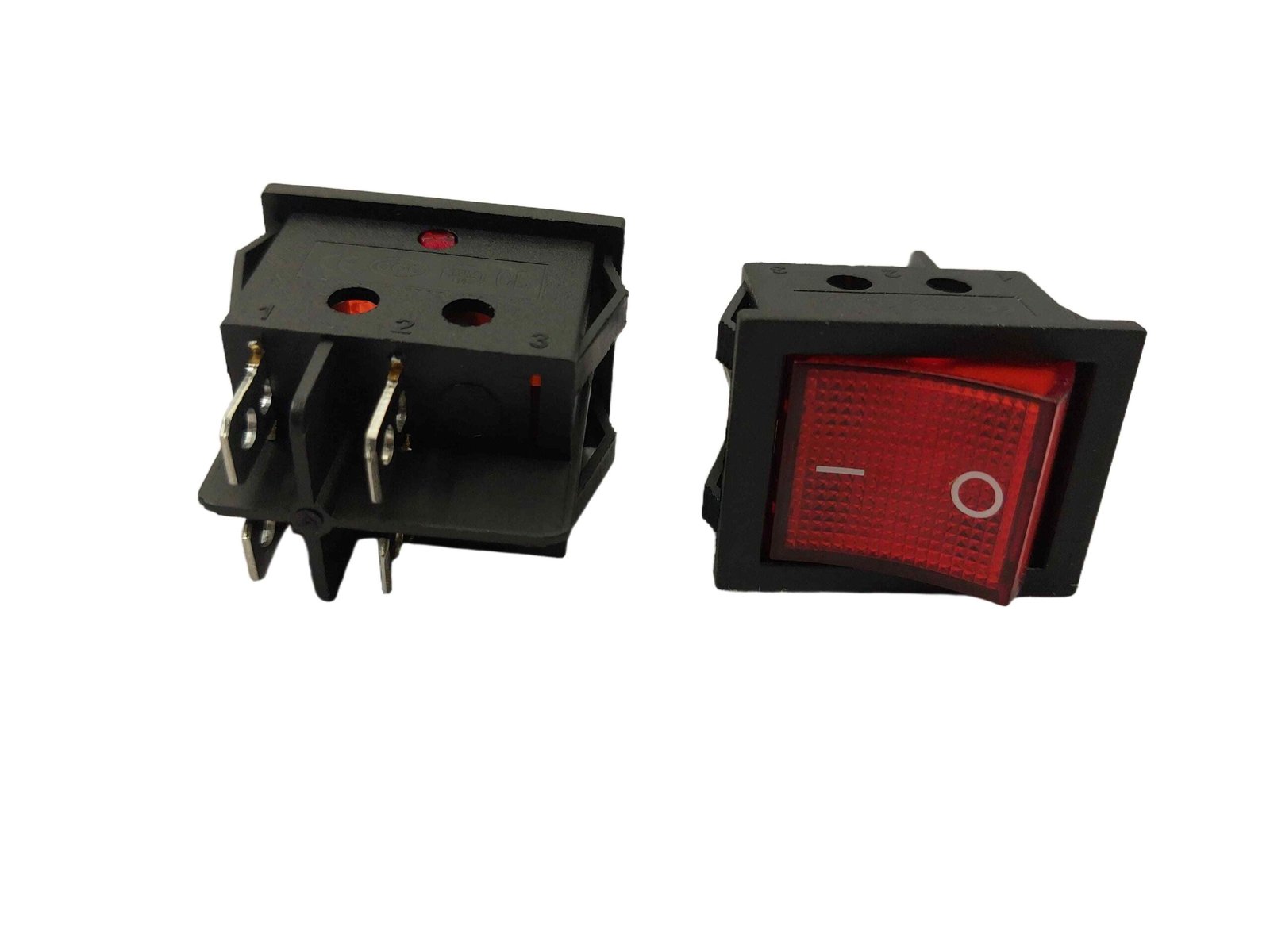

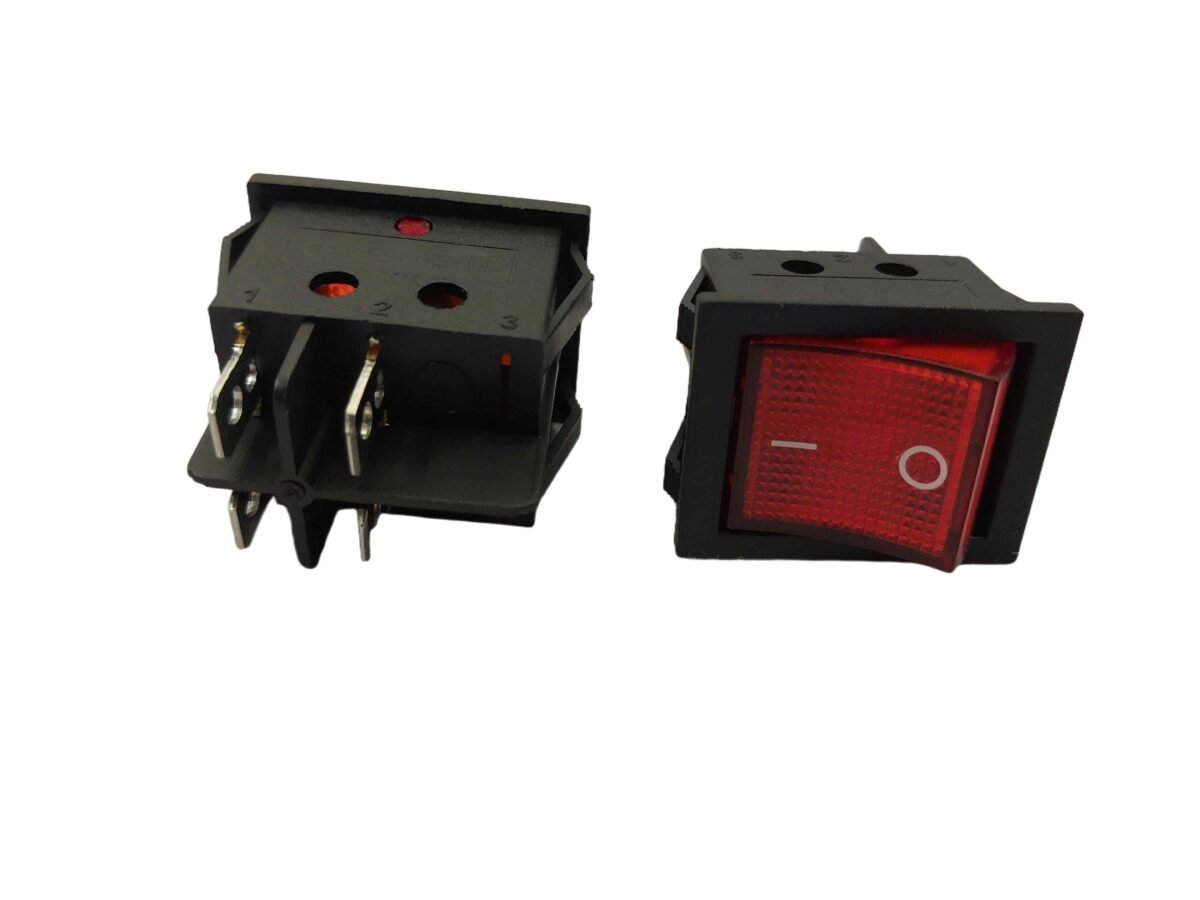

The image features the RS-006, a heavy-duty, high-current rocker switch typically used for demanding household appliances and industrial equipment.
Technical Specifications
Based on the visual markings and industry standards for this model:
- Model Number: RS-006
- Electrical Rating: 32 Amps (32A) at 250 Volts AC. This high rating makes it suitable for “heavy load” appliances that draw significant power.
- Pin Configuration: 6-Pin layout.
- Switch Type: DPDT (Double Pole Double Throw) or DPST (Double Pole Single Throw) with an integrated indicator lamp.
- Construction: Durable black thermoplastic housing (often Polyamide 66) with a red illuminated rocker actuator.
- Terminals: Brass, silver-plated terminals (standard size 6.3 x 0.8 mm) designed for quick-connect spade connectors.
Description
Description
The image features the RS-006, a heavy-duty, high-current rocker switch typically used for demanding household appliances and industrial equipment.
Technical Specifications
Based on the visual markings and industry standards for this model:
- Model Number: RS-006
- Electrical Rating: 32 Amps (32A) at 250 Volts AC. This high rating makes it suitable for “heavy load” appliances that draw significant power.
- Pin Configuration: 6-Pin layout.
- Switch Type: DPDT (Double Pole Double Throw) or DPST (Double Pole Single Throw) with an integrated indicator lamp.
- Construction: Durable black thermoplastic housing (often Polyamide 66) with a red illuminated rocker actuator.
- Terminals: Brass, silver-plated terminals (standard size 6.3 x 0.8 mm) designed for quick-connect spade connectors.
