30W Washing Machine Drain Pump : WDP-011

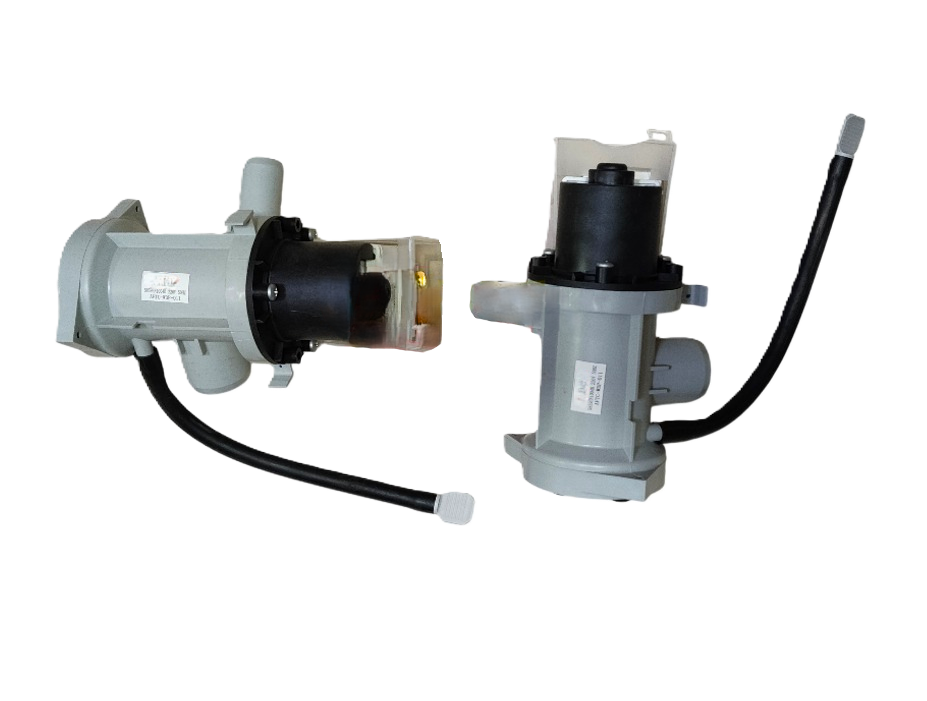

This image provides technical details for the WDP-011 Washing Machine Drain Pump, a vital replacement component used to expel water from automatic washing machines during the drain and spin cycles.
🔍 Technical Specifications
- Model Number: WDP-011.
- Part Number Compatibility: 5859EN1004B (also replaces 5859EN1001B and 5859EN1004J).
- Voltage: AC 220V–240V.
- Frequency: 50/60Hz.
- Power Input: 30W (Output: 9W).
- Current: 0.3A.
- Speed: 3000 RPM.
- Duty Cycle: S3 (typically 10 min ON / 5 min OFF).
⚙️ Physical Construction & Features
- Terminal Type: 6.4mm spade terminals for electrical connection.
- Protective Shield: Features a transparent plastic splash guard to protect the motor from moisture and accidental water contact.
- Housing Design: Durable grey plastic assembly with multiple mounting points and standard-sized inlet/outlet ports.
- Components: Includes a high-performance induction motor designed for quiet and stable operation.
Description
Description
This image provides technical details for the WDP-011 Washing Machine Drain Pump, a vital replacement component used to expel water from automatic washing machines during the drain and spin cycles.
🔍 Technical Specifications
- Model Number: WDP-011.
- Part Number Compatibility: 5859EN1004B (also replaces 5859EN1001B and 5859EN1004J).
- Voltage: AC 220V–240V.
- Frequency: 50/60Hz.
- Power Input: 30W (Output: 9W).
- Current: 0.3A.
- Speed: 3000 RPM.
- Duty Cycle: S3 (typically 10 min ON / 5 min OFF).
⚙️ Physical Construction & Features
- Terminal Type: 6.4mm spade terminals for electrical connection.
- Protective Shield: Features a transparent plastic splash guard to protect the motor from moisture and accidental water contact.
- Housing Design: Durable grey plastic assembly with multiple mounting points and standard-sized inlet/outlet ports.
- Components: Includes a high-performance induction motor designed for quiet and stable operation.
