HM-DP618. Washing Machine Drain Pump : WDP-010

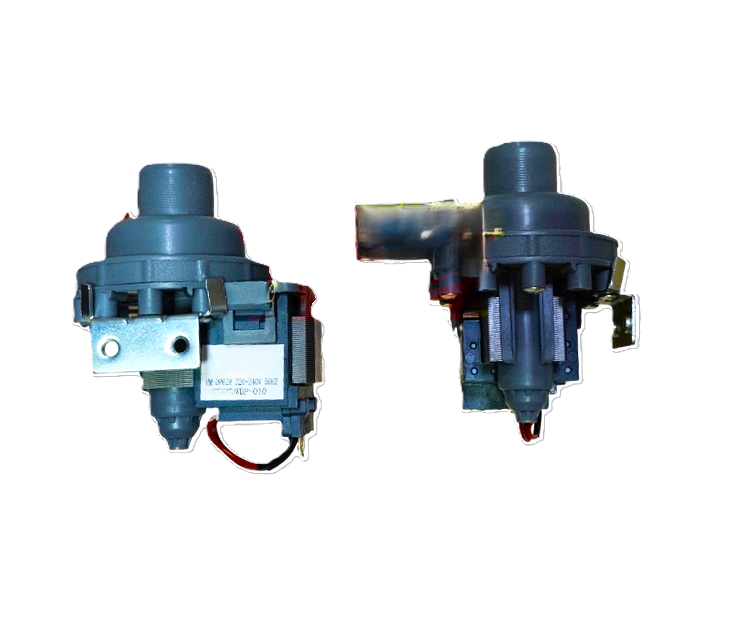

This image features the WDP-010 Washing Machine Drain Pump, a high-quality replacement part specifically designed for automatic washing machines.
🔍 Technical Specifications
- Model Number: WDP-010.
- Replacement Model: HM-DP618.
- Voltage: AC 220V–240V.
- Frequency: 50/60Hz.
- Operation: Standard asynchronous motor designed for efficient water expulsion during the drain cycle.
⚙️ Physical Construction
- Design: Features a standard “snail” housing with multiple mounting points.
- Connections: Includes one large inlet port (approx. 30mm) and one smaller outlet port (approx. 22mm).
- Mounting: Equipped with a metal side-mounting bracket with pre-drilled holes for secure installation.
- Electrical: Features two spade-terminal connectors at the bottom for easy plug-and-play wiring.
Description
Description
This image features the WDP-010 Washing Machine Drain Pump, a high-quality replacement part specifically designed for automatic washing machines.
🔍 Technical Specifications
- Model Number: WDP-010.
- Replacement Model: HM-DP618.
- Voltage: AC 220V–240V.
- Frequency: 50/60Hz.
- Operation: Standard asynchronous motor designed for efficient water expulsion during the drain cycle.
⚙️ Physical Construction
- Design: Features a standard “snail” housing with multiple mounting points.
- Connections: Includes one large inlet port (approx. 30mm) and one smaller outlet port (approx. 22mm).
- Mounting: Equipped with a metal side-mounting bracket with pre-drilled holes for secure installation.
- Electrical: Features two spade-terminal connectors at the bottom for easy plug-and-play wiring.
