30W washing machines Drain Pump: IV-011

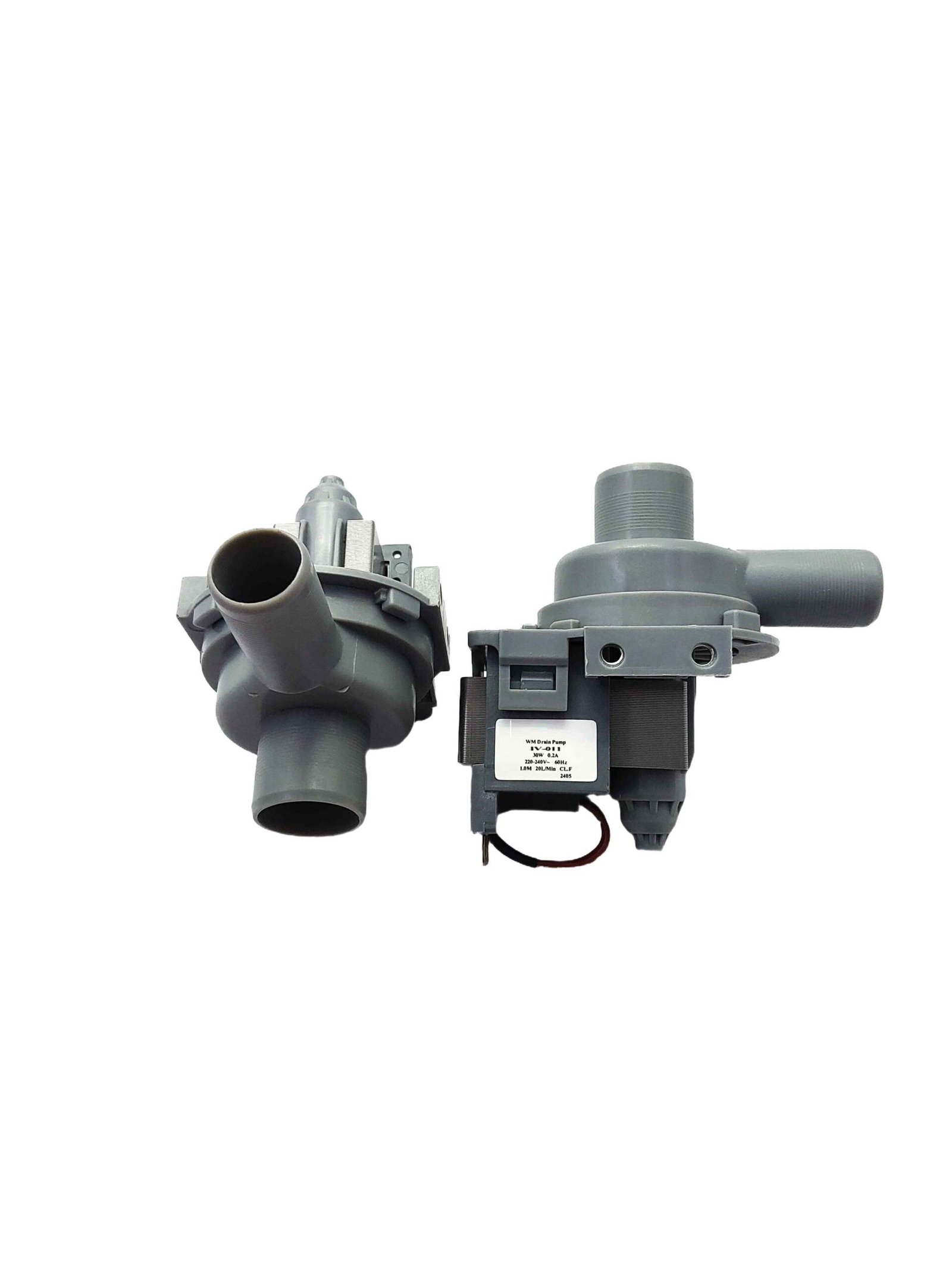

This image provides the technical specifications for the IV-11 WM Drain Pump, a replacement part used in washing machines to expel water during the drain cycle.
š Technical Specifications
- Model Number: IV-11
- Voltage:Ā 220Vā240V AC
- Frequency:Ā 50/60Hz
- Power Output:Ā 30W
- Current:Ā 0.2A
- Flow Rate:Ā 20 Liters per minute (20L/min)
- Lift Height:Ā 1.0 Meter (1.0M)
- Insulation Class:Ā Class F (CL.F)
- Duty Cycle: 240S (indicates maximum continuous operation time)
āļø Physical Construction
- Material:Ā High-durability plastic housing.
- Design:Ā Features a standard three-bolt mounting flange and two barbed hose connections (inlet and outlet).
- Wiring:Ā Includes a pre-attached wiring harness for electrical connection to the machine’s control board.
Description
Description
This image provides the technical specifications for the IV-11 WM Drain Pump, a replacement part used in washing machines to expel water during the drain cycle.
š Technical Specifications
- Model Number: IV-11
- Voltage:Ā 220Vā240V AC
- Frequency:Ā 50/60Hz
- Power Output:Ā 30W
- Current:Ā 0.2A
- Flow Rate:Ā 20 Liters per minute (20L/min)
- Lift Height:Ā 1.0 Meter (1.0M)
- Insulation Class:Ā Class F (CL.F)
- Duty Cycle: 240S (indicates maximum continuous operation time)
āļø Physical Construction
- Material:Ā High-durability plastic housing.
- Design:Ā Features a standard three-bolt mounting flange and two barbed hose connections (inlet and outlet).
- Wiring:Ā Includes a pre-attached wiring harness for electrical connection to the machine’s control board.
