35W washing machines Drain Pump Double Motor : IV-012

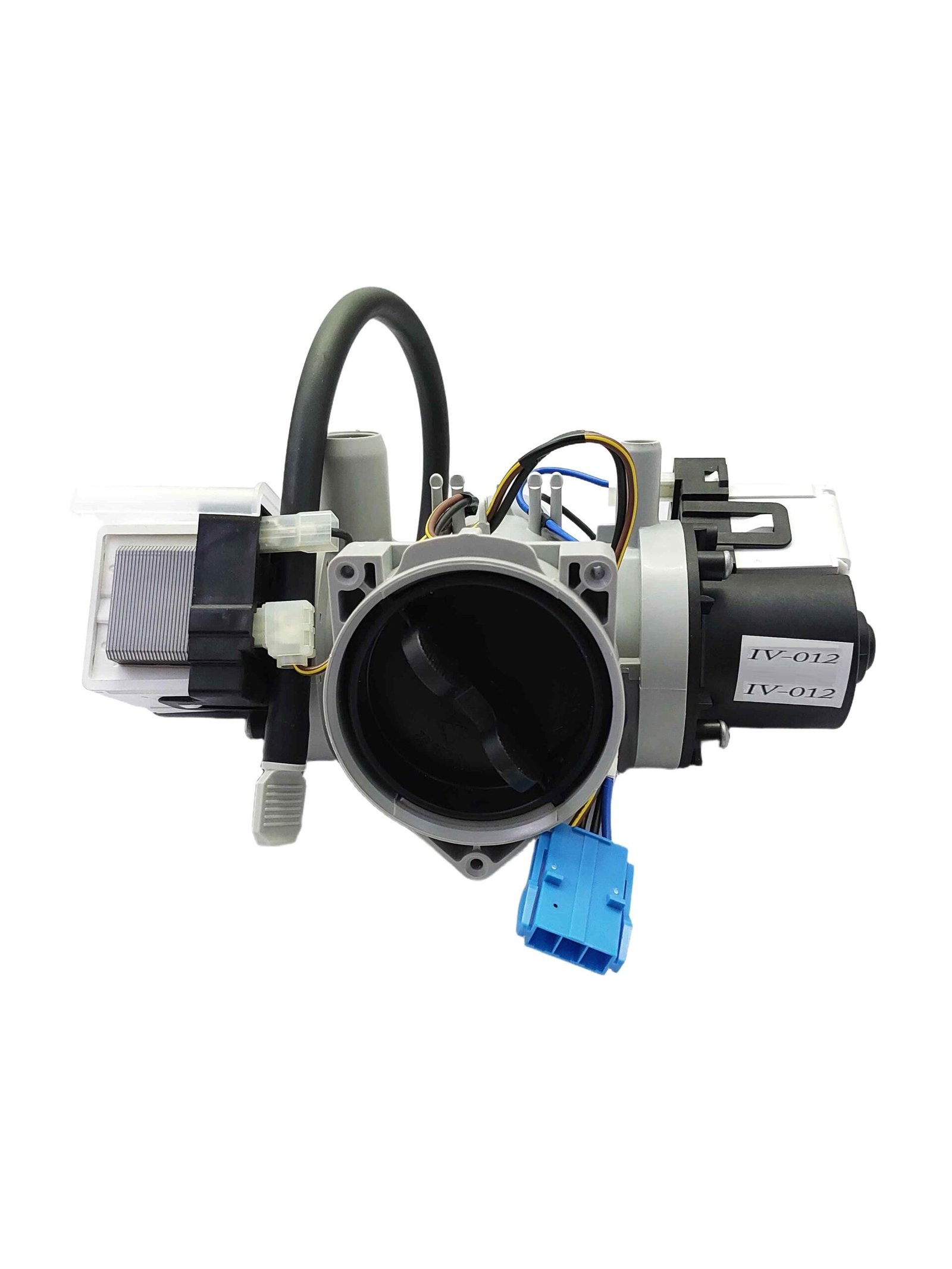

This image provides details for the IV-012 WM Drain Pump Double Motor, a specialized replacement part for washing machines that require dual-motor drainage systems.
🔍 Technical Specifications
- Model Number: IV-012
- Type: WM Drain Pump (Double Motor)
- Voltage: AC 220V–240V
- Power: 35W
- Configuration: Dual-motor setup, typically used in high-efficiency or large-capacity drum washing machines where one motor manages drainage and the other may handle recirculation.
⚙️ Physical Features
- Housing: Large central plastic housing with a threaded front for a lint filter/debris trap (cap not shown).
- Wiring: Includes a primary blue multi-pin connector and several secondary spade-terminal wires (yellow and blue).
- Hose Connections: Features multiple inlet and outlet ports of varying diameters for connection to the tub and external drain hose.
- Motors: Two separate induction motors mounted to a single manifold.
Description
Description
This image provides details for the IV-012 WM Drain Pump Double Motor, a specialized replacement part for washing machines that require dual-motor drainage systems.
🔍 Technical Specifications
- Model Number: IV-012
- Type: WM Drain Pump (Double Motor)
- Voltage: AC 220V–240V
- Power: 35W
- Configuration: Dual-motor setup, typically used in high-efficiency or large-capacity drum washing machines where one motor manages drainage and the other may handle recirculation.
⚙️ Physical Features
- Housing: Large central plastic housing with a threaded front for a lint filter/debris trap (cap not shown).
- Wiring: Includes a primary blue multi-pin connector and several secondary spade-terminal wires (yellow and blue).
- Hose Connections: Features multiple inlet and outlet ports of varying diameters for connection to the tub and external drain hose.
- Motors: Two separate induction motors mounted to a single manifold.
