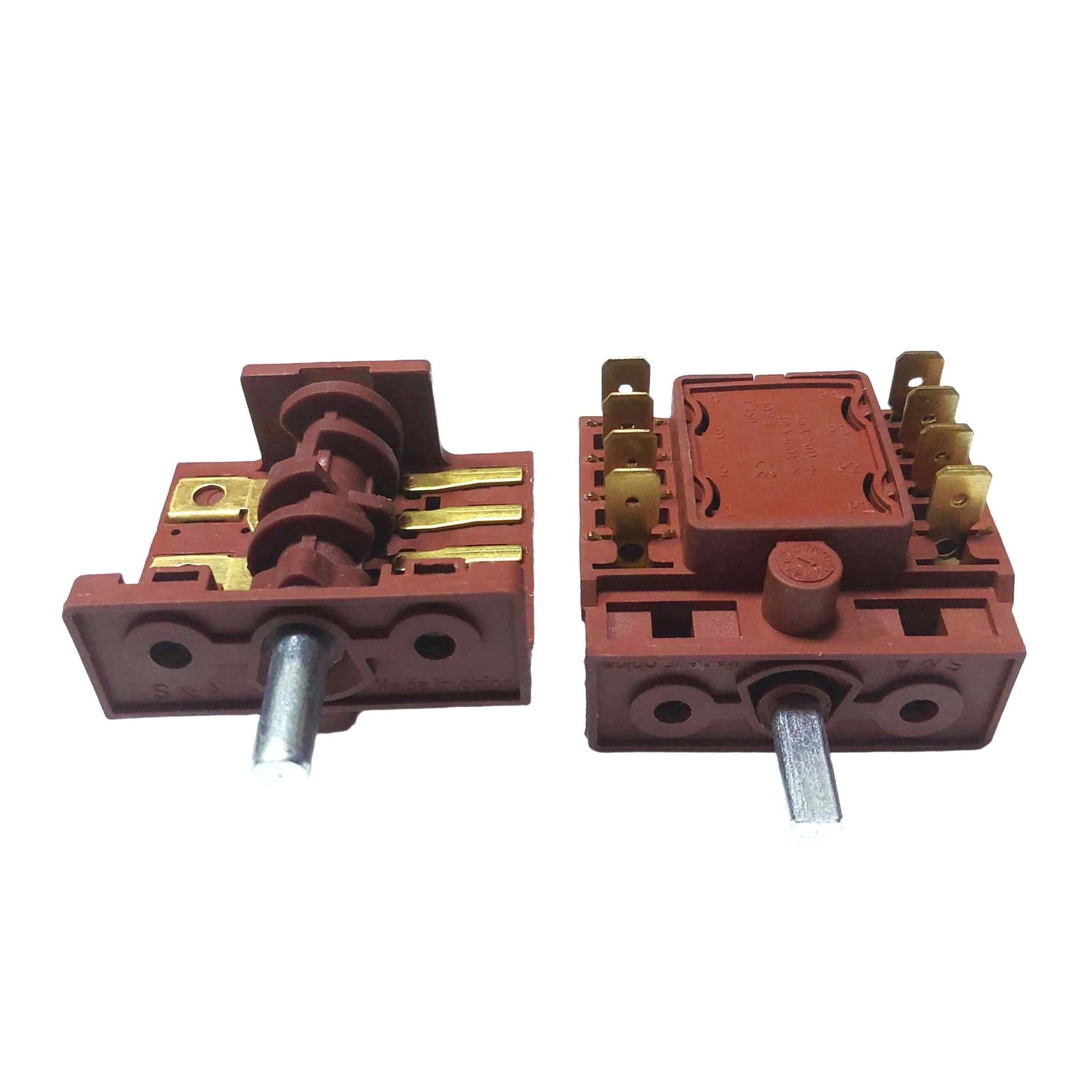

5-pin rotary selector switch : RS-022
This is a 5-pin rotary selector switch (Model RS-022) used to control heating functions and power levels in electric ovens and other high-power heating appliances.
Technical Specifications
Based on the markings in your image and industrial data for this series:
- Model Number: RS-022.
- Electrical Ratings:
- 16A – 250V AC: Standard for residential oven heating elements.
- 10A – 400V AC: Higher voltage rating for some commercial or industrial configurations.
- Pin Configuration: 5-pin output. This allows for a 5-position operation (e.g., Off plus four functional modes like Top Heat, Bottom Heat, Grill, or Convection Fan).
- Shaft Design: Features a D-shaped metal shaft (flat on one side) to ensure the control knob fits securely and indicates the correct setting.
- Material: The body is constructed from high-temperature bakelite or reinforced plastic to safely handle internal heat and prevent melting during operation.
- Temperature Rating: Typically rated T150 (suitable for ambient temperatures up to 150°C), which is common for this series of switches
Description
Description
This is a 5-pin rotary selector switch (Model RS-022) used to control heating functions and power levels in electric ovens and other high-power heating appliances.
Technical Specifications
Based on the markings in your image and industrial data for this series:
- Model Number: RS-022.
- Electrical Ratings:
- 16A – 250V AC: Standard for residential oven heating elements.
- 10A – 400V AC: Higher voltage rating for some commercial or industrial configurations.
- Pin Configuration: 5-pin output. This allows for a 5-position operation (e.g., Off plus four functional modes like Top Heat, Bottom Heat, Grill, or Convection Fan).
- Shaft Design: Features a D-shaped metal shaft (flat on one side) to ensure the control knob fits securely and indicates the correct setting.
- Material: The body is constructed from high-temperature bakelite or reinforced plastic to safely handle internal heat and prevent melting during operation.
- Temperature Rating: Typically rated T150 (suitable for ambient temperatures up to 150°C), which is common for this series of switches
