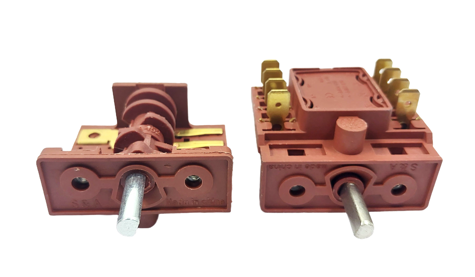

8-pin rotary selector switch : RS-023
This is an 8-pin rotary selector switch, model RS-023, used to control multiple cooking functions in electric ovens and high-power heating appliances.
Technical Specifications
- Model Number: RS-023.
- Pin Configuration: 8-pin output. This allows for a wide range of cooking modes, such as selecting between top heat, bottom heat, grill, convection fan, and rotisserie in various combinations.
- Electrical Rating: 16A at 250V AC. This high-capacity rating is required to safely manage the electrical load of heavy-duty heating elements.
- Shaft Design: Features a durable metal shaft for mounting a control knob.
- Construction: The body is made of heat-resistant material (typically bakelite or glass-fiber reinforced nylon) designed to withstand the high ambient temperatures inside an oven’s control panel.
Description
Description
This is an 8-pin rotary selector switch, model RS-023, used to control multiple cooking functions in electric ovens and high-power heating appliances.
Technical Specifications
- Model Number: RS-023.
- Pin Configuration: 8-pin output. This allows for a wide range of cooking modes, such as selecting between top heat, bottom heat, grill, convection fan, and rotisserie in various combinations.
- Electrical Rating: 16A at 250V AC. This high-capacity rating is required to safely manage the electrical load of heavy-duty heating elements.
- Shaft Design: Features a durable metal shaft for mounting a control knob.
- Construction: The body is made of heat-resistant material (typically bakelite or glass-fiber reinforced nylon) designed to withstand the high ambient temperatures inside an oven’s control panel.
