70W. 10MM Waterproof. Spin Motor Golden:WSM-021

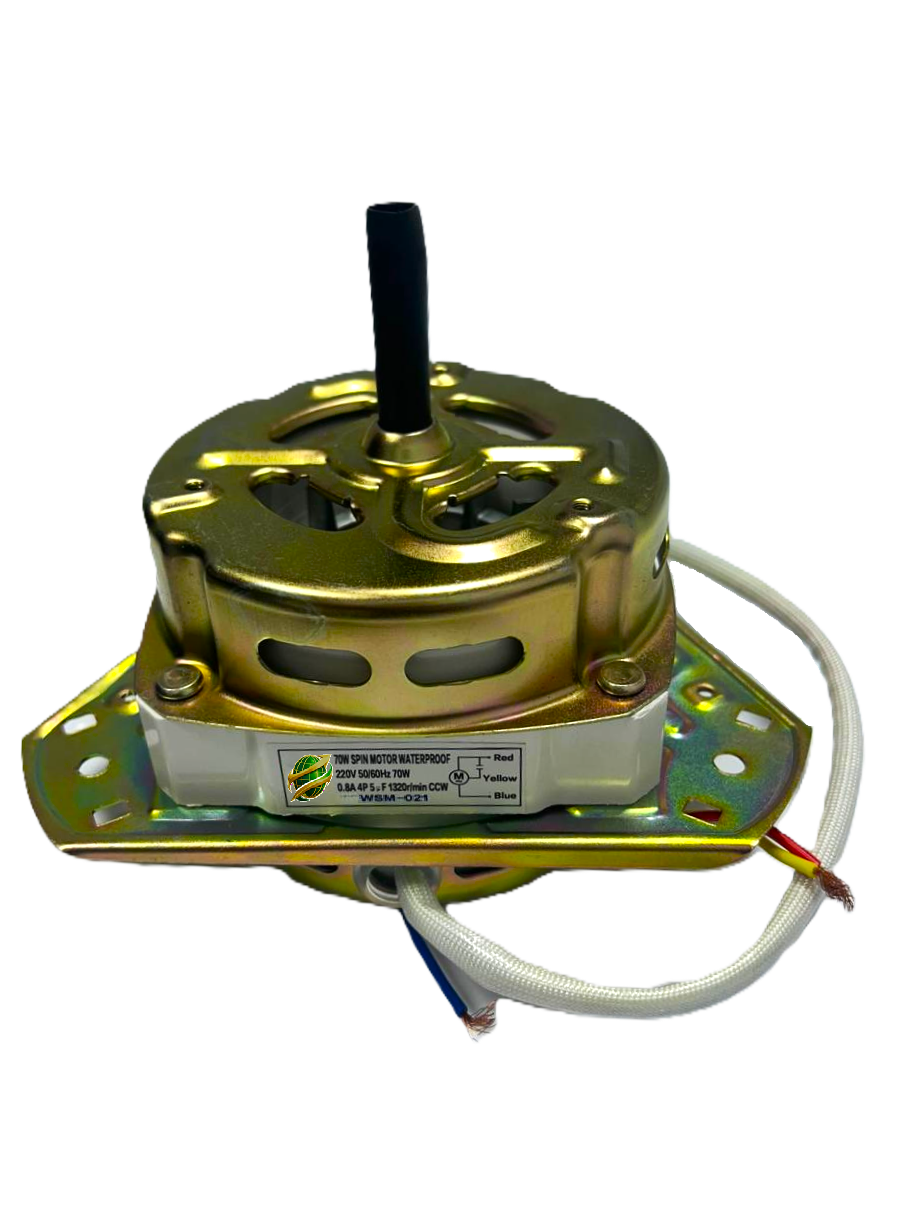

This image shows an WSM-021 Spin Motor Golden, a waterproof replacement part for the dryer section of semi-automatic washing machines.
🛠️ Technical Specifications
Based on the product label and description:
- Model Number: WSM-021.
- Power Output: 70W.
- Shaft Diameter: 10mm (standard for this series).
- Voltage/Frequency: 220V / 50Hz/60Hz.
- Capacitance: 5UF/ 450V Class B.
- Rotation: 4P / 1320 rpm / CCW (Counter-Clockwise).
- Protection: Rated as Waterproof.
🔍 Key Features
- Build: Metallic housing with a “Golden” anti-corrosive coating to resist rust in wet laundry environments.
- Mounting: Universal triangular base designed for easy installation across various top-loading brands.
- Performance: A 70W motor optimized for the high-speed spin/drying cycle of a washing machine.
🔌 Wiring Schematic (Per Label)
- Red: Main power line.
- Yellow: Capacitor connection.
- Blue: Capacitor and line connection.
Description
Description
This image shows an WSM-021 Spin Motor Golden, a waterproof replacement part for the dryer section of semi-automatic washing machines.
🛠️ Technical Specifications
Based on the product label and description:
- Model Number: WSM-021.
- Power Output: 70W.
- Shaft Diameter: 10mm (standard for this series).
- Voltage/Frequency: 220V / 50Hz/60Hz.
- Capacitance: 5UF/ 450V Class B.
- Rotation: 4P / 1320 rpm / CCW (Counter-Clockwise).
- Protection: Rated as Waterproof.
🔍 Key Features
- Build: Metallic housing with a “Golden” anti-corrosive coating to resist rust in wet laundry environments.
- Mounting: Universal triangular base designed for easy installation across various top-loading brands.
- Performance: A 70W motor optimized for the high-speed spin/drying cycle of a washing machine.
🔌 Wiring Schematic (Per Label)
- Red: Main power line.
- Yellow: Capacitor connection.
- Blue: Capacitor and line connection.
