90W. Waterproof. Spin Motor Golden: WSM-022

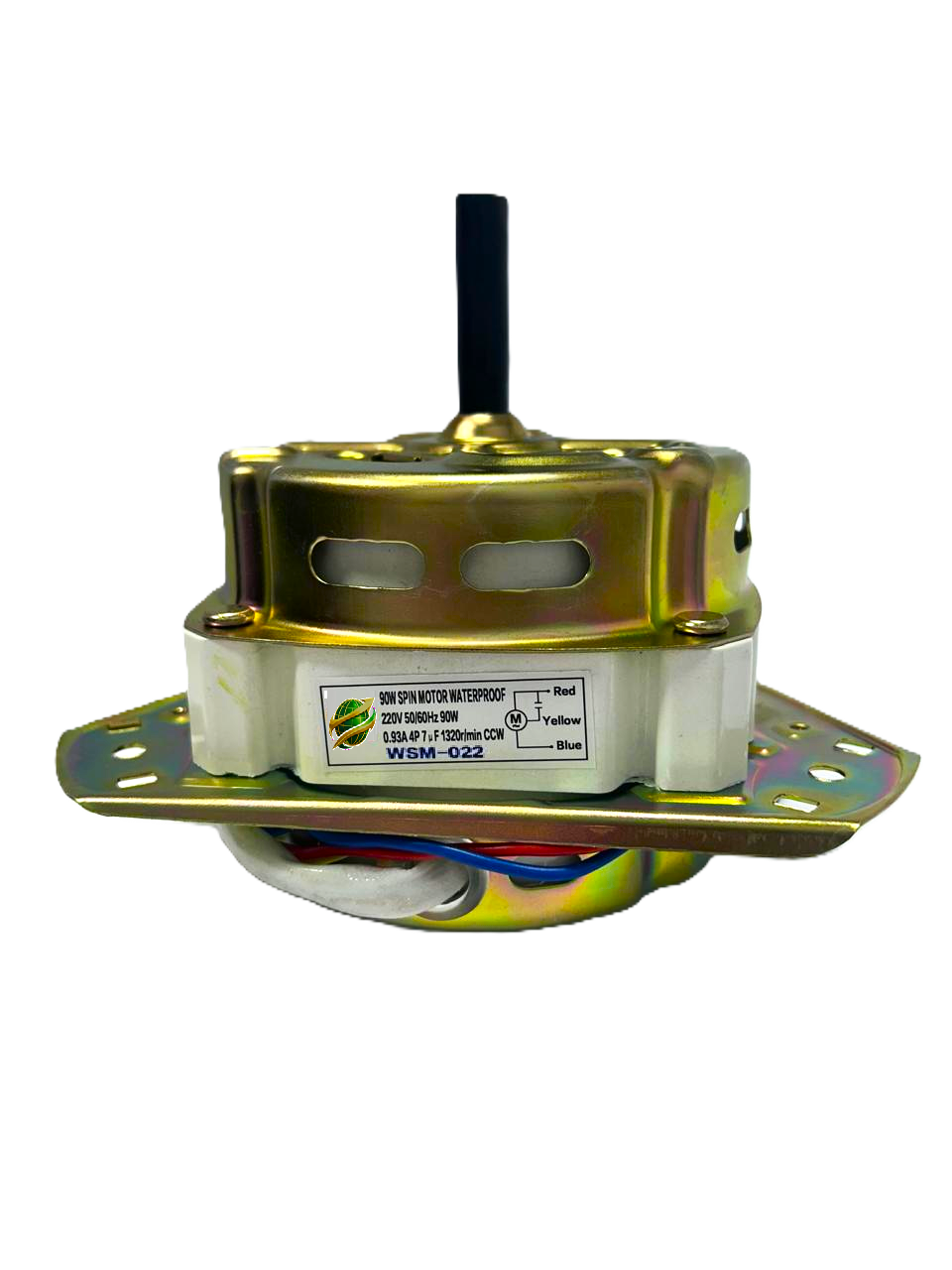

This image shows an WSM-022 Spin Motor Golden, a waterproof replacement part for the dryer section of semi-automatic washing machines.
🛠️ Technical Specifications
Based on the product label and description:
- Model Number: WSM-022.
- Power Output: 90W.
- Shaft Diameter/Length: 26MM (as indicated in the image text).
- Voltage/Frequency: 220V / 50Hz/60Hz.
- Capacitance: 7UF/ 450V Class B.
- Current: 0.93A.
- Rotation: 4P / 1320 r/min / CCW (Counter-Clockwise).
- Protection: Rated as Waterproof.
🔍 Key Features- Build: Metallic housing with a “Golden” anti-corrosive coating for enhanced durability in wet laundry environments.
- Mounting: Universal triangular base designed for easy installation in various top-loading brands.
- Application: A high-speed motor specifically designed for the spin (dryer) cycle.
🔌 Wiring Schematic (Per Label)- Red: Main power line.
- Yellow: Capacitor connection.
- Blue: Capacitor and line connection.
Description
Description
This image shows an WSM-022 Spin Motor Golden, a waterproof replacement part for the dryer section of semi-automatic washing machines.
🛠️ Technical Specifications
Based on the product label and description:
- Model Number: WSM-022.
- Power Output: 90W.
- Shaft Diameter/Length: 26MM (as indicated in the image text).
- Voltage/Frequency: 220V / 50Hz/60Hz.
- Capacitance: 7UF/ 450V Class B.
- Current: 0.93A.
- Rotation: 4P / 1320 r/min / CCW (Counter-Clockwise).
- Protection: Rated as Waterproof.
🔍 Key Features- Build: Metallic housing with a “Golden” anti-corrosive coating for enhanced durability in wet laundry environments.
- Mounting: Universal triangular base designed for easy installation in various top-loading brands.
- Application: A high-speed motor specifically designed for the spin (dryer) cycle.
🔌 Wiring Schematic (Per Label)- Red: Main power line.
- Yellow: Capacitor connection.
- Blue: Capacitor and line connection.
