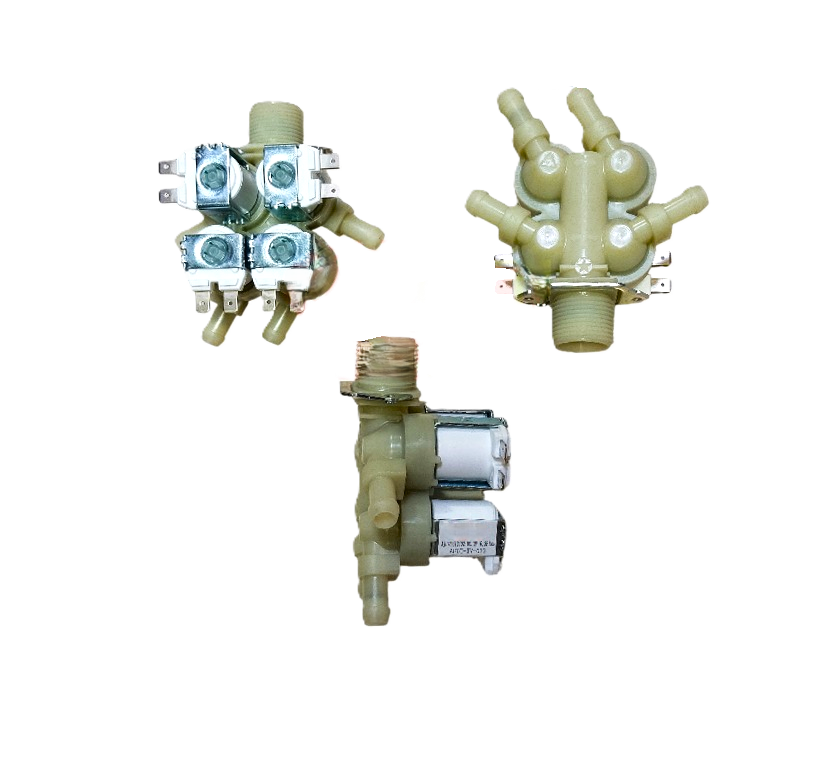

LG automatic washing machines Washing Machine Inlet Valve : IV-023
This component is the IV-023 Washing Machine Inlet Valve, a genuine replacement part specifically designed for LG automatic washing machines.
🔍 Technical Specifications
- Model Number: IV-023 (Part No. AJU75412402).
- Voltage: DC 12V (Direct Current).
- Pin Configuration: 6.3 Pins (specifically a 3-pin electrical connector).
- Valve Type: Quad solenoid (4-way) inlet valve.
- Operation: Normally Closed (N/C), meaning it only opens when powered to allow water into the drum.
⚙️ Physical Construction
- Configuration: 1 Way In, 4 Ways Out.
- Inlet Connection: Standard G3/4″ threaded male connector.
- Outlet Ports: Four ribbed plastic hose barbs designed to direct water to different compartments (e.g., pre-wash, main wash, bleach, and softener).
- Material: Constructed from high-quality, corrosion-resistant plastic with durable copper magnetic coils
Description
Description
This component is the IV-023 Washing Machine Inlet Valve, a genuine replacement part specifically designed for LG automatic washing machines.
🔍 Technical Specifications
- Model Number: IV-023 (Part No. AJU75412402).
- Voltage: DC 12V (Direct Current).
- Pin Configuration: 6.3 Pins (specifically a 3-pin electrical connector).
- Valve Type: Quad solenoid (4-way) inlet valve.
- Operation: Normally Closed (N/C), meaning it only opens when powered to allow water into the drum.
⚙️ Physical Construction
- Configuration: 1 Way In, 4 Ways Out.
- Inlet Connection: Standard G3/4″ threaded male connector.
- Outlet Ports: Four ribbed plastic hose barbs designed to direct water to different compartments (e.g., pre-wash, main wash, bleach, and softener).
- Material: Constructed from high-quality, corrosion-resistant plastic with durable copper magnetic coils
