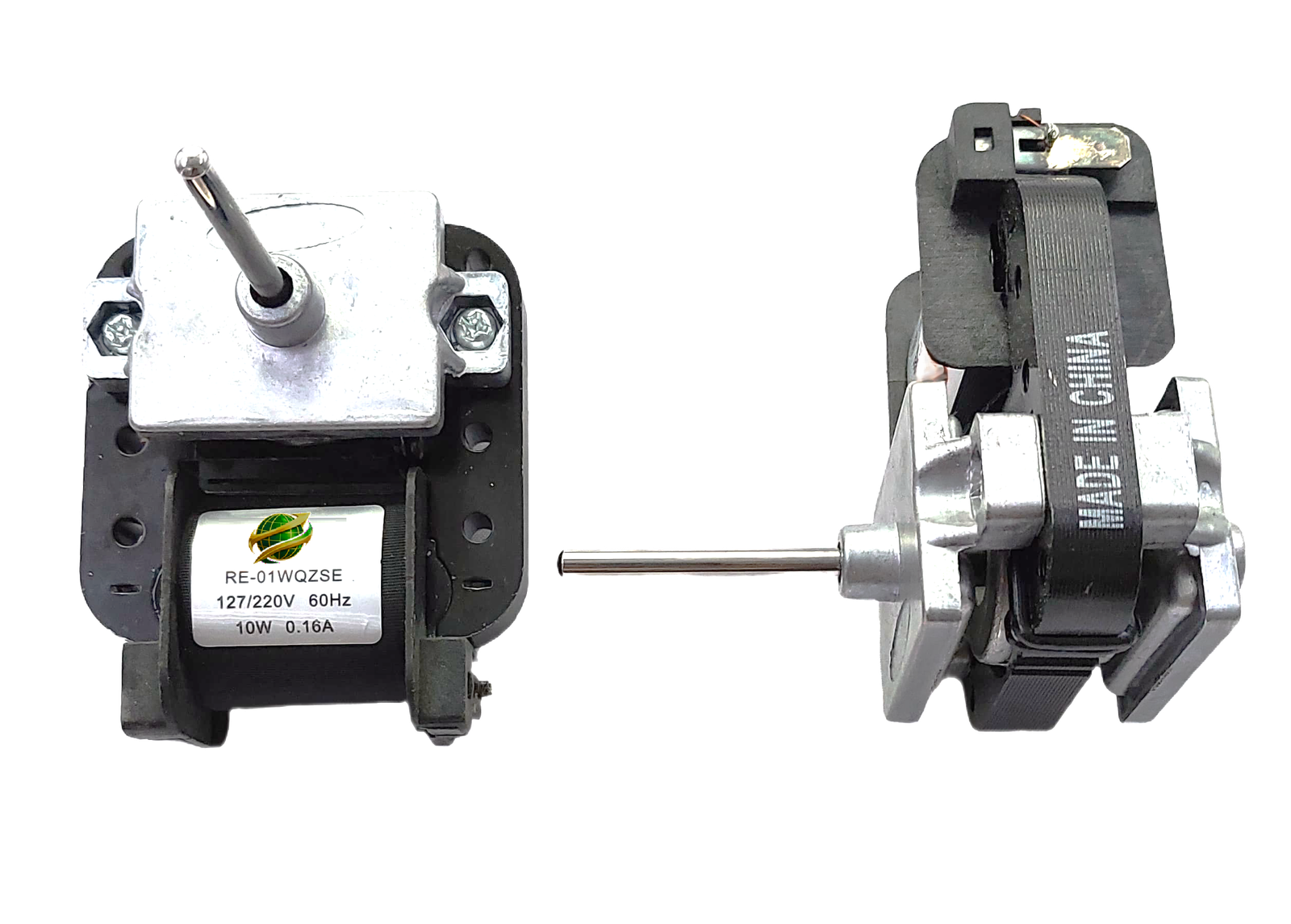

RE-01WT52. 127/220V.10W. REF. Samsung Evaporator Fan Motor. SAMR-009-1
Based on the image provided, here are the full details for thisĀ Samsung Refrigerator Evaporator Fan Motor.
Technical Specifications
- Model Number: SAMR-009-1 (Samsung RE-01WT52)
- Reference Code:Ā RE-01WQZSE
- Voltage:Ā 127V / 220V AC (Dual-voltage compatible)
- Power:Ā 10 Watts
- Current:Ā 0.16 Amps
- Frequency:Ā 60 Hz
- Origin: Made in China
Physical Features
- Motor Type:Ā Heavy-duty C-frame shaded-pole AC motor.
- Design:Ā Features a black plastic housing with a sturdy metal core for heat dissipation.
- Shaft:Ā Features a single long, smooth shaft designed to hold a standard Samsung evaporator fan blade.
- Mounting:Ā Integrated four-hole mounting bracket for secure attachment to the evaporator housing.
- Electrical: Includes two male spade terminals on the coil for quick and easy wiring.
Primary Application
- Samsung Refrigerators:Ā Primarily used as an evaporator fan motor to circulate cold air through the freezer or refrigerator compartments. It is a specific replacement part for theĀ RE-01WT52 series used in many Samsung “No-Frost” models.
Description
Description
Based on the image provided, here are the full details for thisĀ Samsung Refrigerator Evaporator Fan Motor.
Technical Specifications
- Model Number: SAMR-009-1 (Samsung RE-01WT52)
- Reference Code:Ā RE-01WQZSE
- Voltage:Ā 127V / 220V AC (Dual-voltage compatible)
- Power:Ā 10 Watts
- Current:Ā 0.16 Amps
- Frequency:Ā 60 Hz
- Origin: Made in China
Physical Features
- Motor Type:Ā Heavy-duty C-frame shaded-pole AC motor.
- Design:Ā Features a black plastic housing with a sturdy metal core for heat dissipation.
- Shaft:Ā Features a single long, smooth shaft designed to hold a standard Samsung evaporator fan blade.
- Mounting:Ā Integrated four-hole mounting bracket for secure attachment to the evaporator housing.
- Electrical: Includes two male spade terminals on the coil for quick and easy wiring.
Primary Application
- Samsung Refrigerators:Ā Primarily used as an evaporator fan motor to circulate cold air through the freezer or refrigerator compartments. It is a specific replacement part for theĀ RE-01WT52 series used in many Samsung “No-Frost” models.
