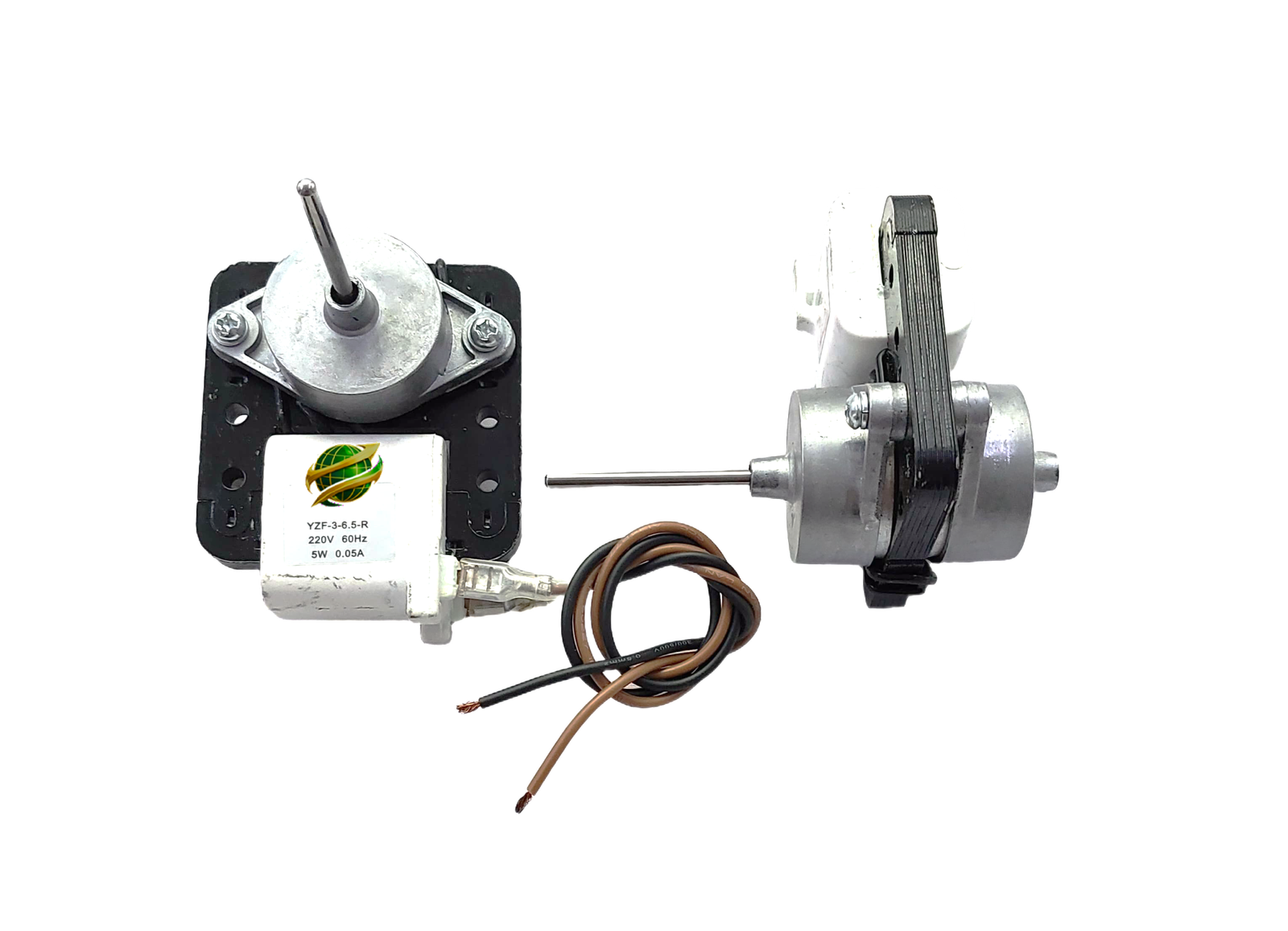

YZF 3-6.5R. 5W. 220V. Sharp REF. Evaporator Fan Motor.SHEM-013
Based on the image provided, here are the full details for the Sharp Refrigerator Evaporator Fan Motor.
Technical Specifications
- Model Number: SHEM-013 (Ref: YZF 3-6.5R)
- Voltage: 220V AC (Standard 220-240V, 50/60Hz)
- Power Output: 5 Watts (Input is typically around 22W)
- Current: 0.05A
- Rotation: YZF Series motors are typically shaded-pole induction motors, often used in radiators and evaporators.
- Frequency: 50/60 Hz
- Physical Features
- Motor Type: Shaded-pole AC motor with a round silver motor body and a black plastic C-frame housing.
- Shaft: Single long shaft (standard 32mm length is common for this type).
- Mounting: Integrated black plastic mounting bracket with four pre-drilled holes for secure placement in the refrigerator’s evaporator section.
- Wiring: Includes two insulated wire leads (brown and black) for direct connection to the refrigerator’s power supply.
Primary Application
- Sharp Refrigerators: Specifically designed as a replacement evaporator fan motor for Sharp and similar “No-Frost” refrigerator models to circulate cold air through the compartments.
Description
Description
Based on the image provided, here are the full details for the Sharp Refrigerator Evaporator Fan Motor.
Technical Specifications
- Model Number: SHEM-013 (Ref: YZF 3-6.5R)
- Voltage: 220V AC (Standard 220-240V, 50/60Hz)
- Power Output: 5 Watts (Input is typically around 22W)
- Current: 0.05A
- Rotation: YZF Series motors are typically shaded-pole induction motors, often used in radiators and evaporators.
- Frequency: 50/60 Hz
- Physical Features
- Motor Type: Shaded-pole AC motor with a round silver motor body and a black plastic C-frame housing.
- Shaft: Single long shaft (standard 32mm length is common for this type).
- Mounting: Integrated black plastic mounting bracket with four pre-drilled holes for secure placement in the refrigerator’s evaporator section.
- Wiring: Includes two insulated wire leads (brown and black) for direct connection to the refrigerator’s power supply.
Primary Application
- Sharp Refrigerators: Specifically designed as a replacement evaporator fan motor for Sharp and similar “No-Frost” refrigerator models to circulate cold air through the compartments.
