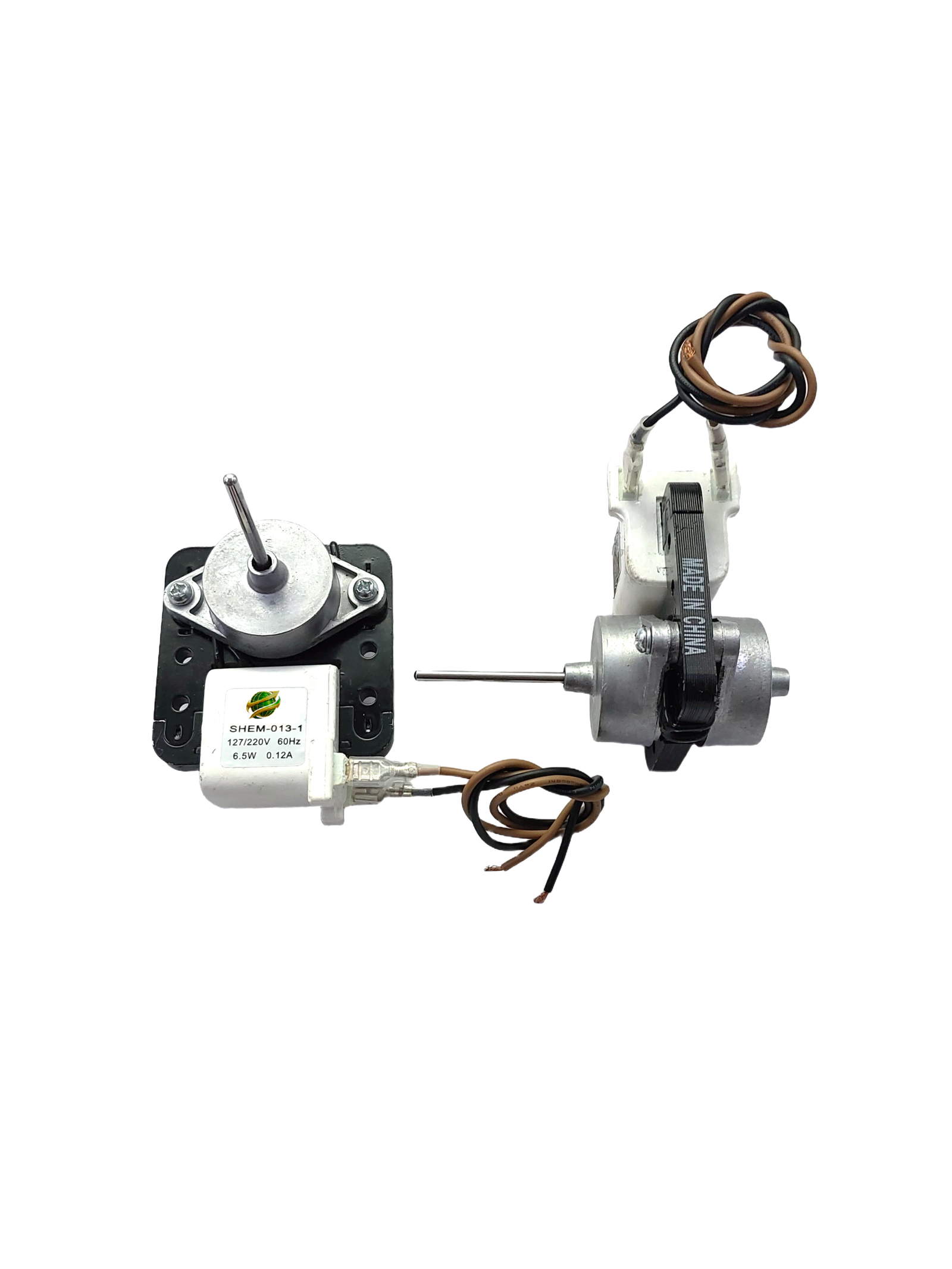

YZF 3-6.5R. 6W. 110V – 120V. Sharp REF. Evaporator Fan Motor. SHEM-013-1
Based on the image provided, here are the full details for thisĀ Sharp Refrigerator Evaporator Fan Motor (110V Version).
Technical Specifications
- Model Number: SHEM-013-1 (Ref: YZF 3-6.5R)
- Voltage:Ā 110V – 120V AC (Label shows 127/220V capability, but it is optimized for 110V systems)
- Power Output:Ā 6 Watts
- Current:Ā 0.12 Amps
- Frequency:Ā 60 Hz
- Origin: Made in China
Physical Features
- Motor Type:Ā Shaded-pole AC induction motor.
- Design:Ā Round silver motor body housed within a black plastic C-frame.
- Shaft:Ā Single long, smooth shaft designed to hold a plastic fan blade.
- Mounting:Ā Integrated black mounting bracket with four corner holes for standard “No-Frost” refrigerator installations.
- Wiring: Comes with two insulated wire leads (brown and black) for a direct power connection.
Primary Application
- Sharp Refrigerators:Ā Specifically used as a replacement evaporator fan motor to pull cold air from the freezer coils and distribute it throughout the unit. It is commonly found in older or imported 110V Sharp models.
Description
Description
Based on the image provided, here are the full details for thisĀ Sharp Refrigerator Evaporator Fan Motor (110V Version).
Technical Specifications
- Model Number: SHEM-013-1 (Ref: YZF 3-6.5R)
- Voltage:Ā 110V – 120V AC (Label shows 127/220V capability, but it is optimized for 110V systems)
- Power Output:Ā 6 Watts
- Current:Ā 0.12 Amps
- Frequency:Ā 60 Hz
- Origin: Made in China
Physical Features
- Motor Type:Ā Shaded-pole AC induction motor.
- Design:Ā Round silver motor body housed within a black plastic C-frame.
- Shaft:Ā Single long, smooth shaft designed to hold a plastic fan blade.
- Mounting:Ā Integrated black mounting bracket with four corner holes for standard “No-Frost” refrigerator installations.
- Wiring: Comes with two insulated wire leads (brown and black) for a direct power connection.
Primary Application
- Sharp Refrigerators:Ā Specifically used as a replacement evaporator fan motor to pull cold air from the freezer coils and distribute it throughout the unit. It is commonly found in older or imported 110V Sharp models.
