IS-3210SNPSA. 8W. 110V. Samsung Small Shaft REF. Evaporator Fan Motor. SRMS-010-1

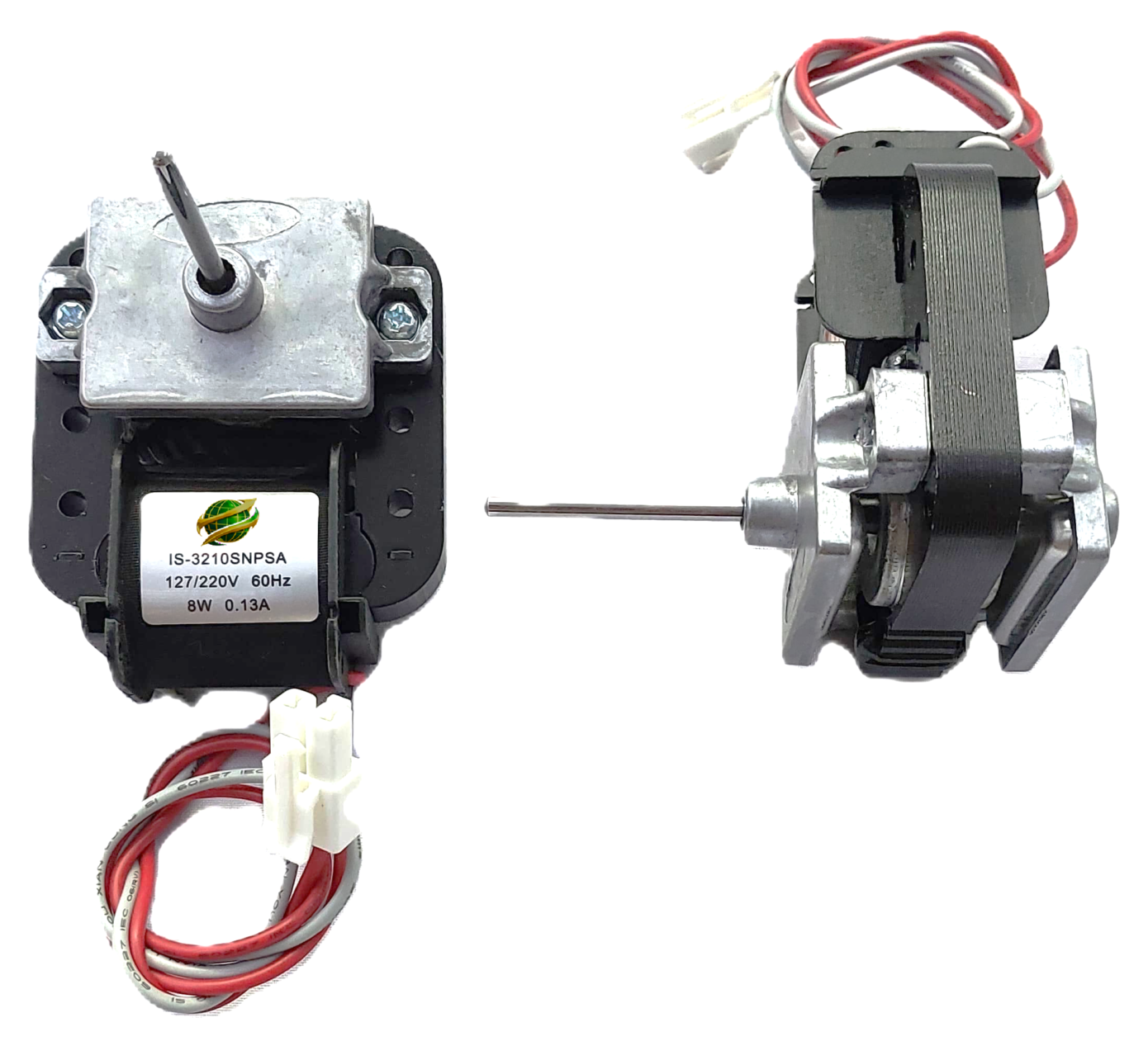

Based on the image provided, here are the full details for theĀ Samsung Small Shaft Refrigerator Evaporator Fan Motor (110V Version).
Technical Specifications
- Model Number: SRMS-010-1 (Ref: IS-3210SNPSA)
- Voltage:Ā 110V – 120V AC (Label shows 127/220V, but it is rated for 110V use)
- Power Output:Ā 8 Watts
- Current:Ā 0.13 Amps
- Frequency: 60 Hz
Physical Features
- Motor Type:Ā Heavy-duty C-frame shaded-pole AC motor.
- Shaft:Ā Features a “Small Shaft” design, standard for specific Samsung evaporator fan blades.
- Mounting:Ā Integrated black plastic mounting bracket with four corner holes for secure placement.
- Wiring: Includes a pre-installed white plastic 2-pin connector for “plug-and-play” installation, which prevents incorrect wiring.
Primary Application
- Samsung Refrigerators:Ā Primarily used as an evaporator fan motor to circulate cold air through the freezer and fresh food compartments. It is a common replacement part for Samsung models requiring theĀ IS-3210SNPSA motor.
Description
Description
Based on the image provided, here are the full details for theĀ Samsung Small Shaft Refrigerator Evaporator Fan Motor (110V Version).
Technical Specifications
- Model Number: SRMS-010-1 (Ref: IS-3210SNPSA)
- Voltage:Ā 110V – 120V AC (Label shows 127/220V, but it is rated for 110V use)
- Power Output:Ā 8 Watts
- Current:Ā 0.13 Amps
- Frequency: 60 Hz
Physical Features
- Motor Type:Ā Heavy-duty C-frame shaded-pole AC motor.
- Shaft:Ā Features a “Small Shaft” design, standard for specific Samsung evaporator fan blades.
- Mounting:Ā Integrated black plastic mounting bracket with four corner holes for secure placement.
- Wiring: Includes a pre-installed white plastic 2-pin connector for “plug-and-play” installation, which prevents incorrect wiring.
Primary Application
- Samsung Refrigerators:Ā Primarily used as an evaporator fan motor to circulate cold air through the freezer and fresh food compartments. It is a common replacement part for Samsung models requiring theĀ IS-3210SNPSA motor.
