TEETH Washing Machine Drum Spider : WMSP-002

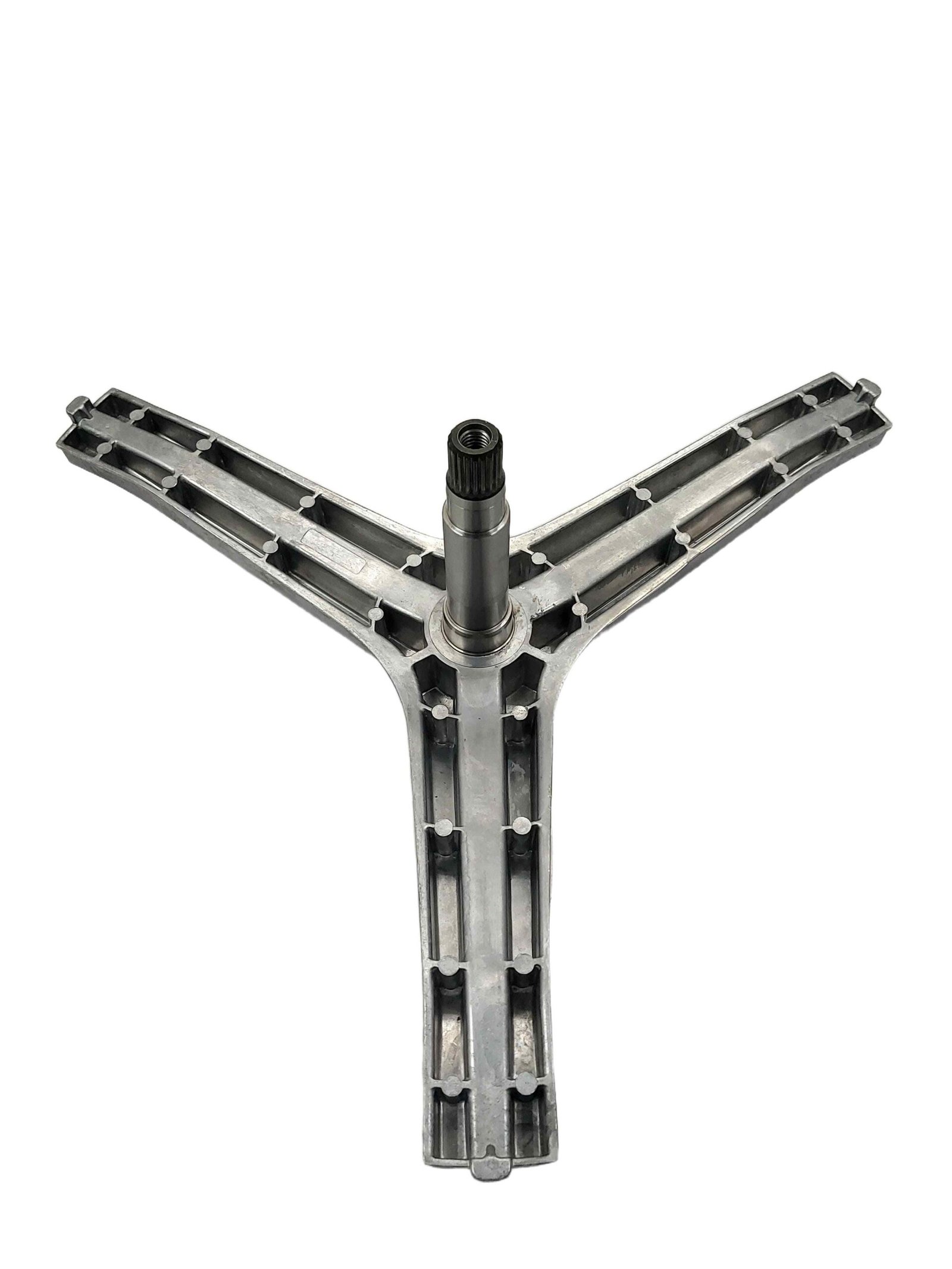

The provided image illustrates the WMSP-002 Washing Machine Drum Spider (also known as a flange shaft or drum tripod), a heavy-duty support component used to connect the wash drum to the drive system.
🔍 Technical Specifications
- Model Number: WMSP-002 (Compatible with Samsung OEM DC97-14370E).
- Dimensions:
- Shaft Height: 136.3 mm (specifically measured to the teeth/top of the shaft).
- Radius (D): 243 mm (distance from the center of the shaft to the tip of each arm).
- Bearing Compatibility: Typically fits 6205 and 6206 bearing sets with a 35 mm bushing diameter.
- Material: Cast aluminum alloy, designed for high-torque stability during rapid spin cycles.
⚙️ Compatibility & Usage
This part is specifically engineered for Samsung front-load washing machines (7kg and 8kg models) and is used to resolve issues such as extreme vibration, loud grinding noises, or drum wobbling.
- Supported Series: Samsung WD (Washer-Dryer) and WF series.
- Compatible Models: Fits a wide range of models including WF8802, WF8750, WD0804, WD80J, and WF0704.
Description
Description
The provided image illustrates the WMSP-002 Washing Machine Drum Spider (also known as a flange shaft or drum tripod), a heavy-duty support component used to connect the wash drum to the drive system.
🔍 Technical Specifications
- Model Number: WMSP-002 (Compatible with Samsung OEM DC97-14370E).
- Dimensions:
- Shaft Height: 136.3 mm (specifically measured to the teeth/top of the shaft).
- Radius (D): 243 mm (distance from the center of the shaft to the tip of each arm).
- Bearing Compatibility: Typically fits 6205 and 6206 bearing sets with a 35 mm bushing diameter.
- Material: Cast aluminum alloy, designed for high-torque stability during rapid spin cycles.
⚙️ Compatibility & Usage
This part is specifically engineered for Samsung front-load washing machines (7kg and 8kg models) and is used to resolve issues such as extreme vibration, loud grinding noises, or drum wobbling.
- Supported Series: Samsung WD (Washer-Dryer) and WF series.
- Compatible Models: Fits a wide range of models including WF8802, WF8750, WD0804, WD80J, and WF0704.
