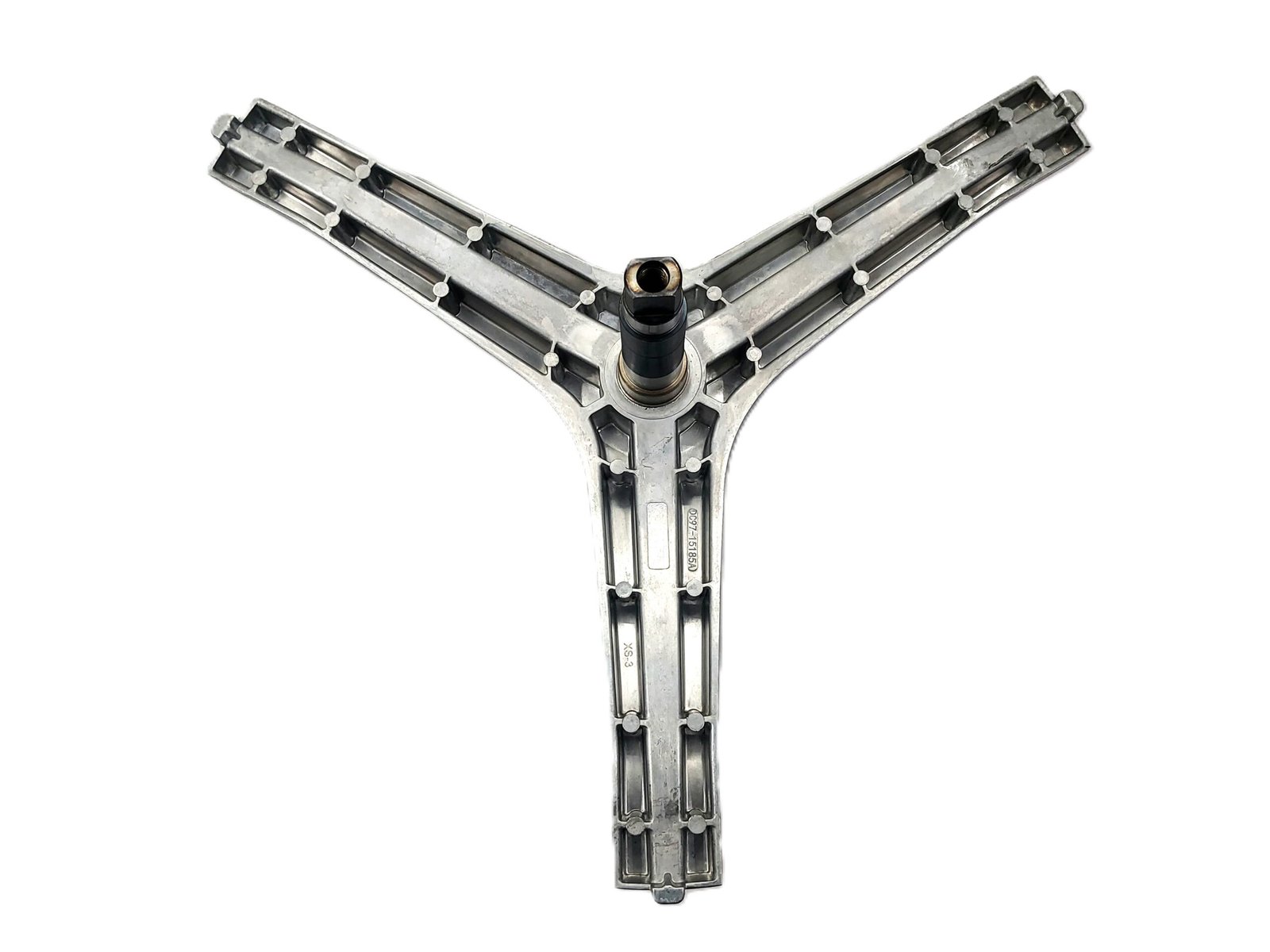

Washing Machine Drum Spider : WMSP-001
This image identifies the WMSP-001 Washing Machine Drum Spider, a high-quality replacement flange shaft assembly primarily used in automatic front-load washing machines.
🔍 Technical Specifications
- Model Number: WMSP-001
- Alternative Part Numbers: DC97-14370H, DC97-14370D.
- Dimensions:
- Height: 125 mm.
- Diameter: 243 mm.
- Shaft Type: Square head.
- Compatible Bearing Sizes: Often fits 6205/6206 bearing sets.
⚙️ Design & Material
- Construction: Heavy-duty aluminum alloy or cast iron, designed to withstand the high-torque stresses of spinning cycles.
- Function: This component, also called a tripod or flange shaft assembly, serves as the main support that connects the internal wash drum to the drive motor, allowing it to rotate smoothly.
Description
Description
This image identifies the WMSP-001 Washing Machine Drum Spider, a high-quality replacement flange shaft assembly primarily used in automatic front-load washing machines.
🔍 Technical Specifications
- Model Number: WMSP-001
- Alternative Part Numbers: DC97-14370H, DC97-14370D.
- Dimensions:
- Height: 125 mm.
- Diameter: 243 mm.
- Shaft Type: Square head.
- Compatible Bearing Sizes: Often fits 6205/6206 bearing sets.
⚙️ Design & Material
- Construction: Heavy-duty aluminum alloy or cast iron, designed to withstand the high-torque stresses of spinning cycles.
- Function: This component, also called a tripod or flange shaft assembly, serves as the main support that connects the internal wash drum to the drive motor, allowing it to rotate smoothly.
