Washing Machine Drum Spider : WMSP-006

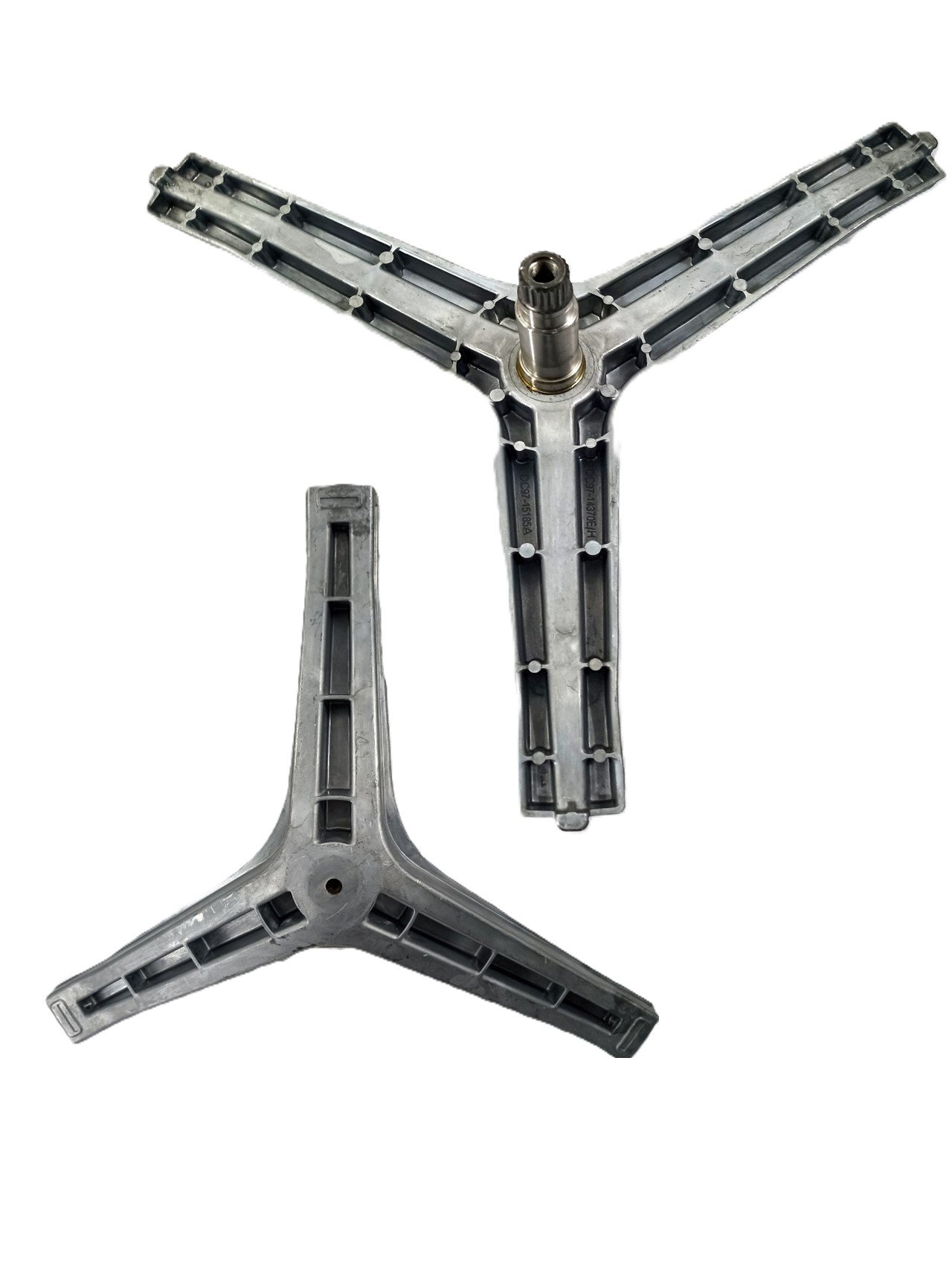

This image shows the WMSP-006 Washing Machine Drum Spider (also known as a drum tripod or flange shaft), a critical support component for the inner wash drum.
🔍 Technical Specifications
- Model Number: WMSP-006
- OEM Part Numbers: DC97-14370E/H and DC97-15185A
- Part Type:Â Washing Machine Drum Spider / Flange Shaft Assembly
- Design: Triple-arm tripod structure with a central splined drive shaft
⚙️ Design & Function
- Construction:Â Made from a high-strength cast aluminum alloy designed to support the weight of the water-filled drum and withstand high centrifugal forces during spin cycles.
- Shaft Features:Â The central shaft includes a specific splined tip to lock into the drive pulley and precisely machined sections for the water seal and dual bearings.
- Purpose:Â It serves as the primary mechanical link between the drive motor and the inner wash drum, ensuring stable and balanced rotation.
Description
Description
This image shows the WMSP-006 Washing Machine Drum Spider (also known as a drum tripod or flange shaft), a critical support component for the inner wash drum.
🔍 Technical Specifications
- Model Number: WMSP-006
- OEM Part Numbers: DC97-14370E/H and DC97-15185A
- Part Type:Â Washing Machine Drum Spider / Flange Shaft Assembly
- Design: Triple-arm tripod structure with a central splined drive shaft
⚙️ Design & Function
- Construction:Â Made from a high-strength cast aluminum alloy designed to support the weight of the water-filled drum and withstand high centrifugal forces during spin cycles.
- Shaft Features:Â The central shaft includes a specific splined tip to lock into the drive pulley and precisely machined sections for the water seal and dual bearings.
- Purpose:Â It serves as the primary mechanical link between the drive motor and the inner wash drum, ensuring stable and balanced rotation.
