Washing Machine Drum Spider : WMSP-007

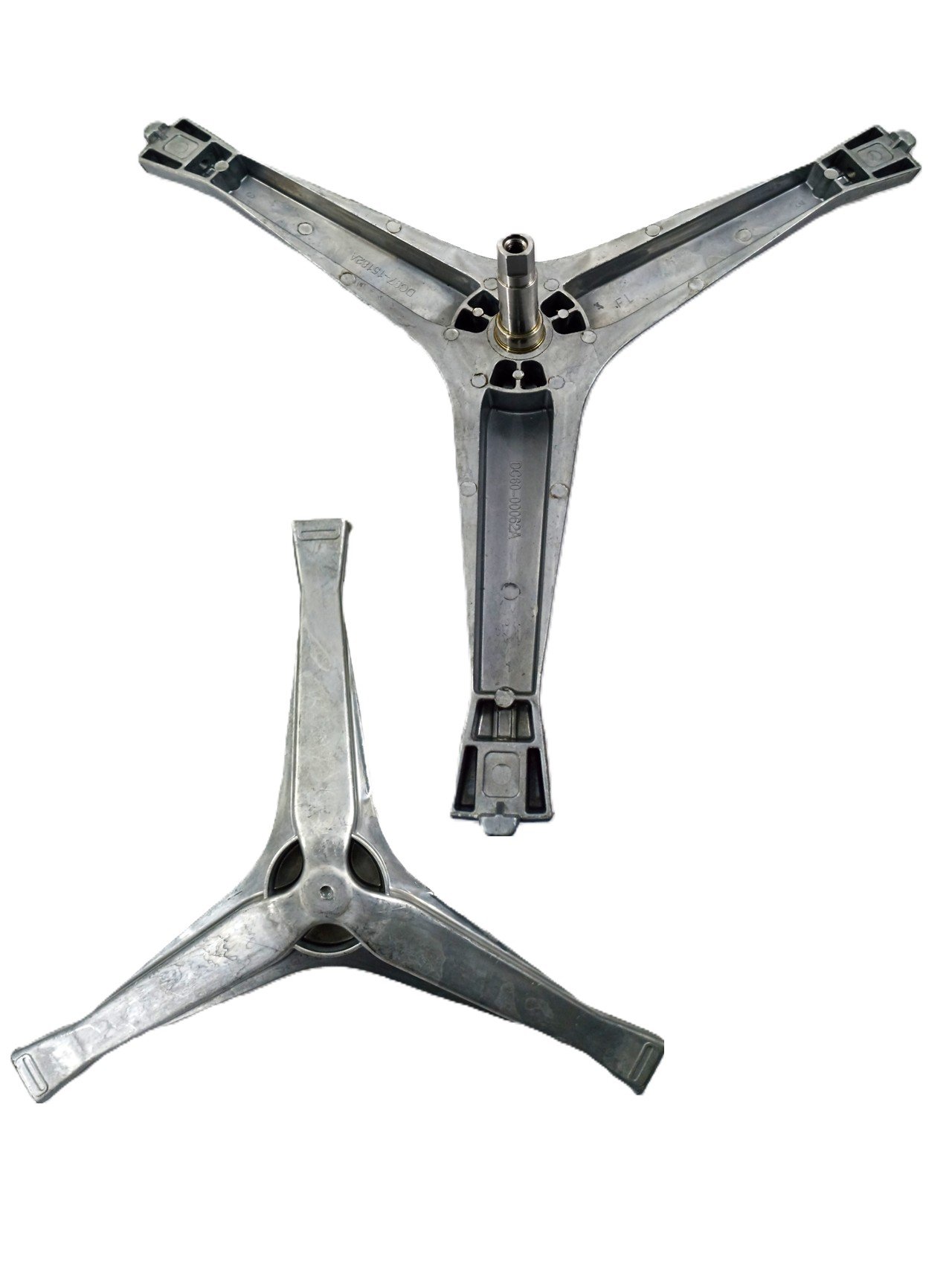

This image provides details for the WMSP-007 Washing Machine Drum Spider, a heavy-duty support flange used to connect the wash drum to the drive system.
š Technical Specifications
- Model Number: WMSP-007.
- OEM Part Numbers:Ā DC97-15182AĀ (Primary) andĀ DC60-00062AĀ (Compatible).
- Part Type:Ā Drum Spider / Flange Shaft Assembly.
- Design: Three-arm tripod structure with a central splined drive shaft.
āļø Design & Material
- Construction:Ā Made from a high-strength cast aluminum alloy, specifically engineered to withstand the high-torque stresses and centrifugal forces of the spin cycle.
- Function:Ā This component acts as the backbone of the inner drum, ensuring it stays centered and balanced while rotating.
- Shaft Detail: The central shaft features a specific splined end to lock into the motor drive pulley and precisely machined surfaces for bearing and water seal fitment.
Description
Description
This image provides details for the WMSP-007 Washing Machine Drum Spider, a heavy-duty support flange used to connect the wash drum to the drive system.
š Technical Specifications
- Model Number: WMSP-007.
- OEM Part Numbers:Ā DC97-15182AĀ (Primary) andĀ DC60-00062AĀ (Compatible).
- Part Type:Ā Drum Spider / Flange Shaft Assembly.
- Design: Three-arm tripod structure with a central splined drive shaft.
āļø Design & Material
- Construction:Ā Made from a high-strength cast aluminum alloy, specifically engineered to withstand the high-torque stresses and centrifugal forces of the spin cycle.
- Function:Ā This component acts as the backbone of the inner drum, ensuring it stays centered and balanced while rotating.
- Shaft Detail: The central shaft features a specific splined end to lock into the motor drive pulley and precisely machined surfaces for bearing and water seal fitment.
