Washing Machine Spider : WMSP-008

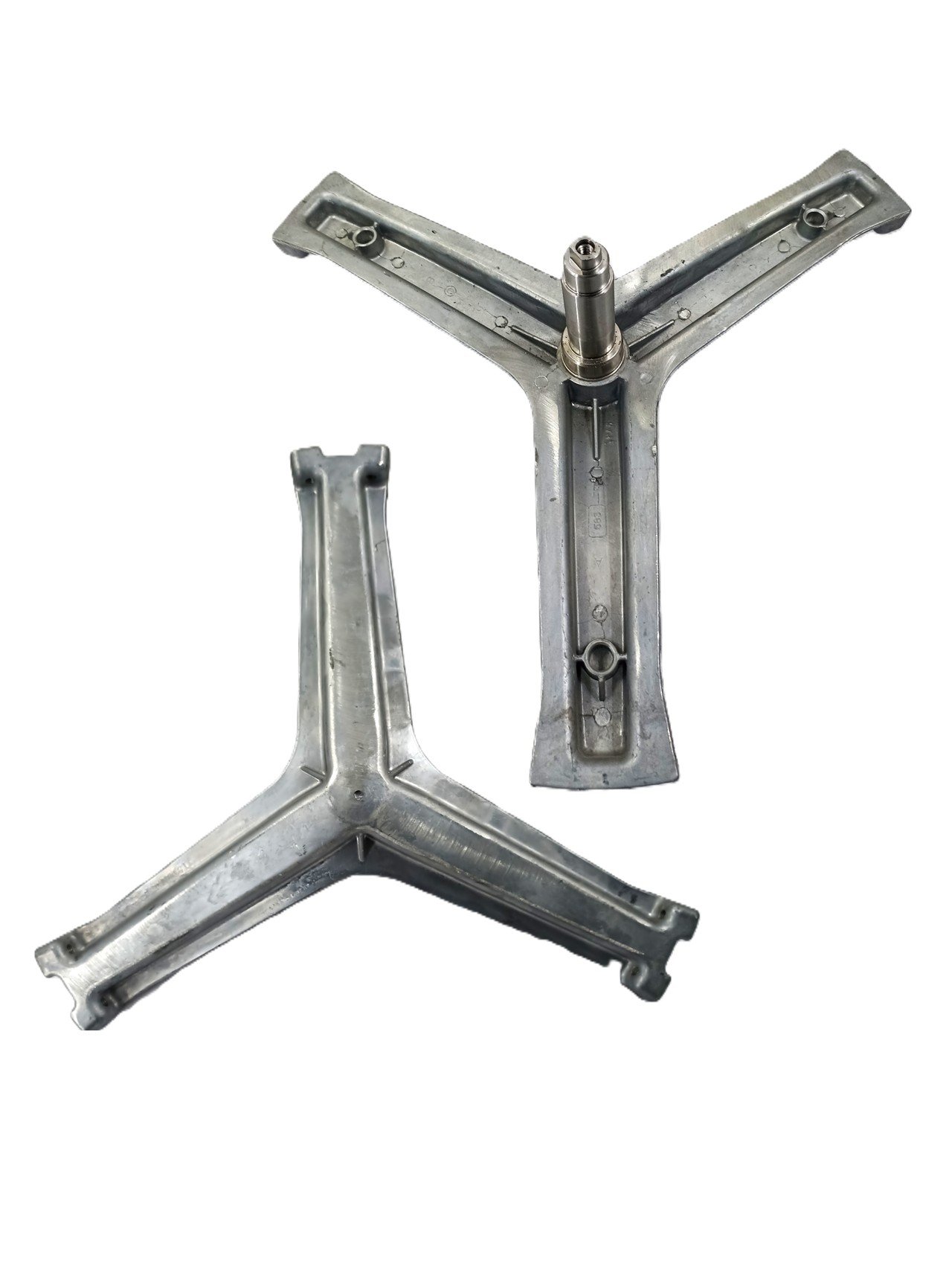

This image identifies the WMSP-008 Washing Machine Spider, a critical flange shaft assembly used to support the wash drum in automatic front-load washing machines.
🔍 Technical Specifications
- Model Number: WMSP-008
- Part Name: Washing Machine Spider Y1901
- Compatible Part Number: Sanyo A-583-13
- Design: Three-arm tripod (spider) structure with a central splined drive shaft.
⚙️ Design & Function
- Construction: Manufactured from high-strength cast aluminum alloy to withstand high centrifugal forces during the spin cycle.
- Purpose: It connects the inner wash drum to the drive motor and pulley, providing structural support and ensuring the drum remains balanced during rotation.
- Shaft Detail: The central shaft features a specific splined end for the drive pulley and precisely machined surfaces for the water seal and dual bearings.
Description
Description
This image identifies the WMSP-008 Washing Machine Spider, a critical flange shaft assembly used to support the wash drum in automatic front-load washing machines.
🔍 Technical Specifications
- Model Number: WMSP-008
- Part Name: Washing Machine Spider Y1901
- Compatible Part Number: Sanyo A-583-13
- Design: Three-arm tripod (spider) structure with a central splined drive shaft.
⚙️ Design & Function
- Construction: Manufactured from high-strength cast aluminum alloy to withstand high centrifugal forces during the spin cycle.
- Purpose: It connects the inner wash drum to the drive motor and pulley, providing structural support and ensuring the drum remains balanced during rotation.
- Shaft Detail: The central shaft features a specific splined end for the drive pulley and precisely machined surfaces for the water seal and dual bearings.
